Name: Eaton NZMB1-A100 Circuit breaker 1 pc(s) Adjustment range (amperage): 80 - 100 A Switching voltage (max.): 440 V AC
Brand: Eaton
SKU: 2306991
Availability: BackOrder

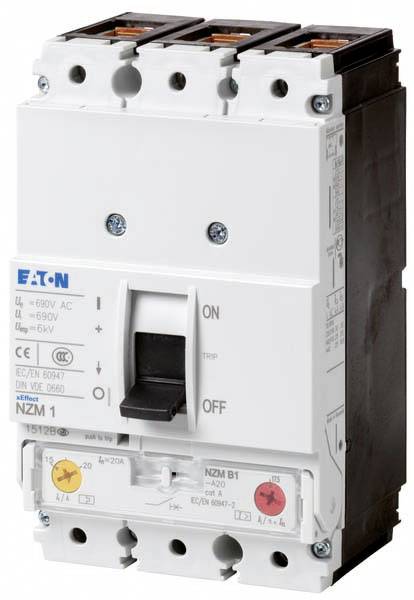

A three-pole Eaton circuit breaker with switching positions 'ON' and 'OFF', technical specifications and safety markings visible.

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

100 A

Connection

Clamp

Type

NZMB1-A100

Amperage adjustment range (min.)

80 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 23 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 475.00 / piece)

€ 475.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of connection Main circuit: Frame terminal
Type of actuator: Rocker arm
Rated current IU: 100 A
Setting range of the instantaneous short-circuit release: 600 A - 1000 A
DIN rail mounting optional: Yes
Complete unit with protection unit: Yes
Position of connection for main circuit: Front

Product type: Circuit breaker

Type: NZMB1-A100

Amperage adjustment range (min.): 80 A

Amperage adjustment range (max.): 100 A

Adjustment range (amperage): 80 - 100 A

No. of pins: 3-pin

Switching voltage (max.): 440 V AC

Compatible with: Eaton

Mounting type: Fixed

Connection: Clamp

: IP20

Content: 1 pc(s)

RoHS-compliant: Yes

Factory colour: Multicolour

: 0

: 0

: 100 A

: FALSE

: 3

: 80-100 A

: 0

: 440-440 V

: 21.9 W

: IP20

: Front side

: FALSE

: Frame clamp

: Rocker lever

: FALSE

: 25 kA

: 0-0 A

: 600-1000 A

: FALSE

: FALSE

: FALSE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: yes
