Name: Eaton NZMH3-A400 Circuit breaker 1 pc(s) Adjustment range (amperage): 320 - 400 A Switching voltage (max.): 690 V AC
Brand: Eaton
SKU: 2307007
Availability: BackOrder

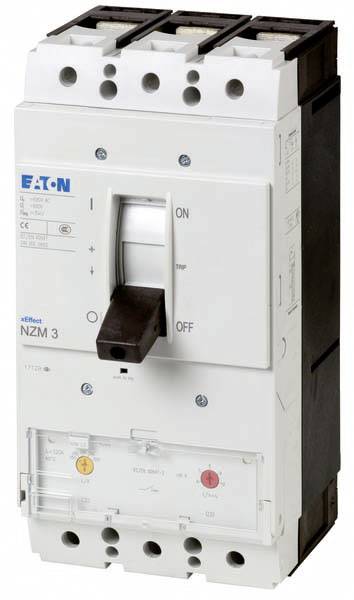

A white Eaton circuit breaker with the inscription 'NZM 3', switch in the 'OFF' position. Main component for electrical systems.

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

400 A

Connection

Screws

Type

NZMH3-A400

Amperage adjustment range (min.)

320 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 23 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2,625.00 / piece)

€ 2,625.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Actuator type: Rocker arm
Rated continuous current IU: 400 A
Setting range of the instantaneous short-circuit release: 2400 A - 4000 A
Complete unit with protection unit: Yes
Motor drive optional: Yes
Position of the connection for main circuit: Front

Product type: Circuit breaker

Type: NZMH3-A400

Amperage adjustment range (min.): 320 A

Amperage adjustment range (max.): 400 A

Adjustment range (amperage): 320 - 400 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Fixed

Connection: Screws

: IP20

Content: 1 pc(s)

RoHS-compliant: Yes

Factory colour: Multicolour

: 0

: 0

: 400 A

: FALSE

: 3

: 320-400 A

: 0

: 690-690 V

: IP20

: Front side

: FALSE

: Screw connection

: Rocker lever

: FALSE

: 150 kA

: 0-0 A

: 2400-4000 A

: FALSE

: FALSE

: TRUE

: Built-in device fixed built-in technique

: FALSE

: TRUE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2307007 Eaton NZMH3-A400 Circuit breaker 1 pc(s) Adjustment range (amperage): 320 - 400 A Switching voltage (max.): 690 V AC

User & Safety Instructions

User & Safety Instructions 2307007 Eaton NZMH3-A400 Circuit breaker 1 pc(s) Adjustment range (amperage): 320 - 400 A Switching voltage (max.): 690 V AC
