Name: Eaton NZMH2-A125-BT-NA Circuit breaker 1 pc(s) Adjustment range (amperage): 100 - 125 A Switching voltage (max.): 690 V
Brand: Eaton
SKU: 2307004
Availability: BackOrder

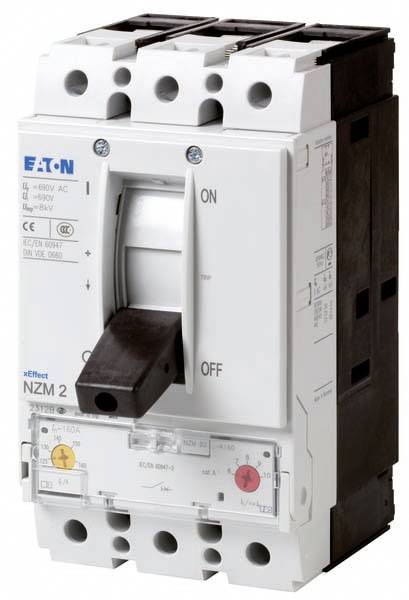

A three-pole circuit breaker by Eaton, Model NZM 2, shows 'ON' and 'OFF' positions. For electrical switching systems.

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

125 A

Connection

Clamp

Type

NZMH2-A125-BT-NA

Amperage adjustment range (min.)

100 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 4 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,475.00 / piece)

€ 1,475.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of connection Main circuit: Frame terminal
Type of actuator: Rocker arm
Rated current IU: 125 A
Setting range of the instantaneous short-circuit release: 750 A - 1250 A
DIN rail mounting optional: Yes
Complete unit with protection unit: Yes
Motor drive optional: Yes
Position of connection for main circuit: Front

Product type: Circuit breaker

Type: NZMH2-A125-BT-NA

Amperage adjustment range (min.): 100 A

Amperage adjustment range (max.): 125 A

Adjustment range (amperage): 100 - 125 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Fixed

Connection: Clamp

: IP20

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 125 A

: FALSE

: 3

: 100-125 A

: 0

: 690-690 V

: 27.6 W

: IP20

: Front side

: FALSE

: Frame clamp

: Rocker lever

: FALSE

: 150 kA

: 0-0 A

: 750-1250 A

: FALSE

: FALSE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: yes
