Name: Eaton NZMH3-AE630 Circuit breaker 1 pc(s) Adjustment range (amperage): 630 - 630 A Switching voltage (max.): 690 V AC
Brand: Eaton
SKU: 2307010
Availability: BackOrder

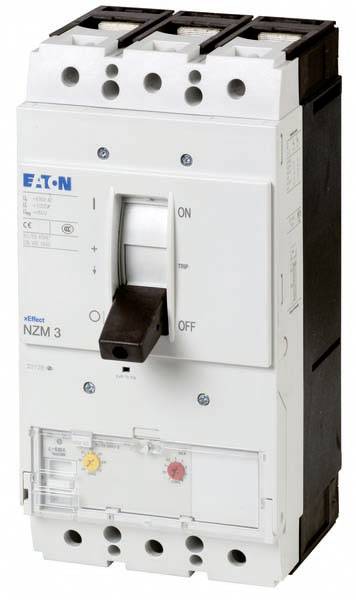

A three-pole Eaton circuit breaker with 'ON' and 'OFF' markings on the switch. Model: NZM3.

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

630 A

Connection

Screws

Type

NZMH3-AE630

Amperage adjustment range (min.)

630 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 23 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3,565.00 / piece)

€ 3,565.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Actuator type: Rocker arm
Rated continuous current IU: 630 A
Setting range of the instantaneous short-circuit release: 1260 A - 5040 A
Complete unit with protection unit: Yes
Motor drive optional: Yes
Position of the connection for main circuit: Front

Product type: Circuit breaker

Type: NZMH3-AE630

Amperage adjustment range (min.): 630 A

Amperage adjustment range (max.): 630 A

Adjustment range (amperage): 630 - 630 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with: Eaton

Mounting type: Fixed

Connection: Screws

: IP20

Content: 1 pc(s)

RoHS-compliant: Yes

Factory colour: Multicolour

: 0

: 0

: 630 A

: FALSE

: 3

: 315-630 A

: 0

: 690-690 V

: IP20

: Front side

: FALSE

: Screw connection

: Rocker lever

: FALSE

: 150 kA

: 0-0 A

: 1260-5040 A

: FALSE

: FALSE

: TRUE

: Built-in device fixed built-in technique

: FALSE

: TRUE

UKCA: yes
