Name: Eaton NZMN3-4-AE630 Circuit breaker 1 pc(s) Adjustment range (amperage): 630 - 630 A Switching voltage (max.): 690 V AC
Brand: Eaton
SKU: 2307040
Availability: BackOrder

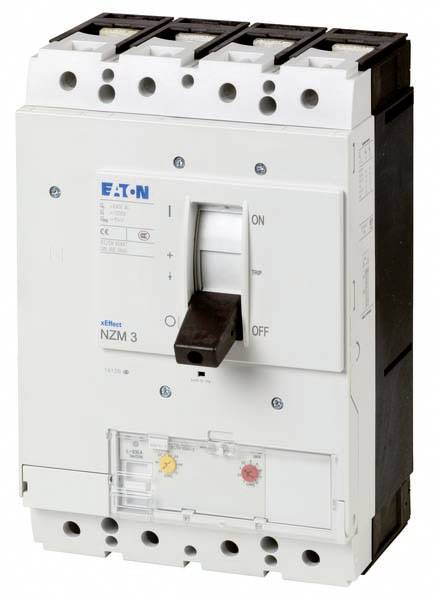

An Eaton circuit breaker with 'ON' and 'OFF' labelling. It has a white casing and a black switch in the centre.

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

630 A

Connection

Screws

Packaging type

Piece

Type

NZMN3-4-AE630

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 23 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3,915.00 / piece)

€ 3,915.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Actuator type: Rocker arm
Rated continuous current IU: 630 A
Setting range of the instantaneous short-circuit release: 1260 A - 5040 A
Complete unit with protection unit: Yes
Motor drive optional: Yes
Position of the connection for main circuit: Front

Packaging type: Piece

Product type: Circuit breaker

Type: NZMN3-4-AE630

Amperage adjustment range (min.): 630 A

Amperage adjustment range (max.): 630 A

Adjustment range (amperage): 630 - 630 A

No. of pins: 4-pin

Switching voltage (max.): 690 V AC

Mounting type: Fixed

Connection: Screws

: IP20

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 630 A

: FALSE

: 4

: 315-630 A

: 0

: 690-690 V

: IP20

: Front side

: FALSE

: Screw connection

: Rocker lever

: FALSE

: 50 kA

: 0-0 A

: 1260-5040 A

: FALSE

: FALSE

: TRUE

: Built-in device fixed built-in technique

: FALSE

: TRUE

UKCA: yes
