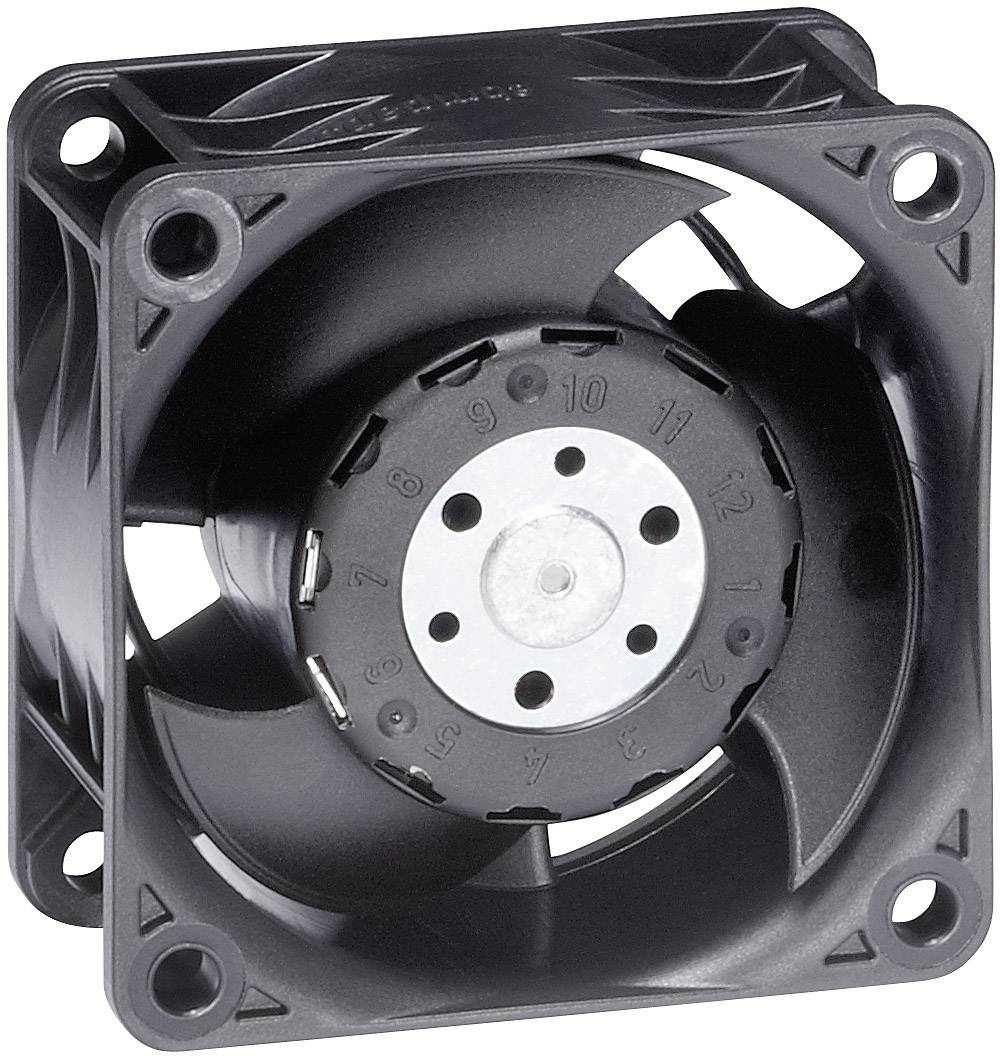

EBM Papst 612 J/2H Axial fan 12 V DC 70 m³/h (L x W x H) 60 x 60 x 32 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
12 V DC
Type of bearing
Ball bearing
Air flow rate
70 m³/h
Material
Plastic
Datasheet (PDF)
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
Only 9 Piece(s) available
Highlights & Details
Axial Fan 12 V
- With ball bearing
- Dim. 60 x 60 x 32mm.
- 70m³/h.
- 7 - 13.6V
Technical specifications
- Product type
Axial fan
- Type
612 J/2H
- Nominal voltage
12 V DC
- Max. current consumption
1100 mA
- Type of bearing
Ball bearing
- Rotational speed
11700 U/min
- Air flow rate
70 m³/h
- Factory colour
Black
- Material
Plastic
- Weight
100 g
- Min. temperature
-20 °C
- Max. temperature
70 °C
- Length
60 mm
- Width
60 mm
- Height
32 mm
- Dim
(L x W x H) 60 x 60 x 32 mm
Documents & Downloads
Datasheet
Datasheet 560890 EBM Papst 612 J/2H Axial fan 12 V DC 70 m³/h (L x W x H) 60 x 60 x 32 mm
User & Safety Instructions
User & Safety Instructions 560890 EBM Papst 612 J/2H Axial fan 12 V DC 70 m³/h (L x W x H) 60 x 60 x 32 mm
Description
Axial fan with variable Voltage range from 7 - 13,6 V / DC. The Housing and Impeller are made of Plastic. A small Noise level development and high Power densities mark these typical Fan Contrary to the predecessor, this fan a tacho-signal.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Axial Fans
