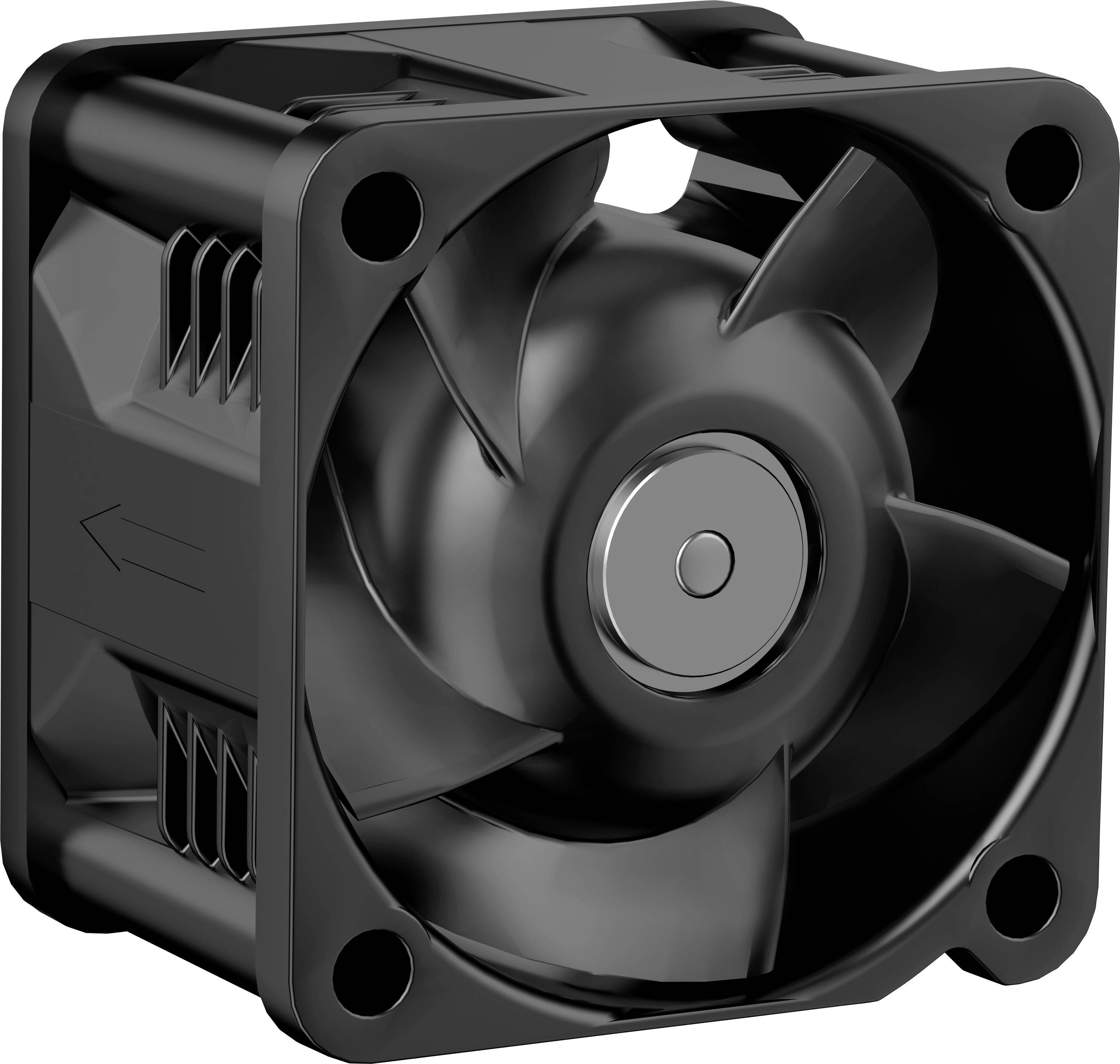

EBM Papst AxiForce AF40-00480 24V 19.000 Axial fan 24 V DC 39 m³/h (L x W x H) 40 x 40 x 28 mm
Part number:
Item no:
Product type
Axial fan
Nominal voltage
24 V DC
No. of wires
2
Power
7.8 W
Type of bearing
Ball bearing
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Highlights & Details
AxiForce AF40-00480 24V 19,000
- Extremely powerful axial fan with a rated speed of 19,000 1 rpm
- High volume flow of up to 39 m³/h with compact design
- Built-in blocking protection with automatic restart (Auto restart)
- Robust housing made of plastic with a reliable ball bearing system
Technical specifications
- Polarity reversal protection by rectifier diode
- Product type
Axial fan
- Type
AxiForce AF40-00480 24V 19.000
- Nominal voltage
24 V DC
- No. of wires
2
- Min. operating voltage
15 V DC
- Max. operating voltage
30 V DC
- Operating voltage
15 - 30 V DC
- Max. current consumption
330 mA
7.8 W
- Type of bearing
Ball bearing
- Rotational speed
19000 U/min
- Noise emission (max.)
55 dBa
- Air flow rate
39 m³/h
- Connection
Braid
- Cable length
31 cm
- Pressure (max.)
775 Pa
- Factory colour
Black
- Material
Plastic
- Compatible with (details)
Mounting device for the conveyance of air
75000 h
- Weight
48
IP20
- Min. temperature
-20 °C
- Max. temperature
70 °C
- Length
40 mm
- Width
40 mm
- Height
28 mm
- Dim
(L x W x H) 40 x 40 x 28 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3765826 EBM Papst AxiForce AF40-00480 24V 19.000 Axial fan 24 V DC 39 m³/h (L x W x H) 40 x 40 x 28 mm
User & Safety Instructions
User & Safety Instructions 3765826 EBM Papst AxiForce AF40-00480 24V 19.000 Axial fan 24 V DC 39 m³/h (L x W x H) 40 x 40 x 28 mm
Description
The EBM-Papst AxiForce40 is a high-performance axial fan for 24 V DC-applications, which was developed for maximum cooling power in the smallest of spaces. With an impressive speed of 19,000 1 rpm and a static pressure of up to 775 Pa, the Ideal is suitable for demanding industrial and IT applications. The long service life of 75,000 hours at 40°C guarantees a reliable continuous operation.
This text is machine translated.
This text is machine translated.
Scope of delivery
- AxiForce AF40-00480
