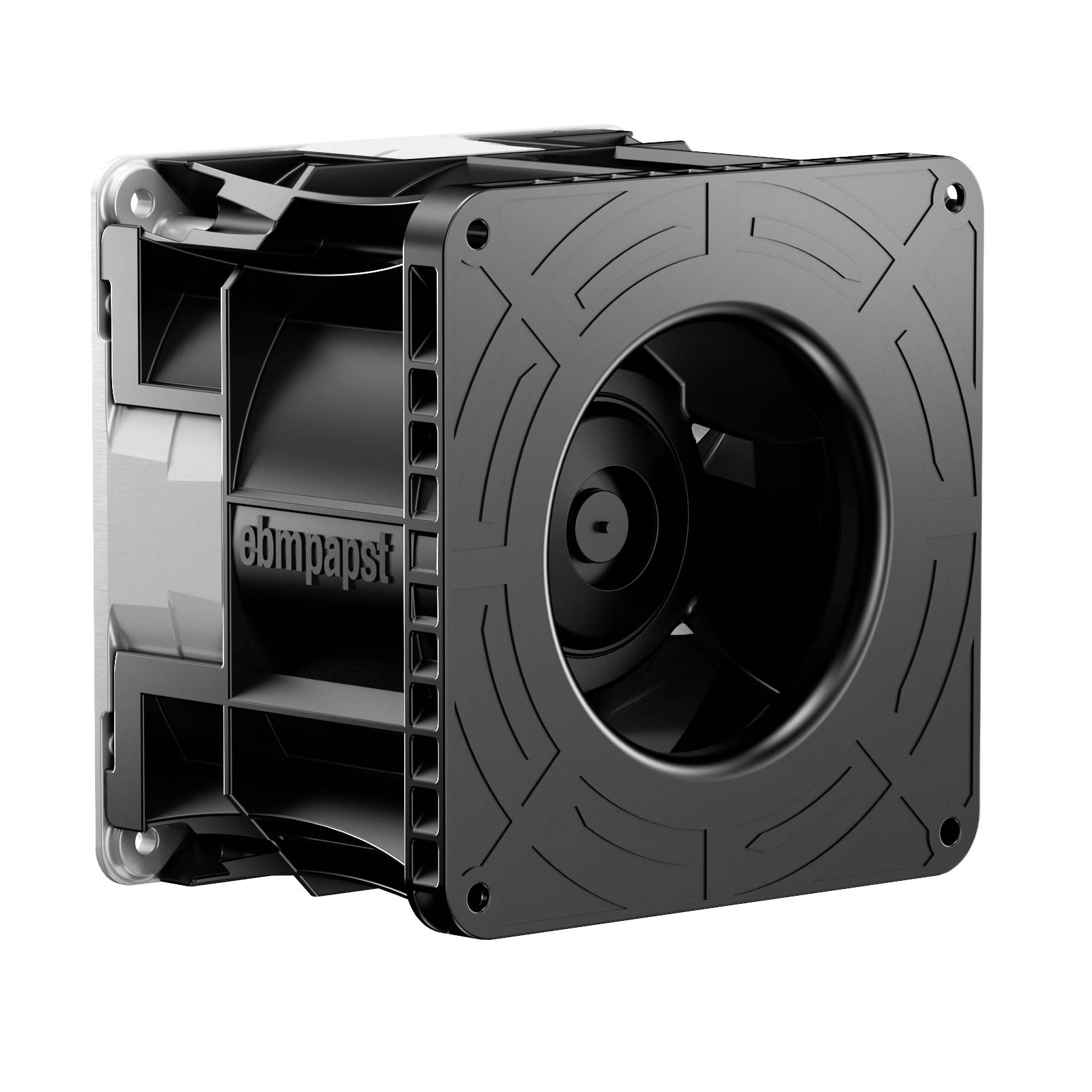

EBM Papst DF120-00198 48V O/2 17.200 Li.400 Diagonal compact fan 48 V DC 680 m³/h (Ø x H) 119.95 mm x 119 mm
Part number:
Item no:
Product type
Diagonal compact fan
Nominal voltage
48 V DC
No. of wires
4
Power
500 W
Type of bearing
Ball bearing
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 318.49 / piece)
€
Highlights & Details
EBM Papst DF120-00198 48V O/2 17.200 Li.400 Diagonal compact fan 48 V DC 680 m³/h (Ø x H) 119.95 mm x 119 mm
- Direct voltage fan available in 48VDC
- New single-stage principle with highly innovative aerodynamic design
- Exceptionally pressure oriented at outstanding noise values
- Conveyor direction: Blowing over bars
- Direction of rotation: Seen on the right of the rotor
- All mounting positions permitted
- Bearing type: Ball bearing
- Operating mode: Continuous operation (S1)
- IP protection class IP20
- Electrical connection: Freshly designed strands
- Electrical protection class III.
- Ready for Restart (R4R) enables safe start-up with external drive
- Housing: Combined (metal flange, plastic inlet nozzle)
- Fan wheel: Plastic
Technical specifications
- Equipped with Multi-Option Input (PWM/Analogue)
- Tacho signal
- Alarm Output and R4R (Ready for Restart)
- Product type
Diagonal compact fan
- Type
DF120-00198 48V O/2 17.200 Li.400
- Nominal voltage
48 V DC
- No. of wires
4
- Min. operating voltage
36 V DC
- Max. operating voltage
60 V DC
- Operating voltage
36 - 60 V DC
- Max. current consumption
10.4 A
500 W
- Type of bearing
Ball bearing
- Rotational speed
17250 U/min
- Noise emission (max.)
83.5 dBa
- Air flow rate
680 m³/h
- Connection
Braid
- Cable length
40 cm
- Pressure (max.)
2500 Pa
- Factory colour
Black
- Material
Metal
Plastic
- Compatible with (details)
High performance server cooling
Cloud infrastructure
Industrial electronic cooling
70000 h
- Weight
930 g
IP20
- Min. temperature
-25 °C
- Max. temperature
70 °C
- (Ø)
119.95 mm
- Length
86 mm
- Width
119 mm
- Height
119 mm
- Dim
(Ø x H) 119.95 mm x 119 mm
Documents & Downloads
Datasheet
Datasheet 3739342 EBM Papst DF120-00198 48V O/2 17.200 Li.400 Diagonal compact fan 48 V DC 680 m³/h (Ø x H) 119.95 mm x 119 mm
User & Safety Instructions
User & Safety Instructions 3739342 EBM Papst DF120-00198 48V O/2 17.200 Li.400 Diagonal compact fan 48 V DC 680 m³/h (Ø x H) 119.95 mm x 119 mm
Description
Our DC product portfolio offers a wide range of different sizes and performance classes to suit the requirements of your individual application. All fan types are equipped with efficient, brushless motor technology, electronically commutation drive and electronic reverse polarity protection.
They convince by a high life expectancy and an outstanding efficiency. This reduces the heat load and thus ensures highest efficiency and a long life.
By default, all fan types are designed in IP20.
This text is machine translated.
They convince by a high life expectancy and an outstanding efficiency. This reduces the heat load and thus ensures highest efficiency and a long life.
By default, all fan types are designed in IP20.
This text is machine translated.
Features
- Moisture protection
- Predictive Maintenance (FanCheck)
- Housing with earthing lug for M4 x 8 screw
