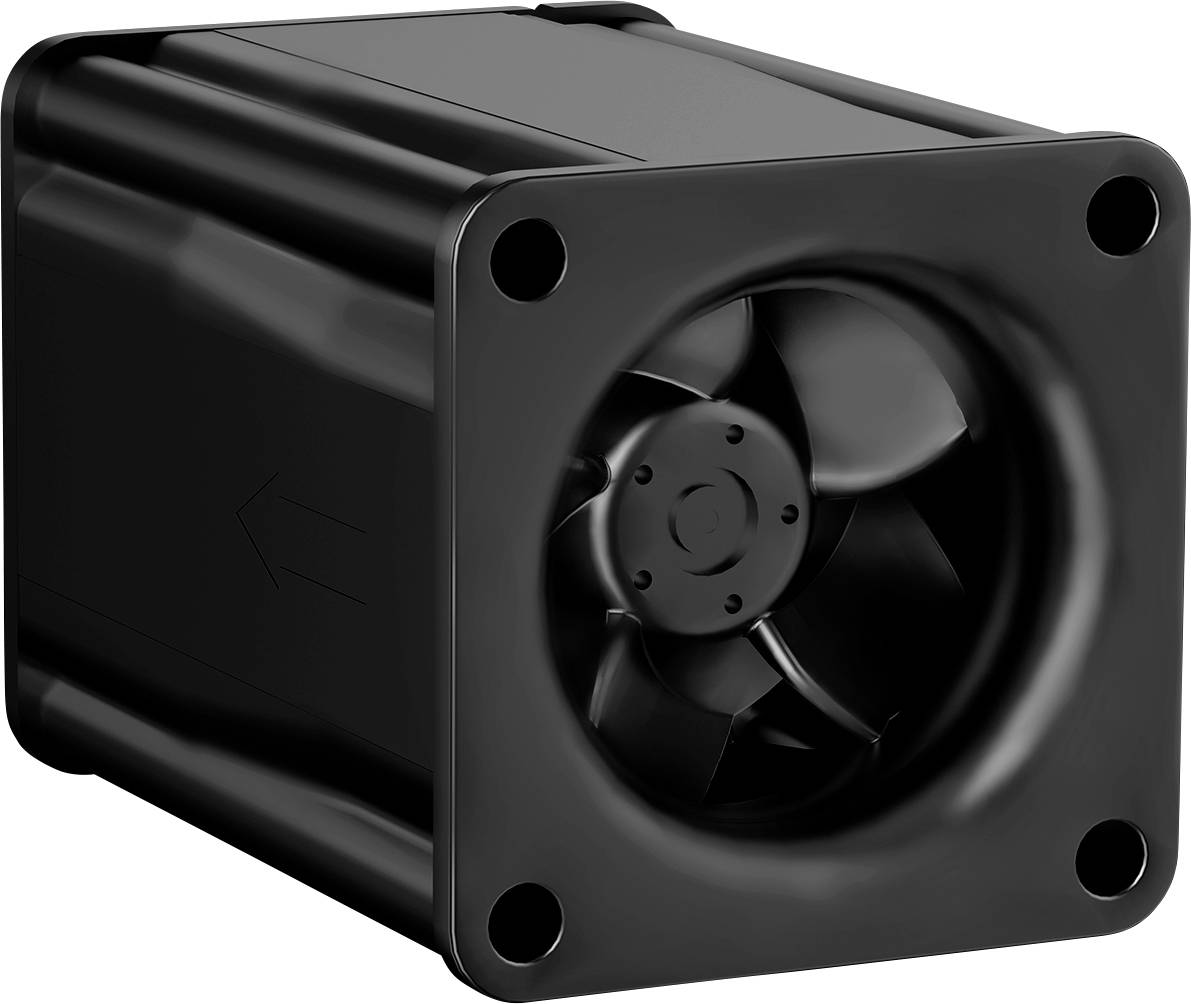

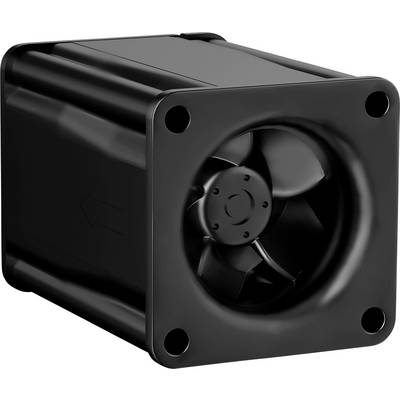

EBM Papst DF40-01208 12V P/2 LK5 40.000 Diagonal compact fan 12 V DC 55 m³/h (L x W x H) 56 x 40 x 40 mm
Part number:
Item no:
Product type
Diagonal compact fan
Nominal voltage
12 V DC
No. of wires
4
Power
25.6 W
Type of bearing
Ball bearing
Datasheet (PDF)
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
Highlights & Details
Diagonal fan, 40 mm edge measurement, 12 VDC
- Design: Direct-voltage fan 12Vdc
- Innovative aerodynamic concept
- Powerful, but still efficient and quiet as compared to the conventional double-stage solutions
- Operating mode: Continuous operation (S1)
Technical specifications
- PWM setpoint input (1–30 kHz)
- Tacho output (2 pulse/revolution)
- Product type
Diagonal compact fan
- Type
DF40-01208 12V P/2 LK5 40.000
- Nominal voltage
12 V DC
- No. of wires
4
- Min. operating voltage
8 V DC
- Max. operating voltage
13.8 V DC
- Operating voltage
8 - 13.8 V DC
- Max. current consumption
2.130 mA
25.6 W
- Type of bearing
Ball bearing
- Rotational speed
40.000 U/min
- Noise emission (max.)
64 dBa
- Air flow rate
55 m³/h
- Connection
Braid
- Cable length
31 cm
- Pressure (max.)
2.375 Pa
- Factory colour
Black
- Material
Plastic
70,000 h
- Weight
74 g
IP20
- Min. temperature
-20 °C
- Max. temperature
70 °C
- Length
56 mm
- Width
40 mm
- Height
40 mm
- Dim
(L x W x H) 56 x 40 x 40 mm
Documents & Downloads
Datasheet
Datasheet 3739334 EBM Papst DF40-01208 12V P/2 LK5 40.000 Diagonal compact fan 12 V DC 55 m³/h (L x W x H) 56 x 40 x 40 mm
User & Safety Instructions
User & Safety Instructions 3739334 EBM Papst DF40-01208 12V P/2 LK5 40.000 Diagonal compact fan 12 V DC 55 m³/h (L x W x H) 56 x 40 x 40 mm
Description
Our DC product portfolio offers a wide range of different sizes and performance classes to suit the requirements of your individual application. All fan types are equipped with efficient, brushless motor technology, electronically commutation drive and electronic reverse polarity protection.
They convince by a high life expectancy and an outstanding efficiency. This reduces the heat load and thus ensures highest efficiency and a long life.
By default, all fan types are designed in IP20.
This text is machine translated.
They convince by a high life expectancy and an outstanding efficiency. This reduces the heat load and thus ensures highest efficiency and a long life.
By default, all fan types are designed in IP20.
This text is machine translated.
Features
- Housing: Plastic
- Fan wheel: Plastic
- DIN EN 62368, UL507, CSA C22.2 No. 113, CCC, CE, UKCA
