econ connect PZ28AB IC socket Number of pins: 28 Precision contacts 1 pc(s) Tube

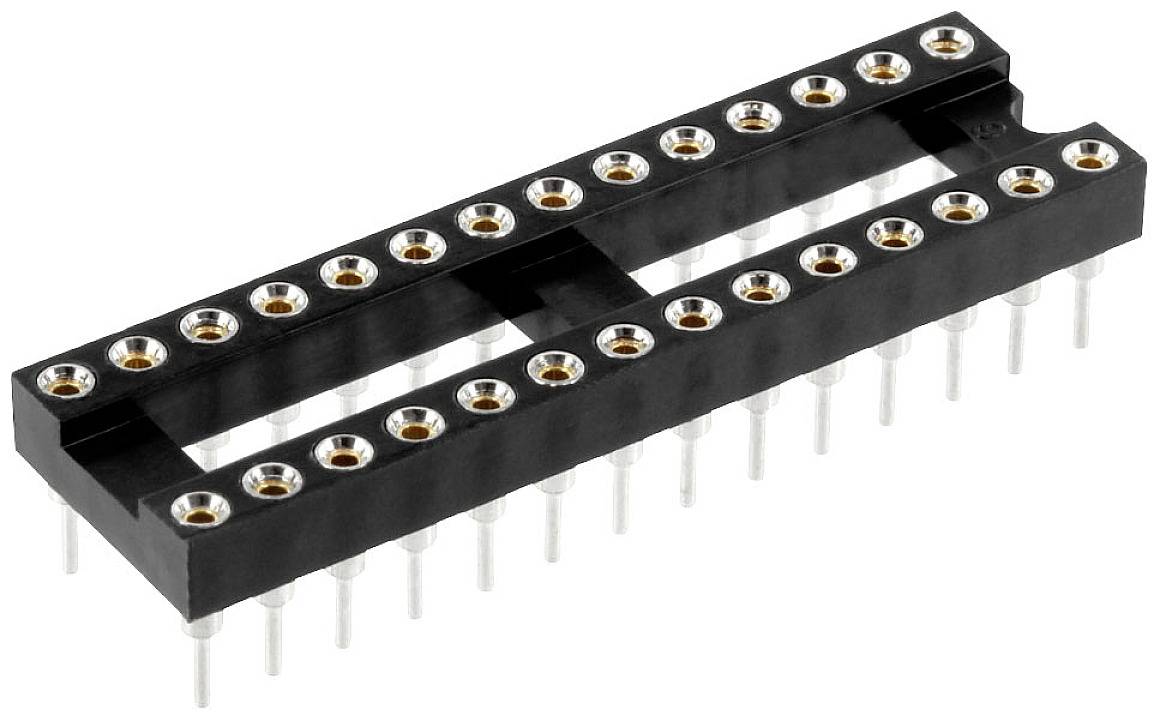

Black IC socket with two parallel rows of 14 metallic contact pins, used for housing a 28-pin integrated circuit.
Technical drawing of a connector with dimensions. Width of 7.43 mm ± 0.15 mm, pitch of 2.54 mm. Side view with hole pattern.

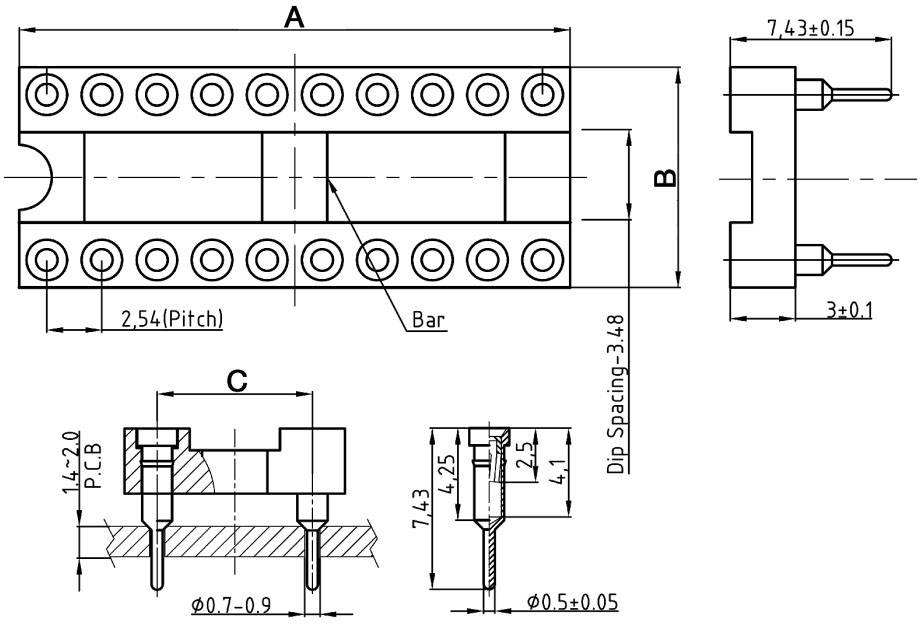

Technical drawing of an electrical connector: Top view and side view with dimensions in millimetres. Main components are labelled.
1/3
Image similar
Packaging type
Tube
Product type
IC socket
Number of pins
28
Material
Copper alloy, gold plated
Features
Precision contacts
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
1116 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 3
Total (€ 1.49 / piece)
€ 4.47
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Packaging type

Tube

Product type

IC socket

Number of pins

28

Material

Copper alloy, gold plated

Features

Precision contacts

Min. temperature

-40 °C

Max. temperature

105 °C

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2521056 econ connect PZ28AB IC socket Number of pins: 28 Precision contacts 1 pc(s) Tube
