econ connect SHSW/2 SHSW/2 Shorting jumper Contact spacing: 2 mm Pins per row:2 Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Shorting jumper
CS
2 mm
Features
closed
Pins
2
Dim

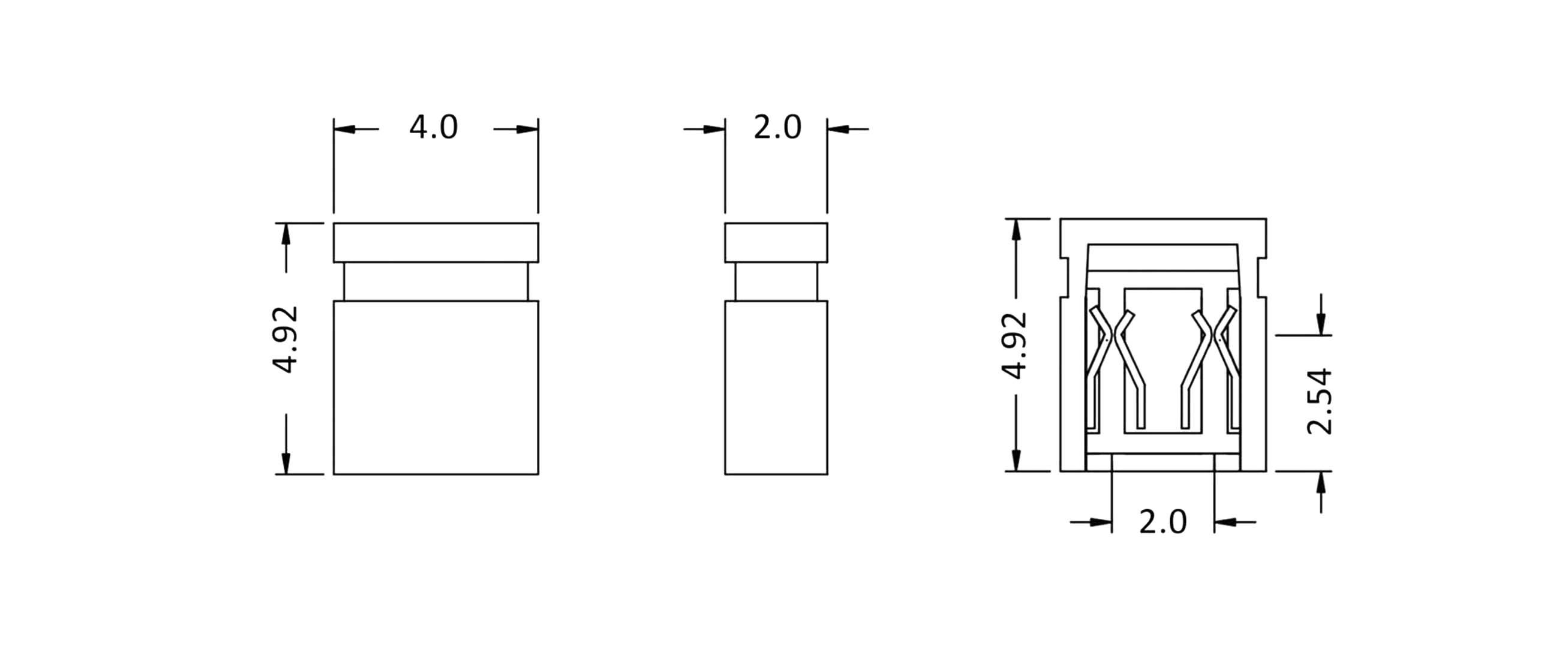

(L x W x H) 2 x 4.92 x 4 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
30
-
€ 0.07
90
14% = € 0.01
€ 0.06
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 30
Total (€ 0.07 / piece)
€ 2.10
plus VAT.
14-day return policy included
Highlights & Details
Short-circuit bridge
- Content 1 pc(s)
Our service for you
Technical specifications
- Product type
Shorting jumper
- Features
closed
- Pins
2
- CS
2 mm
- Dim
(L x W x H) 2 x 4.92 x 4 mm
- Manufacturer part #
SHSW/2
- Factory colour
Black
- Content
1 pc(s)
- Insulation material
PBT
- Contact material
Brass
- Contact surface
Gold plated
- Nominal voltage
650 V AC
- Nominal current
3 A
- Pins per row
2
- Width
4.92 mm
- Height
4 mm
- Length
2 mm
- RoHS-compliant
Yes
- Type
SHSW/2
Documents & Downloads
Datasheet
Datasheet 1303924 econ connect SHSW/2 SHSW/2 Shorting jumper Contact spacing: 2 mm Pins per row:2 Content: 1 pc(s)
