Name: econ connect WS14G Pin strip Total number of pins 14 No. of rows 2 1 pc(s)
Brand: econ connect
SKU: 1303893
Availability: InStock

A rectangular electronic connector with multiple gold-plated pins, used for connecting printed circuit boards.

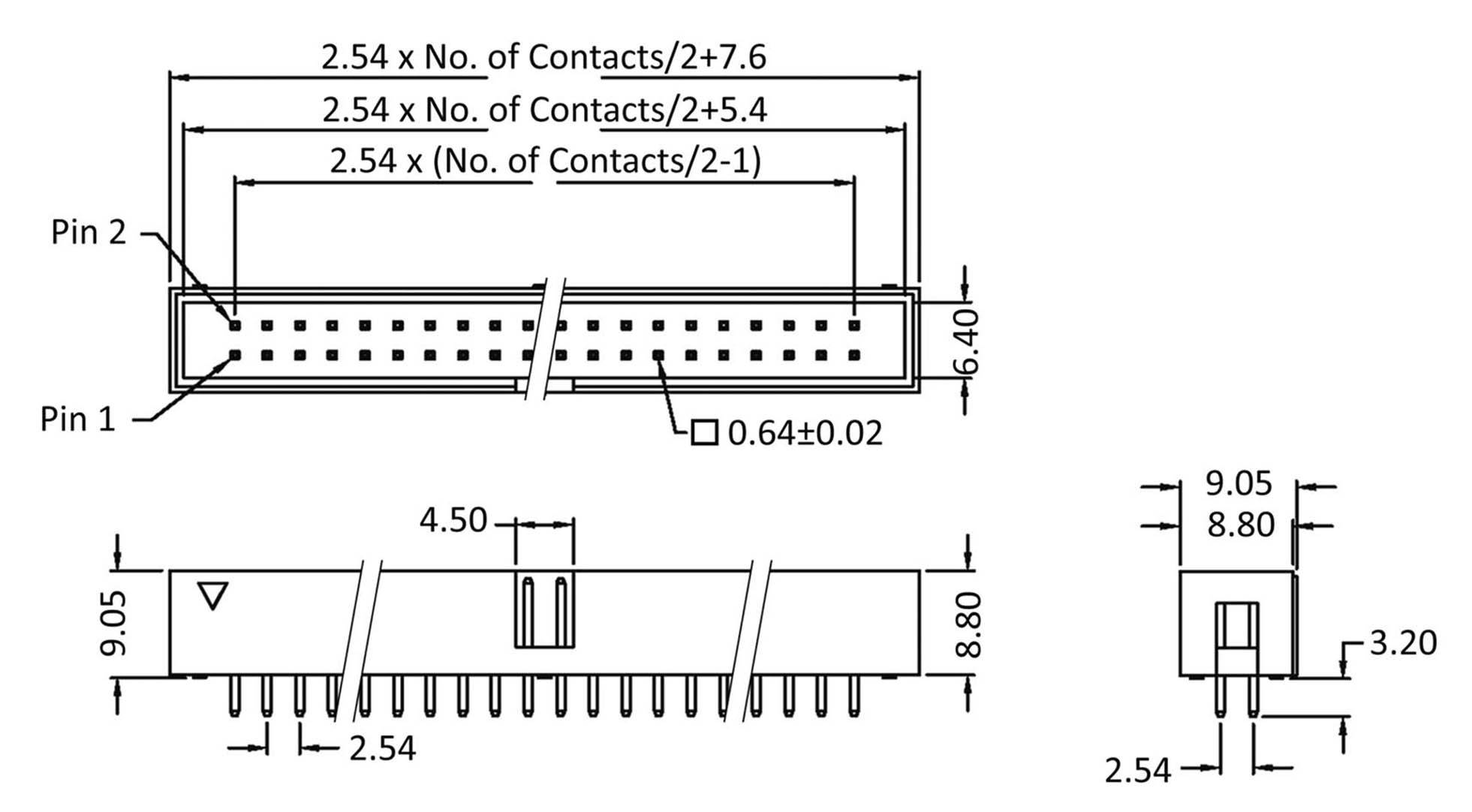

Figure of an electrical connector. Shows 3 views with dimensions: length, width, pin spacing and contact height. Purpose: technical drawing for circuit board development.

1/2

Image similar

Product type

Pin strip

Total no. of pins

Connector type

Pin strip, straight

2.54 mm

Content

1 pc(s)

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

127 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 7

Total (€ 0.53 / piece)

€ 3.71

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Connector strip/trough

No. of rows 2
Content 1 pc(s)

Our service for you

Technical specifications

Product type: Pin strip

Total no. of pins: 14

Connector type: Pin strip, straight

Connector orientation: Perpendicular (to the PCB)

No. of rows: 2

CS: 2.54 mm

Nominal current: 3 A

Nominal current - rounded value: 3 A

Pins per row: 7

Connection: Print

Factory colour: Black

Case material: PBT, UL94V-0

Manufacturer part #: WS14G

Content: 1 pc(s)

Contact material: Brass

Width: 25.38 mm

Height: 12 mm

Length: 9.05 mm

Max. temperature: +105 °C

Min. temperature: -40 °C

Type: WS14G

Dim: (L x W x H) 9.05 x 25.38 x 12 mm

Nominal voltage: 500 V AC

Certification marks: DIN 41 651

Number of pins: 14

RoHS-compliant: Yes

Contact surface: Gold plated
