Image similar

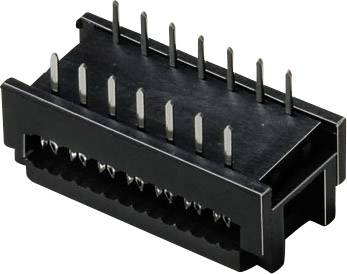

TRU COMPONENTS 1580861 PCB connector Total number of pins 14 No. of rows 2 1 pc(s)
Product type
PCB connector
Total no. of pins
14
Connector type
PCB slot, straight
CS
2.54 mm
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1.29 / piece)
€ 1.29
incl. VAT
14-day return policy included
Highlights & Details
IC connector
- No. of rows 2
- Content 1 pc(s)
Our service for you
Technical specifications
- Product type
PCB connector
- Total no. of pins
14
- Connector type
PCB slot, straight
- Connector orientation
Perpendicular (to the PCB)
- No. of rows
2
- CS
2.54 mm
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Pins per row
7
- Connection
Cut & Clip
- Factory colour
Black
- Case material
PBT, UL94V-0
- Manufacturer part #
1580861
- Content
1 pc(s)
- Contact material
Brass
- Width
15.24 mm
- Height
10.7 mm
- Length
9.4 mm
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
1580861
- Dim
(L x W x H) 9.4 x 15.24 x 10.7 mm
- Nominal voltage
250 V AC
250 V DC
- Number of pins
14
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1580861 TRU COMPONENTS 1580861 PCB connector Total number of pins 14 No. of rows 2 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1580861 TRU COMPONENTS 1580861 PCB connector Total number of pins 14 No. of rows 2 1 pc(s)
Description
This text is machine translated.
Cut&clamp mounting. The connector fits a normal DIL IC socket. Tin-plated contacts.
Cut&clamp mounting. The connector fits a normal DIL IC socket. Tin-plated contacts.
