ERNI 063209 SMC multipole connector Total number of pins 26 No. of rows 2 1 pc(s)

A black electronic plug with multiple golden contacts, similar to an HDMI connector, on a white background.

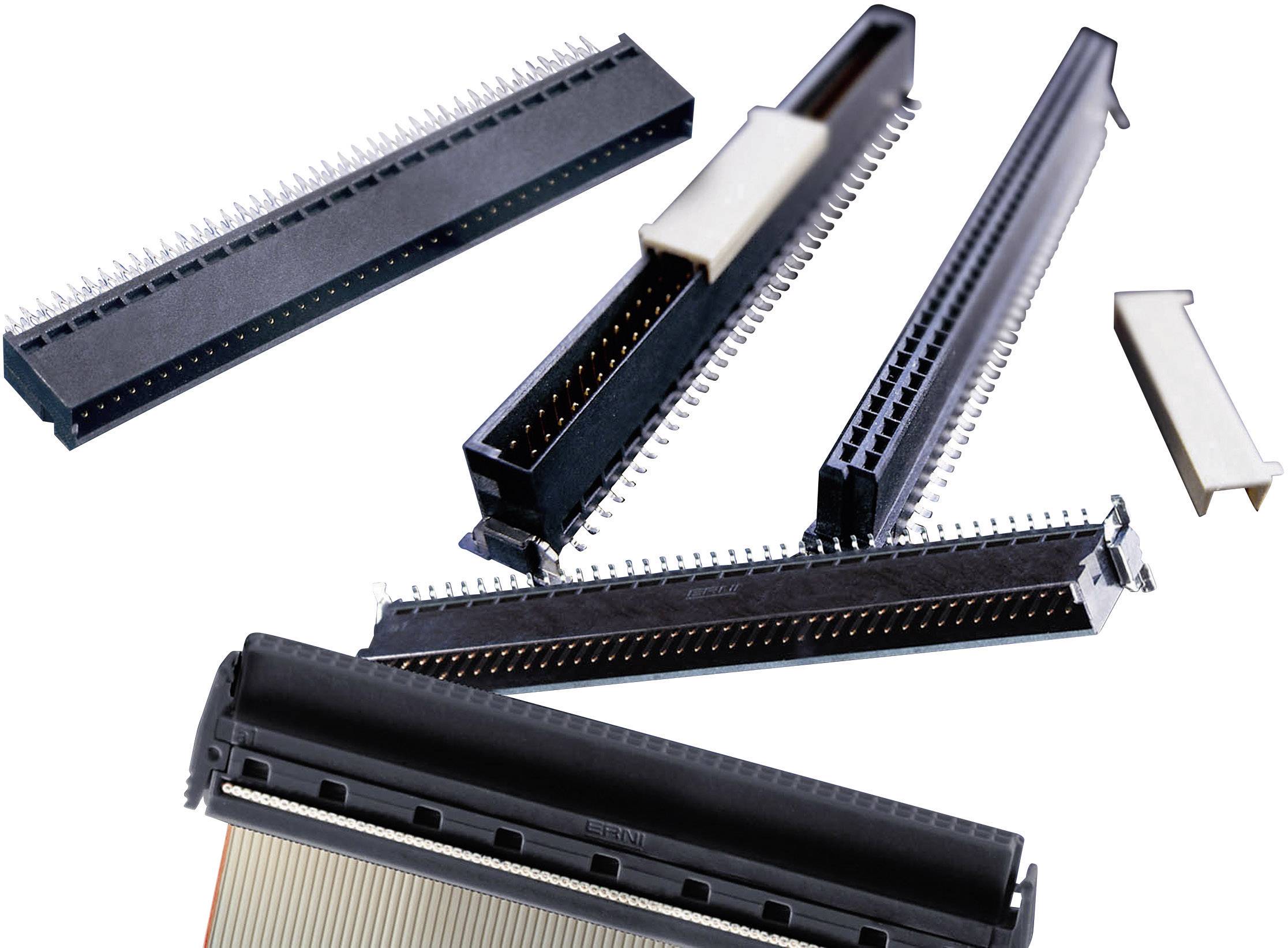

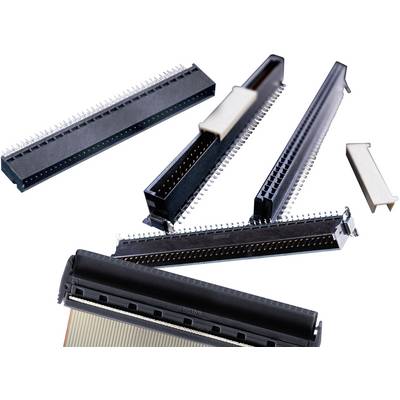

Several electronic connectors of various shapes and sizes on a white background, displaying different pin configurations.

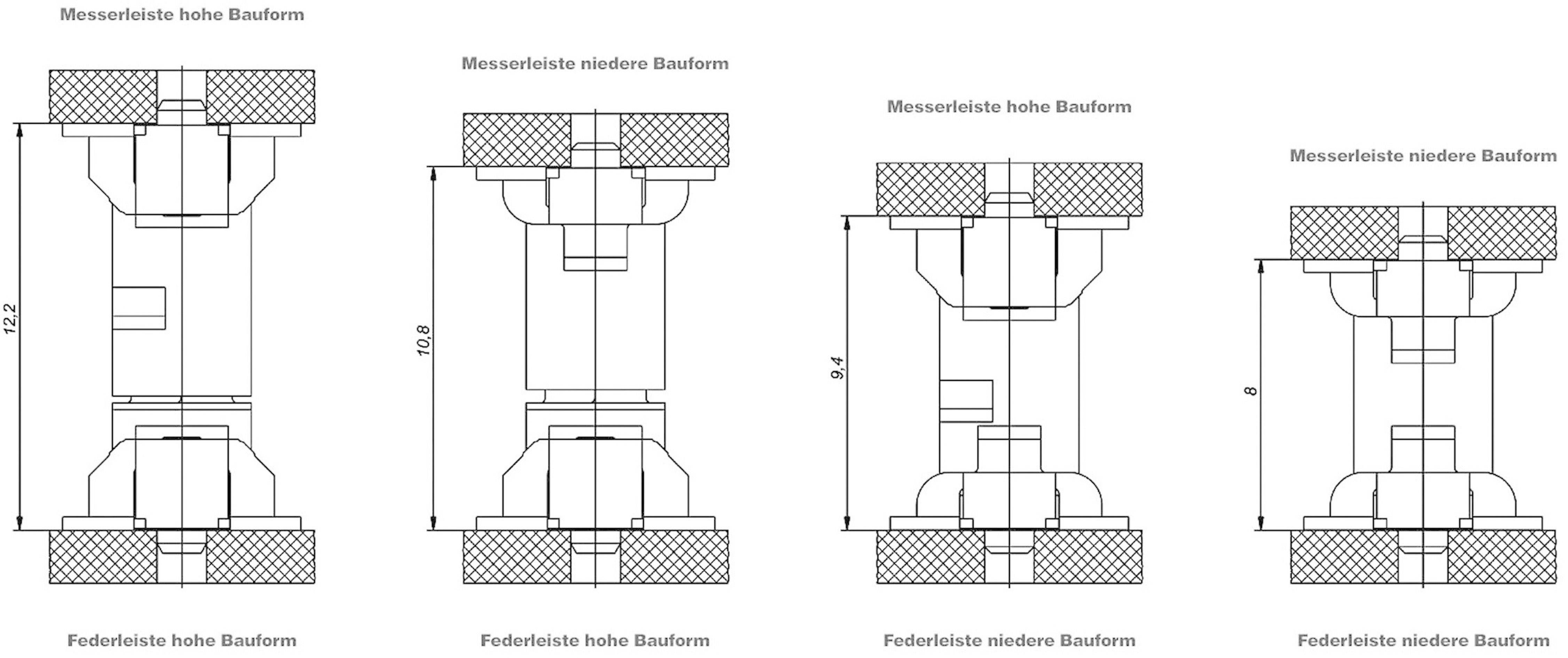

Drawing of four mechanical components with dimensions. Left: High-profile knife and spring strip. Right: Low-profile knife and spring strip.

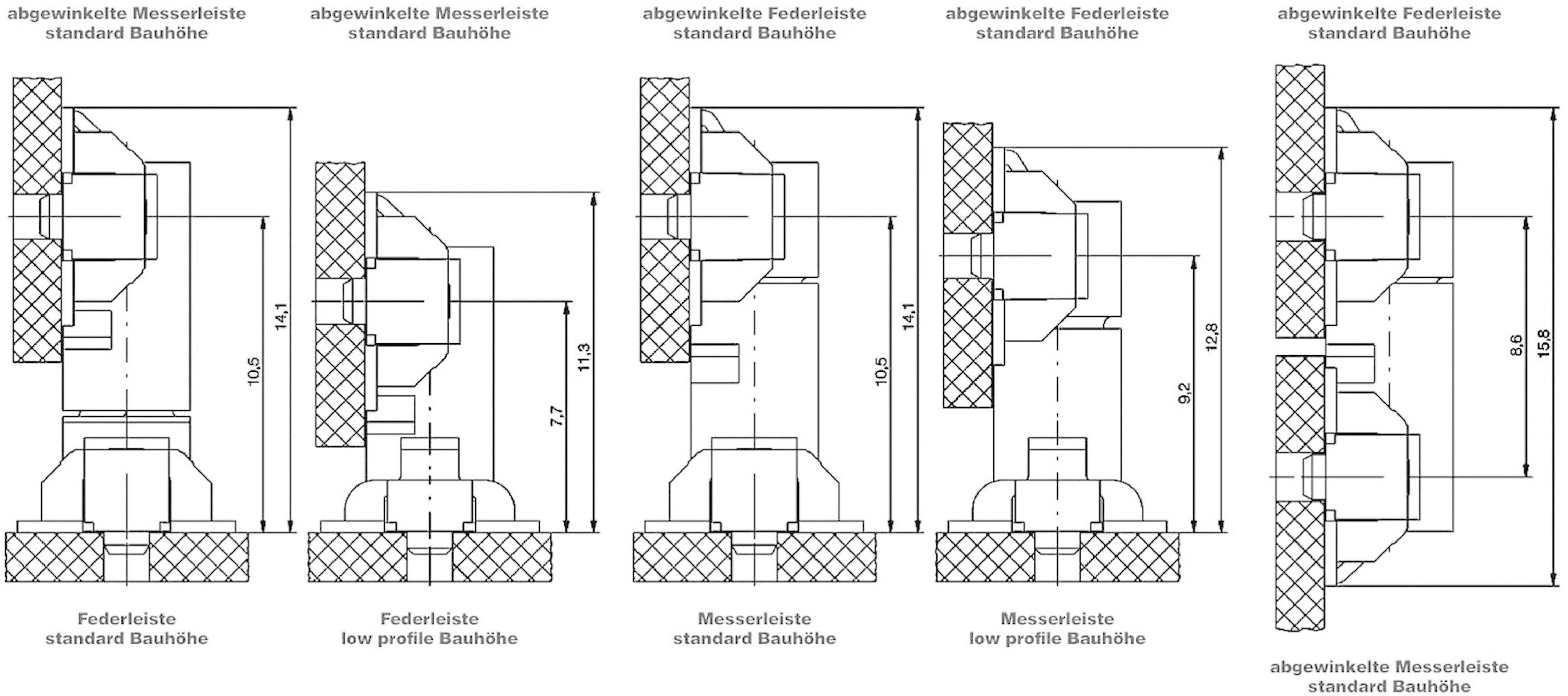

Technical drawing of five different cross-sections of a mechanical component with dimensions, all with spring and blade sides.

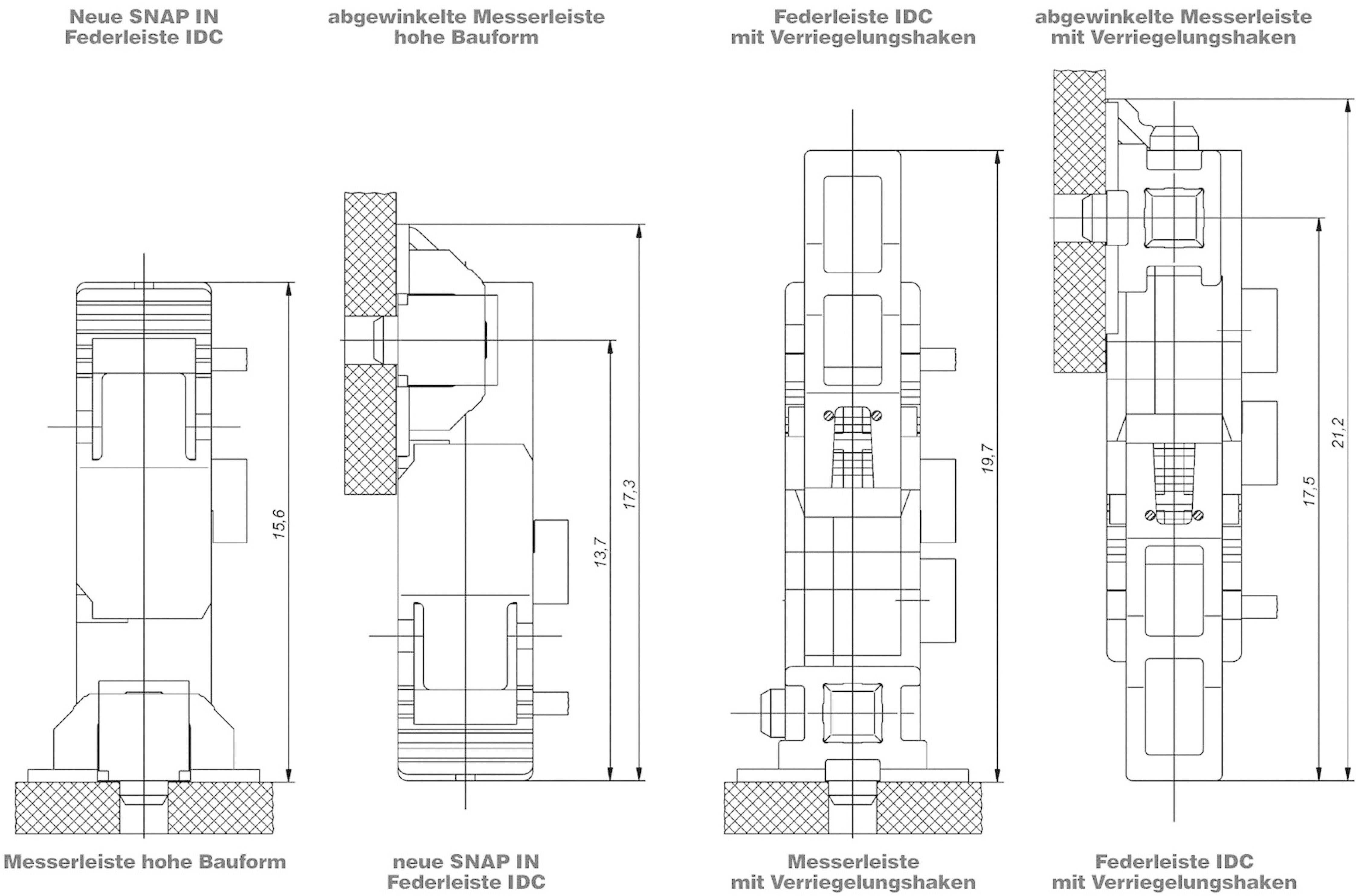

Technical drawing of four connectors in profile: new SNAP IN spring contact strip IDC, angled blade strip, IDC spring contact strip with locking hook. Dimensions and structures are depicted in detail.

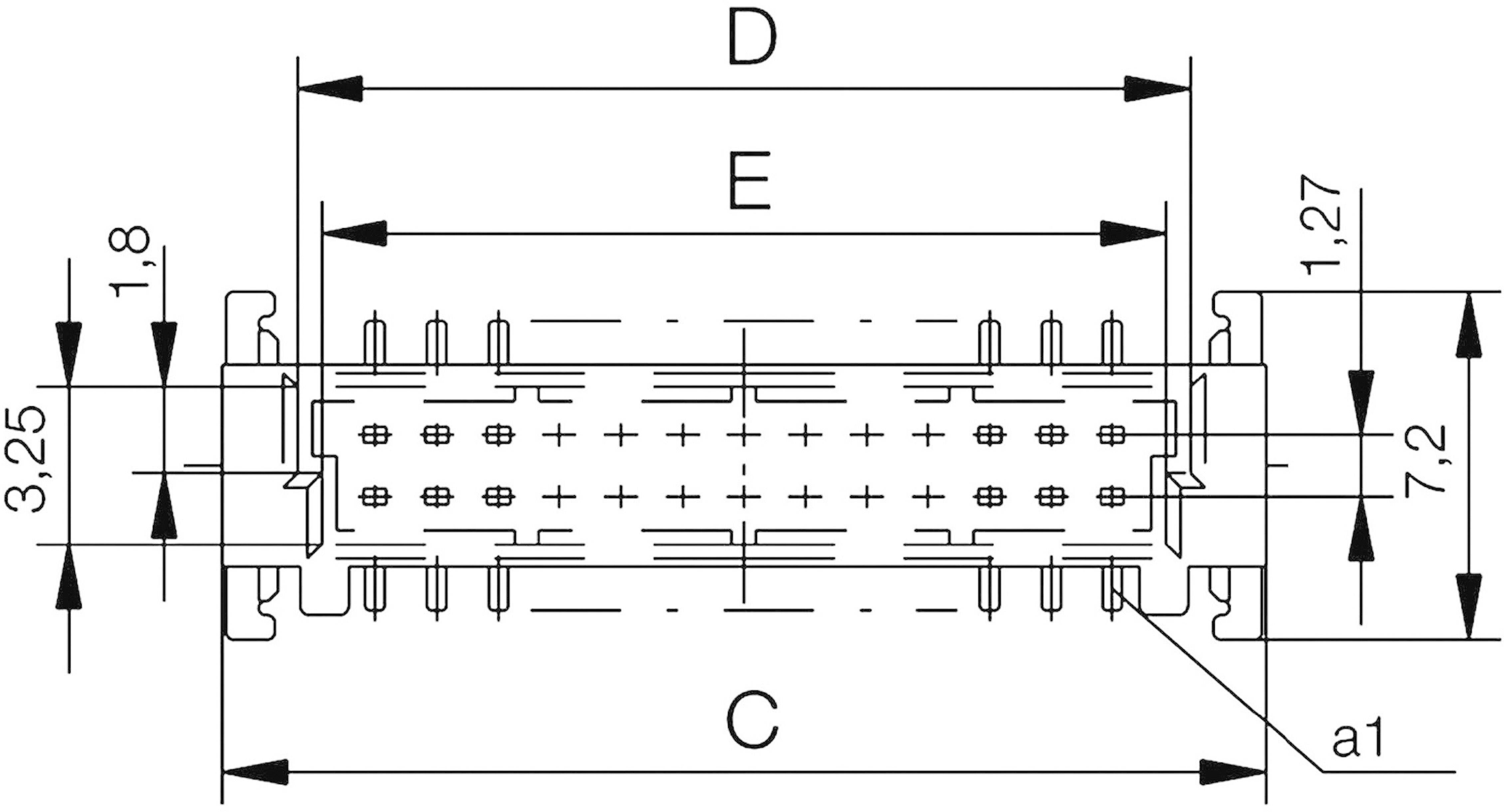

Technical drawing of a connector with dimensional specifications: Width 3.25 and 7.2 mm, height 1.8 and 1.27 mm, additional dimensions C, D, and E.

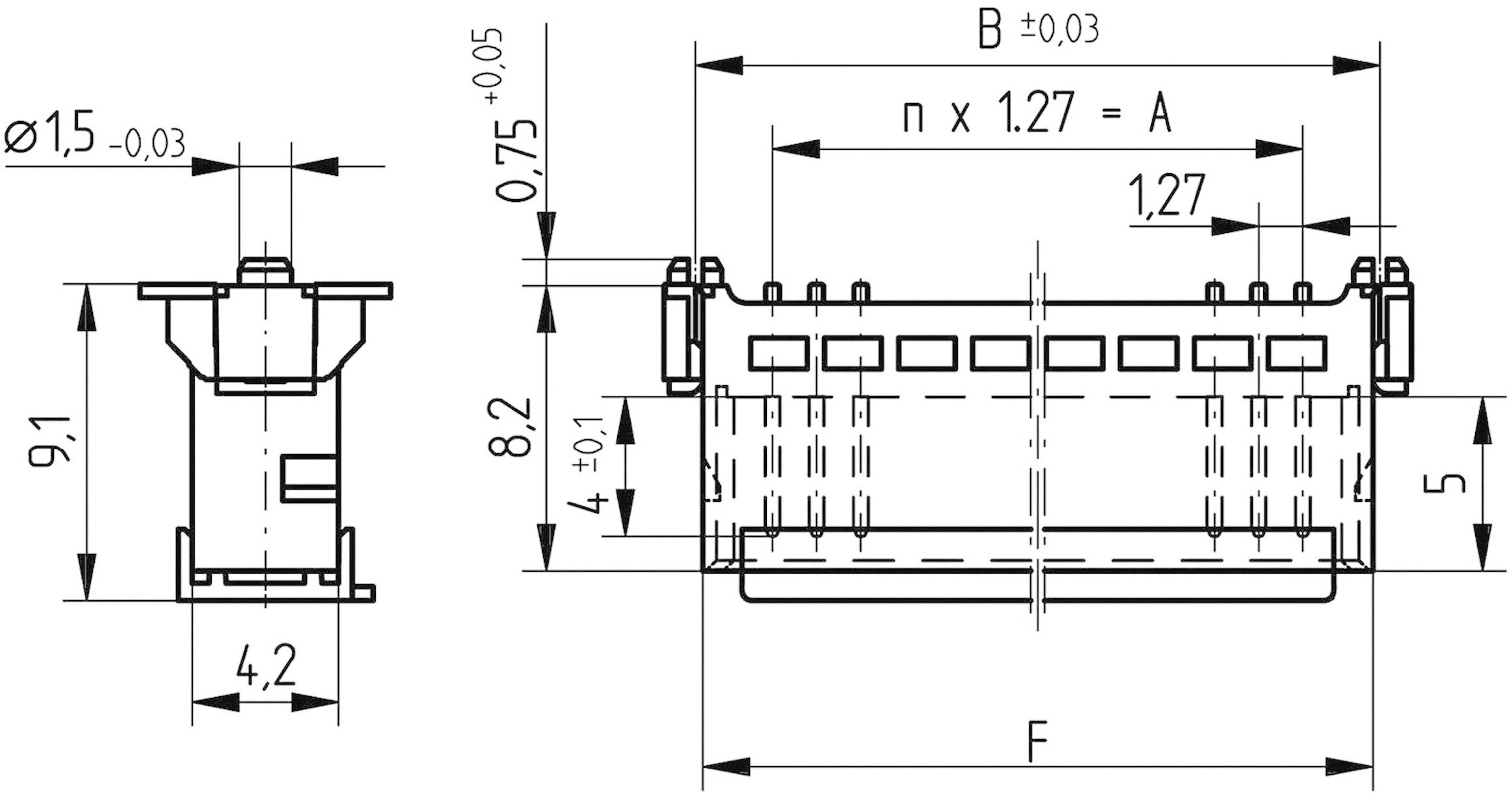

Technical drawing of a connector with dimensions: Diameter 0.15 ±0.03; Width B ±0.03; Pin spacing 1.27; Height 9.1 and 8.2.

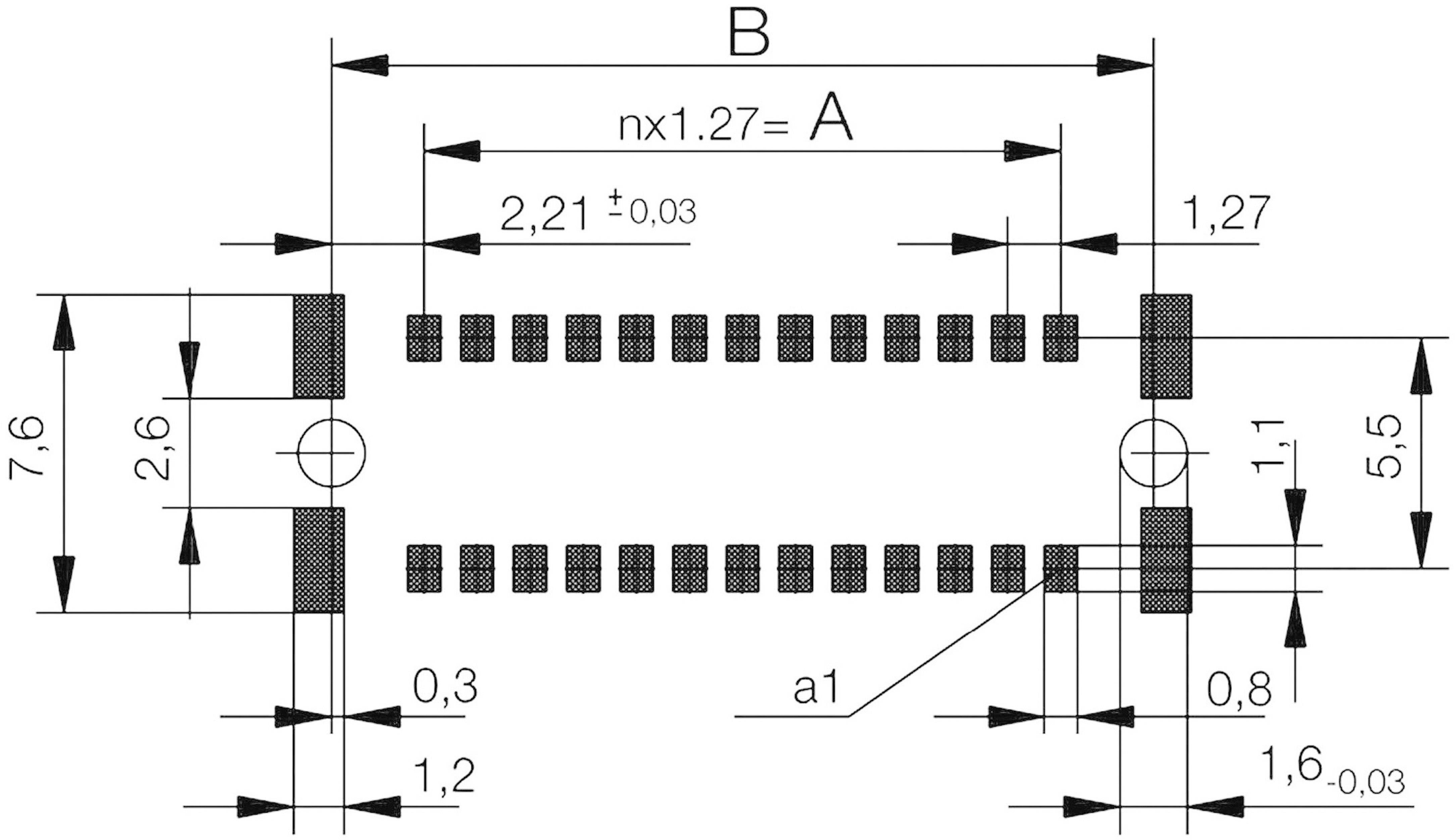

Technical drawing of an IC package with detailed dimensions and specifications, including pin spacing and overall width.
1/8
Image similar
Product type
SMC multipole connector
Total no. of pins
26
Connector type
Multipole connector, straight
CS
1.27 mm
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
73 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 5.49 / piece)
€ 5.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

SMC multipole connector

  • No. of rows 2
  • Content 1 pc(s)

Technical specifications

Product type

SMC multipole connector

Total no. of pins

26

Connector type

Multipole connector, straight

Connector orientation

Perpendicular (to the PCB)

No. of rows

2

CS

1.27 mm

Nominal current

1.7 A

Nominal current - rounded value

1.7 A

DIN standard

Q

Pins per row

13

Connection

SMT

Factory colour

Black

Case material

LCP

Manufacturer part #

063209

Content

1 pc(s)

Contact material

Copper alloy

Width

21.6 mm

Height

9.1 mm

Length

7.2 mm

Max. temperature

+125 °C

Min. temperature

-55 °C

Type

63209

Dim

(L x W x H) 7.2 x 21.6 x 9.1 mm

Resistance

Max. 25 mΩ

Number of pins

26

Contact surface

Gold plated
