Name: econ connect WS34G Pin strip Total number of pins 34 No. of rows 2 1 pc(s)
Brand: econ connect
SKU: 1303926
Availability: InStock

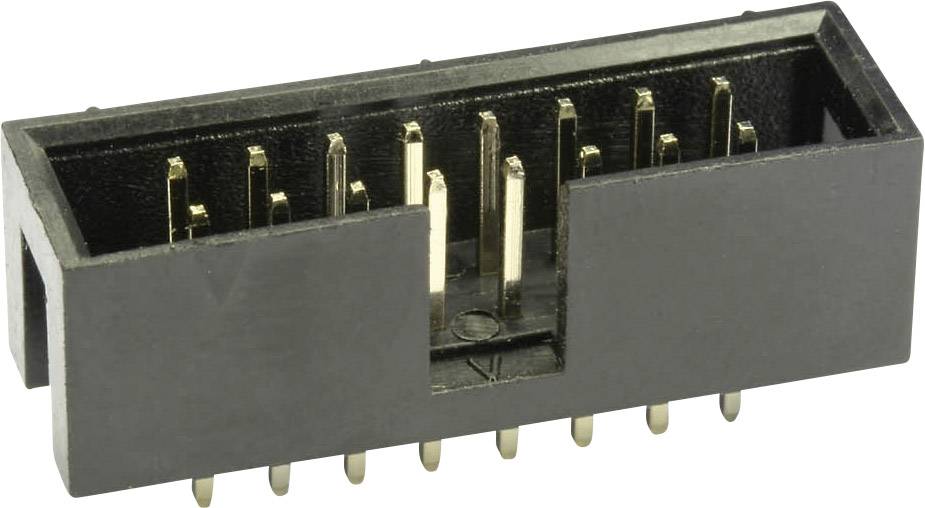

A rectangular black plug with gold pins; used for electrical connection on circuit boards.

Diagram of a connector with dimensions: 2.54 mm pitch, Pin 1 and Pin 2 marked, overall dimensions 9.05 mm height, 6.40 mm depth.

1/2

Image similar

Product type

Pin strip

Total no. of pins

Connector type

Pin strip, straight

2.54 mm

Content

1 pc(s)

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

115 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 5

Total (€ 0.58 / piece)

€ 2.90

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Connector strip/trough

No. of rows 2
Content 1 pc(s)

Our service for you

Technical specifications

Product type: Pin strip

Total no. of pins: 34

Connector type: Pin strip, straight

Connector orientation: Perpendicular (to the PCB)

No. of rows: 2

CS: 2.54 mm

Nominal current: 3 A

Nominal current - rounded value: 3 A

Pins per row: 17

Connection: Print

Factory colour: Black

Case material: PBT, UL94V-0

Manufacturer part #: WS34G

Content: 1 pc(s)

Contact material: Brass

Width: 50.78 mm

Height: 12 mm

Length: 9.05 mm

Max. temperature: +105 °C

Min. temperature: -40 °C

Type: WS34G

Dim: (L x W x H) 9.05 x 50.78 x 12 mm

Nominal voltage: 500 V AC

Certification marks: DIN 41 651

Number of pins: 34

RoHS-compliant: Yes

Contact surface: Gold plated
