Name: econ connect WS40SK Pin strip Total number of pins 40 No. of rows 2 1 pc(s)
Brand: econ connect
SKU: 1303927
Availability: InStock

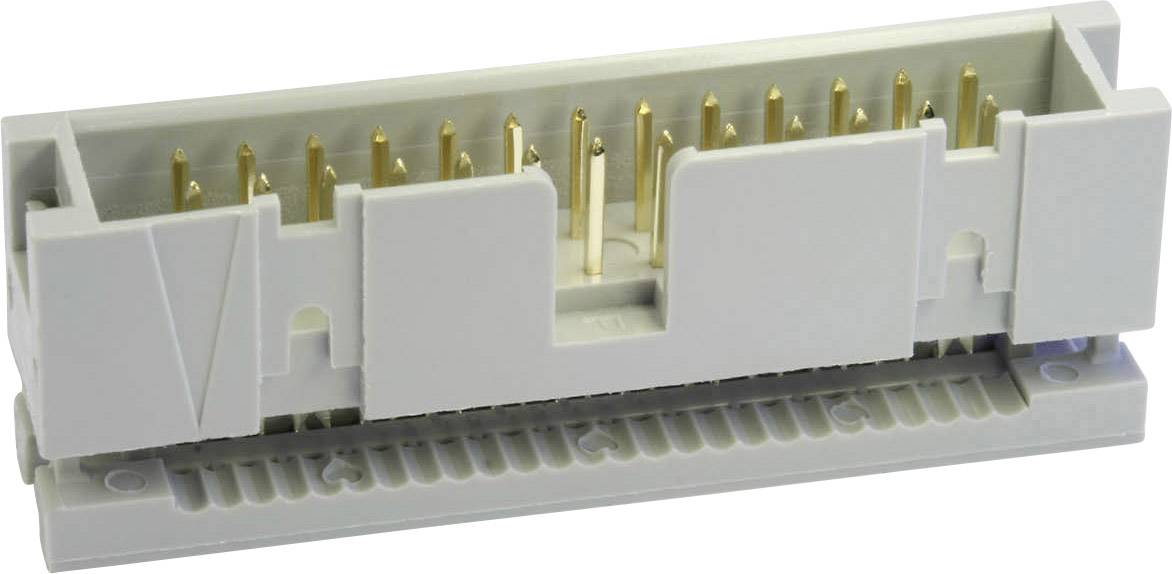

Grey electronic connector with multiple golden pins, mounted in a rectangular housing.

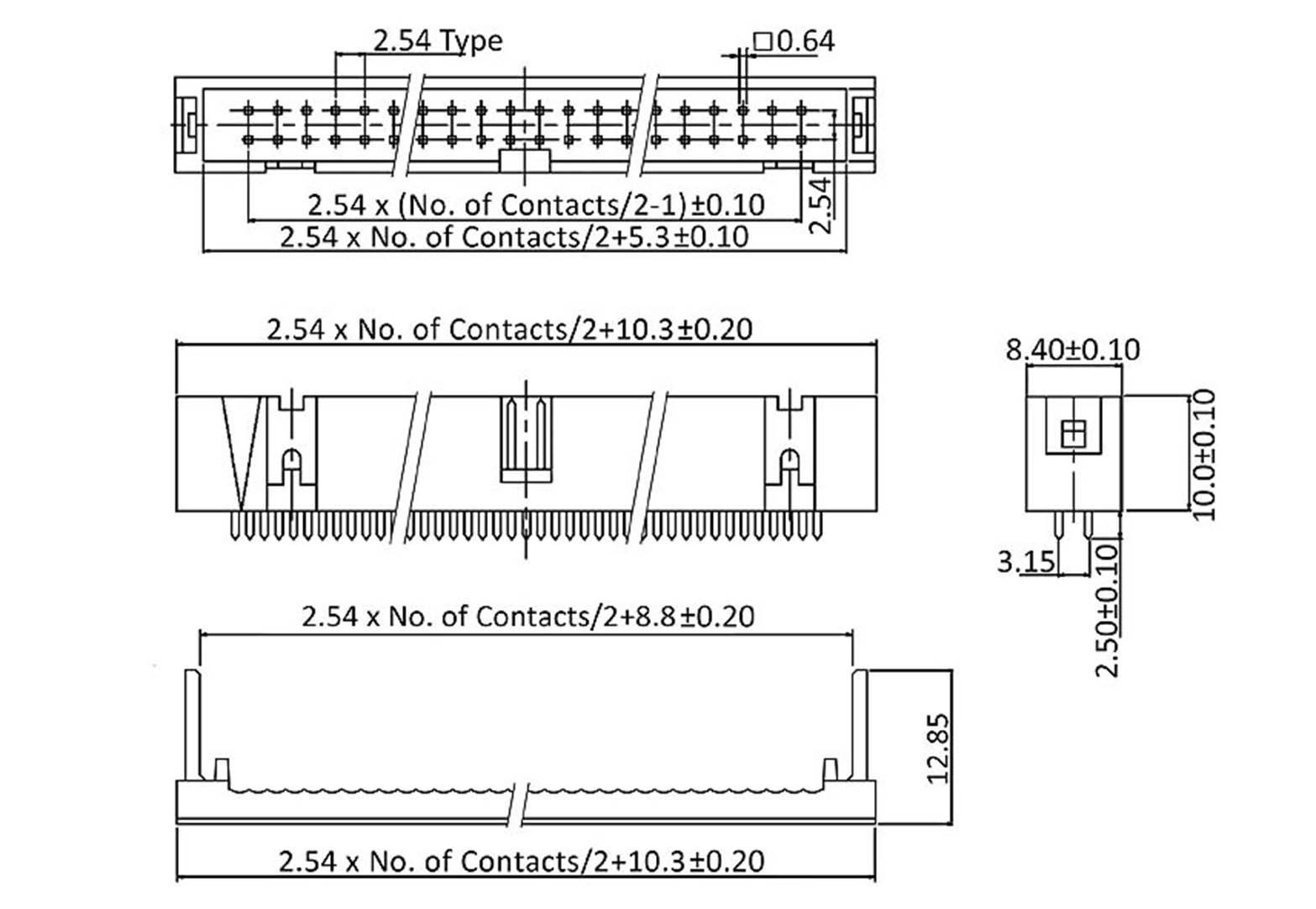

Technical drawing of a connector with dimensions in millimetres. Shows top and side views with detailed dimensional specifications.

1/2

Image similar

Product type

Pin strip

Total no. of pins

Connector type

Pin strip, straight

2.54 mm

Content

1 pc(s)

Datasheet (PDF)

Fast track dispatch on Fri 16 Oct

99 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3.29 / piece)

€ 3.29

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Connector strip/trough

No. of rows 2
Content 1 pc(s)

Our service for you

Technical specifications

Product type: Pin strip

Total no. of pins: 40

Connector type: Pin strip, straight

Connector orientation: Perpendicular (to the PCB)

No. of rows: 2

CS: 2.54 mm

Nominal current: 1 A

Nominal current - rounded value: 1 A

Pins per row: 20

Connection: Cut & Clip

Factory colour: Light grey

Case material: PBT, UL94V-0

Manufacturer part #: WS40SK

Content: 1 pc(s)

Contact material: Brass

Width: 61.1 mm

Height: 12.5 mm

Length: 8.4 mm

Max. temperature: +105 °C

Min. temperature: -55 °C

Type: WS40SK

Dim: (L x W x H) 8.4 x 61.1 x 12.5 mm

Nominal voltage: 500 V AC

Certification marks: DIN 41 651

Number of pins: 40

RoHS-compliant: Yes

Contact surface: Gold plated
