Name: econ connect WS40W Pin strip Total number of pins 40 No. of rows 2 1 pc(s)
Brand: econ connect
SKU: 1303509
Availability: InStock

Black electrical connector with double-row metal pins. It is used to connect electrical circuits.

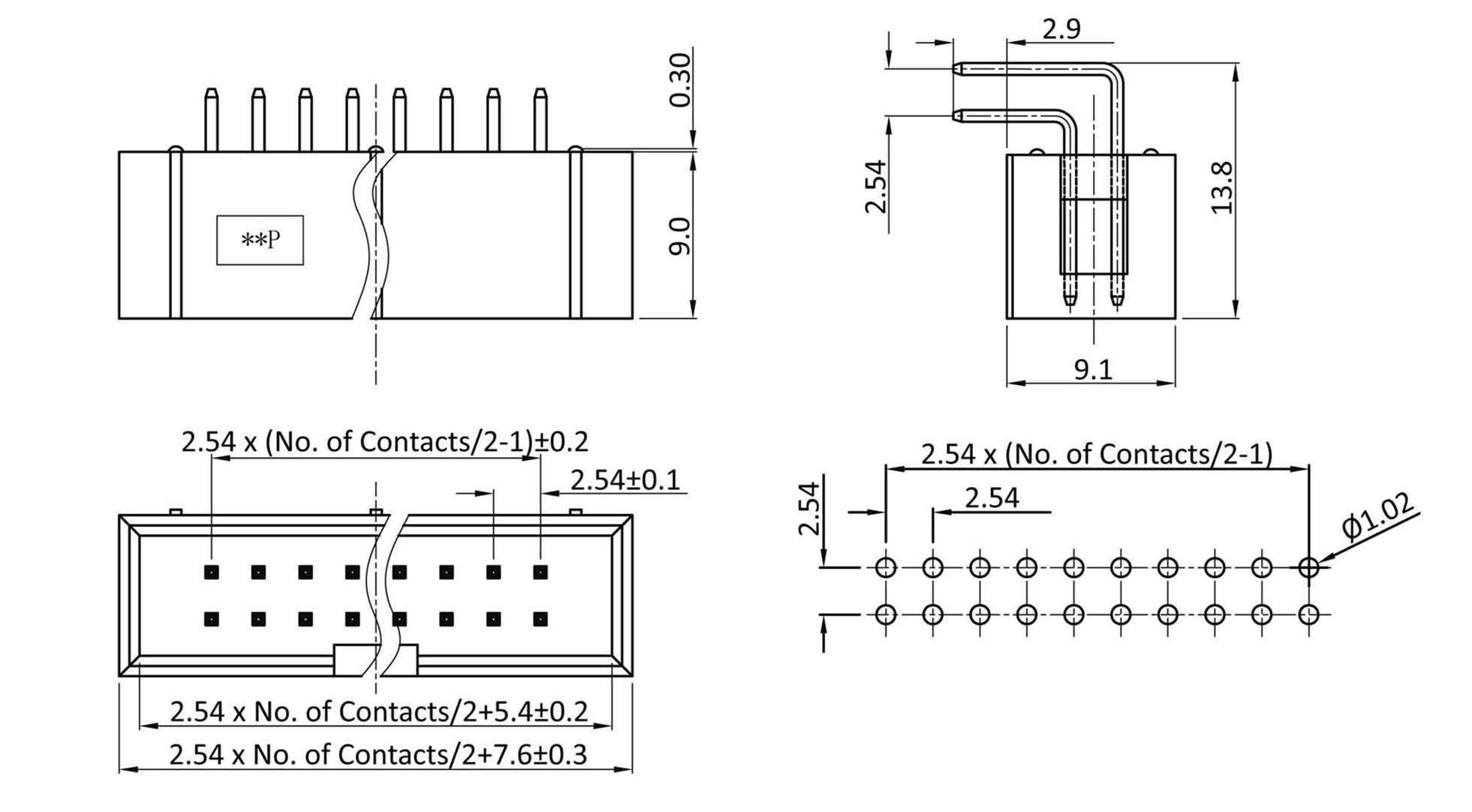

Technical drawing of a connector with dimensioning and contact layout information. Side view and top view shown.

1/2

Image similar

Product type

Pin strip

Total no. of pins

Connector type

Pin strip, right angle

2.54 mm

Content

1 pc(s)

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

65 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 5

Total (€ 0.54 / piece)

€ 2.70

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Connector strip/trough

No. of rows 2
Content 1 pc(s)

Our service for you

Technical specifications

Product type: Pin strip

Total no. of pins: 40

Connector type: Pin strip, right angle

Connector orientation: Parallel (to the PCB)

No. of rows: 2

CS: 2.54 mm

Nominal current: 1 A

Nominal current - rounded value: 1 A

Pins per row: 20

Connection: Print

Factory colour: Black

Case material: PA

Manufacturer part #: WS40W

Content: 1 pc(s)

Contact material: Copper alloy

Width: 58.4 mm

Height: 13.8 mm

Length: 12 mm

Max. temperature: +105 °C

Min. temperature: -40 °C

Type: WS40W

Dim: (L x W x H) 12 x 58.4 x 13.8 mm

Nominal voltage: 500 V AC

Certification marks: DIN 41 651

Number of pins: 40

RoHS-compliant: Yes
