1/3

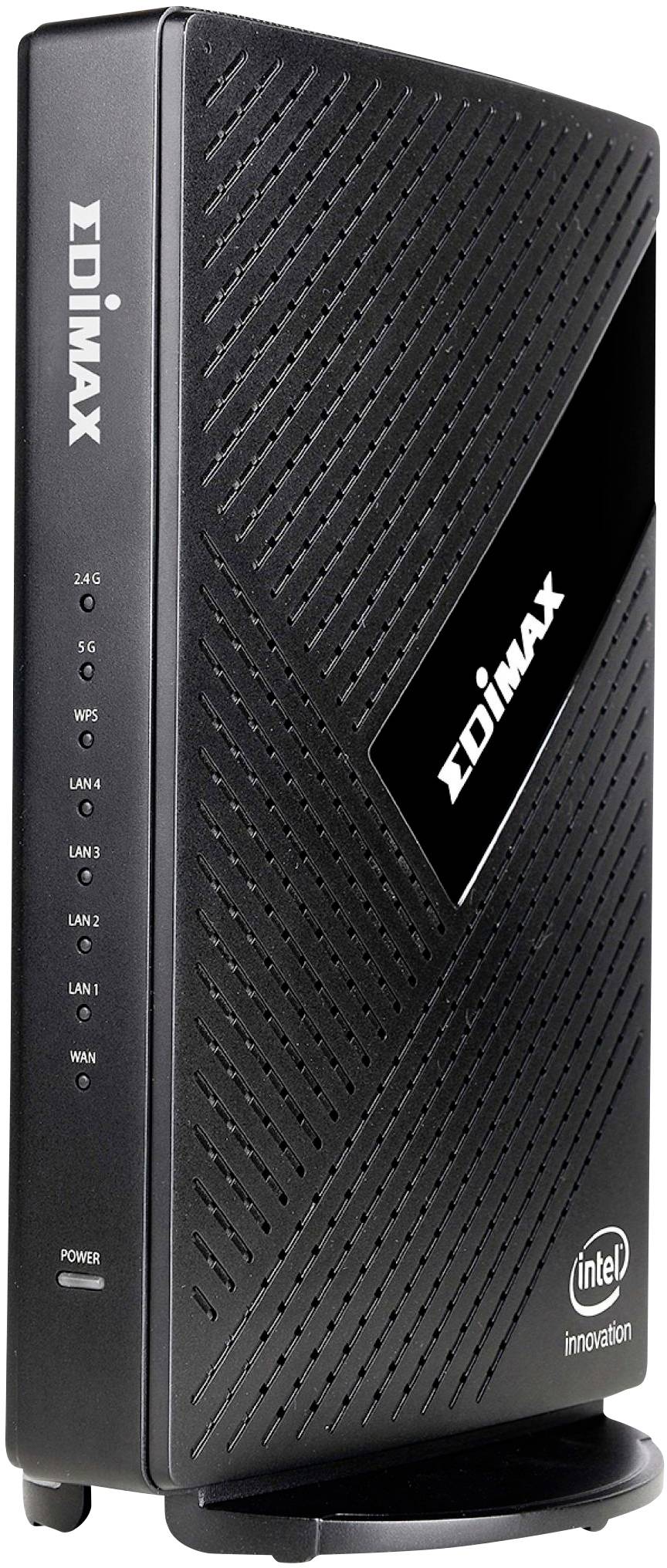

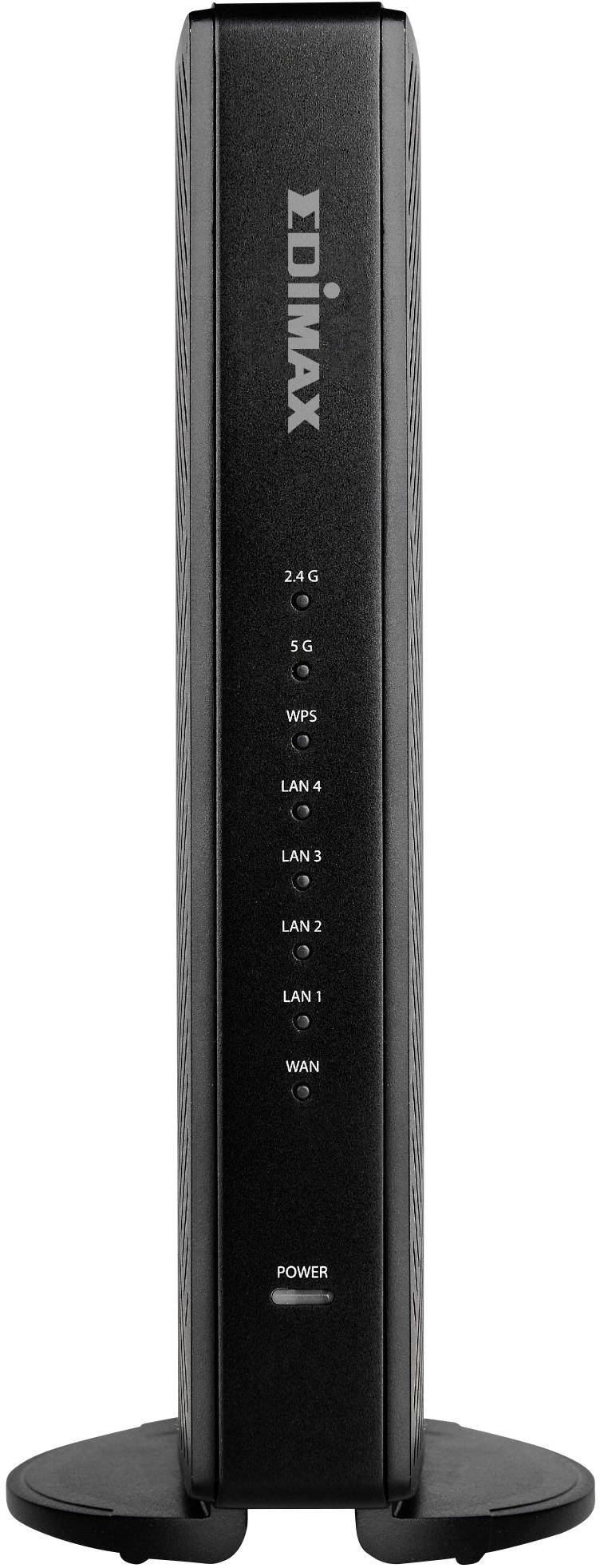

EDIMAX AX3000 Wi-Fi router 2.4 GHz, 5 GHz
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 29.99 / piece)
€ 29.99
incl. VAT
14-day return policy included
Highlights & Details
EDIMAX AX3000 dual band Wi-Fi 6 router
- Intel-based Wi-Fi 6 technology: Up to 2.5x faster speeds, higher capacity, and lower latency than previous generation Wi-Fi 5
- Intel's Dual-Core CPU: Best performance for traffic streaming
- 3 Gigabit wireless performance: AX3000, maximum speed up to 574 Mbit/s at 2.4 GHz and 2402 Mbit/s at 5 GHz
- More connected devices: The revolutionary OFDMA technology supports more efficient data communication to more devices
- TWT power saving: Intelligent control of the sleep and wake-up times of IoT and mobile devices to extend battery life
- Four internal antennas with high amplification: For better coverage
- Advanced software features: 2-in-1 mode, supports hardware switches for AP and router selection. Complements the guest network isolation that separates the guest network for secure Wi-Fi access by guest users
- Smart Setup : For smart, automatic and quick installation
Technical specifications
- Security: WPA2-PSK(AES) / WPA-PSK(TKIP) / WEP(64bit / 128bit)
- Product type
Wi-Fi router
- Type
AX3000
- Function
Access point
- Wi-Fi standard
IEEE802.11a
IEEE802.11b
IEEE802.11g
IEEE802.11n
IEEE802.11ac
IEEE802.11ax
- Dual Band compatibility
2.4 GHz and 5 GHz
- Wi-Fi frequency band
2.4 GHz
5 GHz
- Wi-Fi speed 2.4 GHz
574 MBit/s
- Wi-Fi speed 5 GHz
2.4 GBit/s

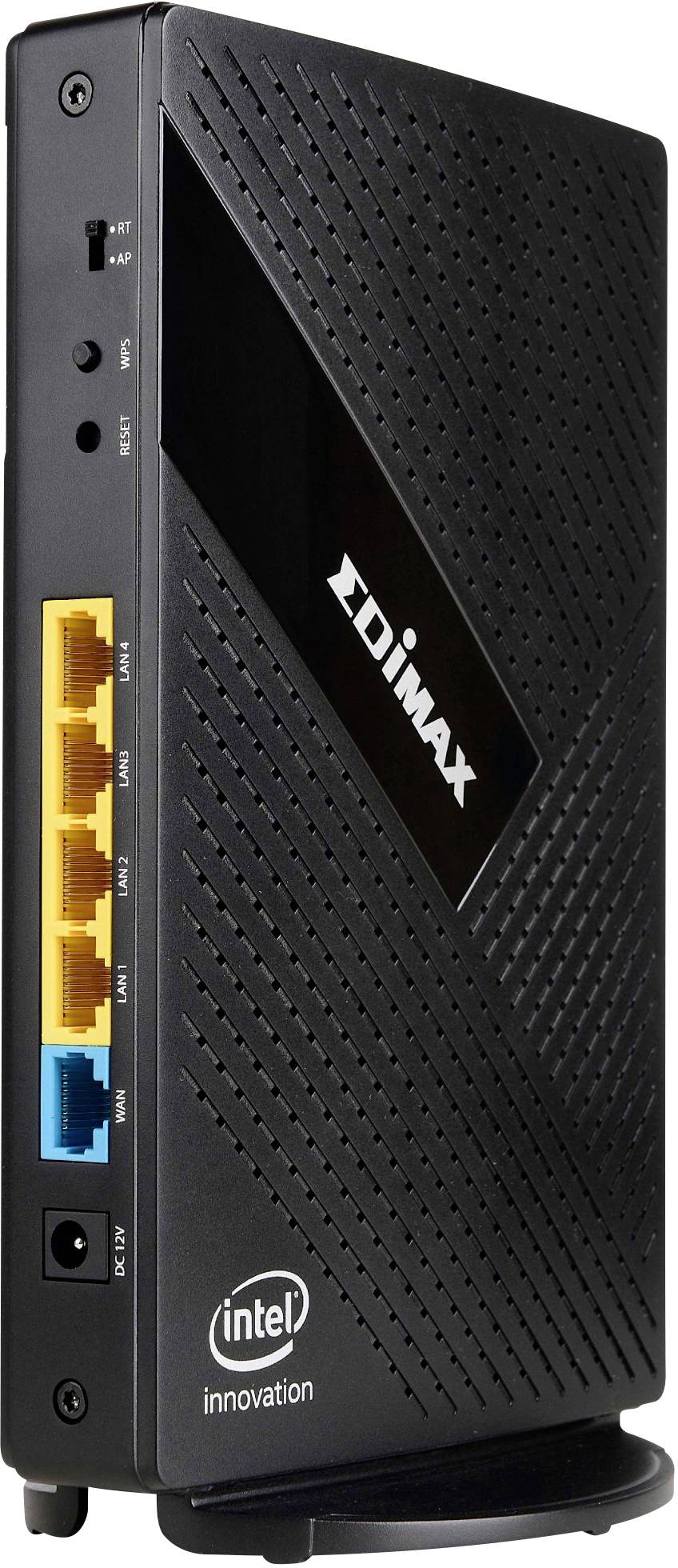

- Interfaces
RJ45
Wi-Fi 5 (IEEE 802.11ac)
- WPS compatible
Yes
- No. of antennas
4 x
- 10/100/1000 Mbps WAN ports
5 x
- Width
125 mm
- Height
205 mm
- Depth
35 mm
- Weight
500 g
- Factory colour
Black
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2301607 EDIMAX AX3000 Wi-Fi router 2.4 GHz, 5 GHz
User & Safety Instructions
User & Safety Instructions 2301607 EDIMAX AX3000 Wi-Fi router 2.4 GHz, 5 GHz
Description
Upgrade to 11ax Wi-Fi | of the next generation BR
-6473AX standard optimizes the speed of your WLAN connectivity, as it works with both 2.4 GHz and 5 GHz to ensure trouble-free performance. While you enjoy HD video streaming or play online games over the 5 GHz band, other tasks such as sending e-mail, online chatting or surfing the Internet can be done simultaneously with 2.4 GHz.
Intel® Wi-Fi 6 | Perfect speed and stability
of the BR-6473AX comes with the latest Intel® Home Wi-Fi WAV654 chipset, which was designed to ensure that the BR-6473AX can still make stable connections when multiple data transfer devices were connected.
OFDMA
This is a completely new technology to deliver effective packets for a larger number of devices compared to older technologies.
2-in-1 mode
of the BR-6473AX offers 2 main operating modes for wireless networks: Router and access point.
You can use it as a router for Internet sharing, or as an access point for switching a wired connection to a wireless network with all your devices. The smart setup wizard makes it easy to change mode to suit your environment or requirements.
4 highly reinforcing antennas for maximum range
through the use of four internal fixed antennas with high amplification offers the BR-6473AX high signal strength in the 2.4 GHz and 5 GHz dual band and an improved WLAN range, since a good signal coverage is also achieved for large houses or offices.
Modern look | functional design
of the BR-6473AX is as slim and space-saving as possible, since the router is vertical and the antennas are embedded in the casing to create a compact design. In addition, there are additional "punch holes" throughout the board to provide the user with cool and durable router hardware.
Einfache Configuration
The easy browser-based setup via iPad, tablet, smartphone or computer makes the installation of the BR-6473AX child's play.
This text is machine translated.
-6473AX standard optimizes the speed of your WLAN connectivity, as it works with both 2.4 GHz and 5 GHz to ensure trouble-free performance. While you enjoy HD video streaming or play online games over the 5 GHz band, other tasks such as sending e-mail, online chatting or surfing the Internet can be done simultaneously with 2.4 GHz.
Intel® Wi-Fi 6 | Perfect speed and stability
of the BR-6473AX comes with the latest Intel® Home Wi-Fi WAV654 chipset, which was designed to ensure that the BR-6473AX can still make stable connections when multiple data transfer devices were connected.
OFDMA
This is a completely new technology to deliver effective packets for a larger number of devices compared to older technologies.
2-in-1 mode
of the BR-6473AX offers 2 main operating modes for wireless networks: Router and access point.
You can use it as a router for Internet sharing, or as an access point for switching a wired connection to a wireless network with all your devices. The smart setup wizard makes it easy to change mode to suit your environment or requirements.
4 highly reinforcing antennas for maximum range
through the use of four internal fixed antennas with high amplification offers the BR-6473AX high signal strength in the 2.4 GHz and 5 GHz dual band and an improved WLAN range, since a good signal coverage is also achieved for large houses or offices.
Modern look | functional design
of the BR-6473AX is as slim and space-saving as possible, since the router is vertical and the antennas are embedded in the casing to create a compact design. In addition, there are additional "punch holes" throughout the board to provide the user with cool and durable router hardware.
Einfache Configuration
The easy browser-based setup via iPad, tablet, smartphone or computer makes the installation of the BR-6473AX child's play.
This text is machine translated.
