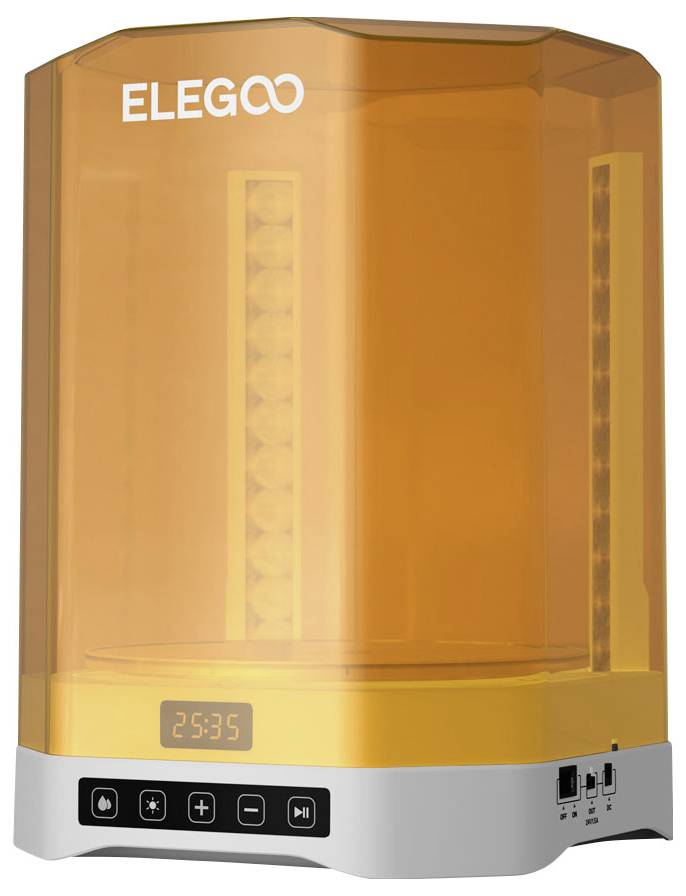

Elegoo Mercury Plus 3.0 Cleaning and UV curing device
EAN:
Part number:
Item no:
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
14 days return policy included
Highlights & Details

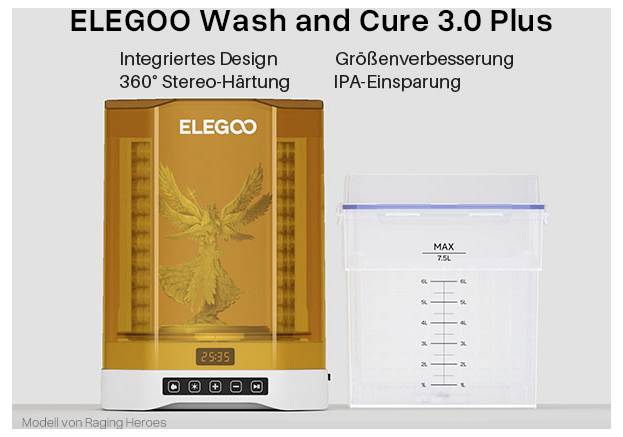

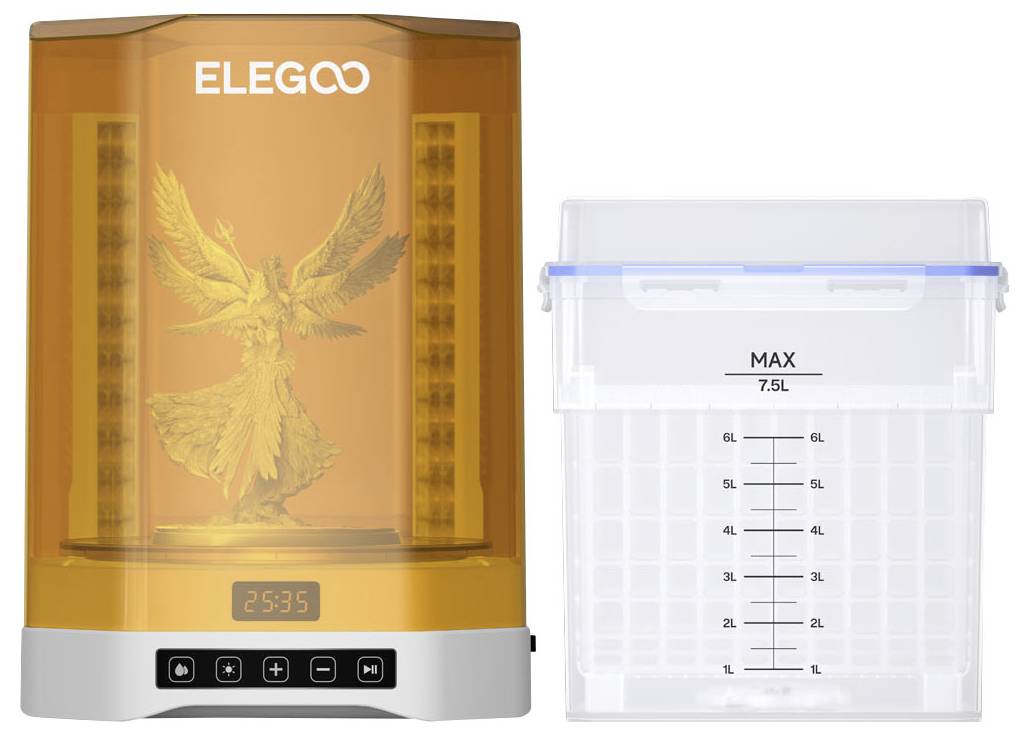

ELEGOO Mercury Plus V3.0

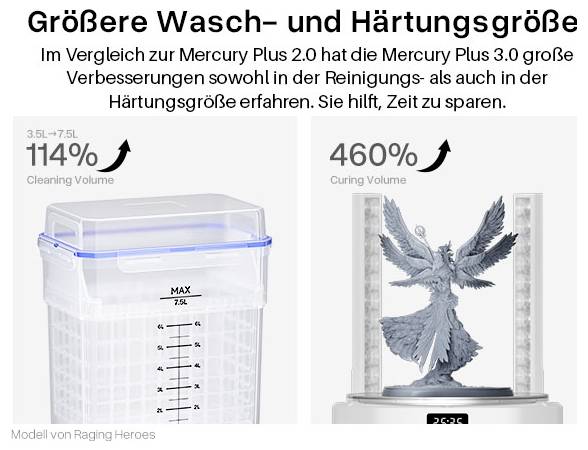

- Size-Upgraded for Larger Capacity
- Upgrade to the Mercury Plus V3.0 for increased capacity and maximized efficiency. Featuring a generous 7.5 L cleaning capacity (114 % more than V2.0) and a curing area increased by 460 %, you can process large or multiple models at once with ease.

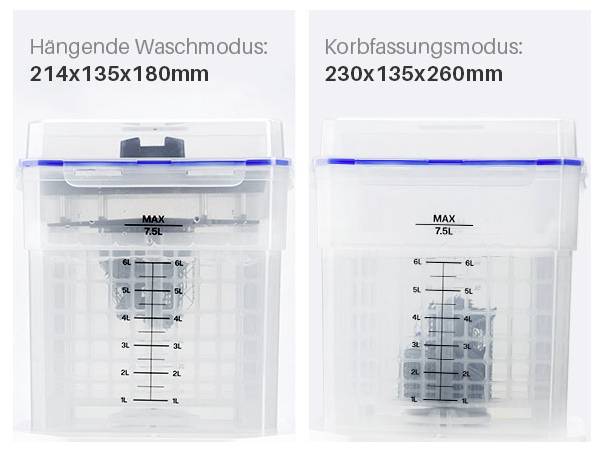

- Dual Cleaning Options
- Choose between two practical cleaning options. In ""Basket"" cleaning mode, simply place your model directly into the basket for a maximum washing volume of 230 mm x 135 mm x 260 mm. In ""Hanging"" cleaning mode, attach your print platform directly to the adjustable support brackets, which accommodate platforms up to 10 inches for a perfect fit and a maximum washing volume of 214 mm x 135 mm x 180 mm.
- Thorough Cleaning
- Equipped with an improved POM bearing, the Mercury Plus V3.0 ensures smoother rotation and stronger water turbulence at high speeds. This delivers highly efficient cleaning and thorough removal of resin residue.

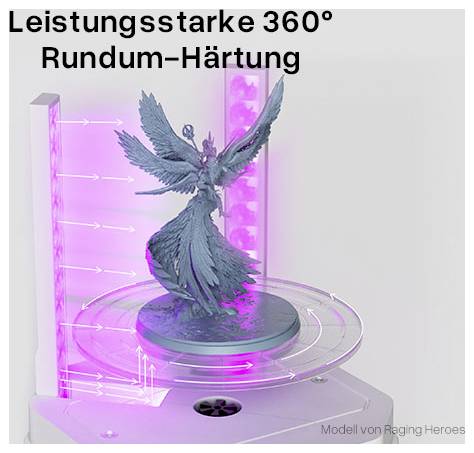

- High-Performance 360° All-Around Curing
- The 360° rotating table features 24 powerful 405 nm UV LEDs to guarantee fast, uniform curing that captures every detail. Innovative lamp columns and reflective mirrors underneath the transparent table optimize light refraction for thorough top-to-bottom curing and premium surface quality.

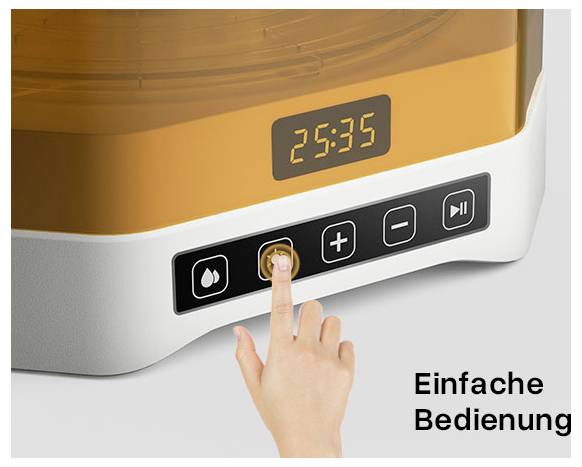

- Simple Operation
- The intuitive touch panel allows you to easily read set values and remaining time. Conveniently adjust washing and curing times up to a maximum of 30 minutes to achieve consistently optimal results.
- Anti-UV Protective Cover
- The UV-resistant cover filters 99.9 % of ultraviolet radiation to protect your eyes while ensuring efficient curing. For enhanced safety, an integrated microswitch immediately pauses operation when the cover is removed.
- Ideal Compatibility
- Specifically designed for all ELEGOO resin 3D printers, this device is also compatible with most LCD, DLP, and SLA 3D printers on the market for seamless post-processing. Please note that the print platform must be removed for Jupiter series cleaning; for other models, refer to the maximum wash volume specifications.
Technical specifications
- Operational Features
- Control Method: Touch Button
- Time Setting: 0-30 minutes
- Curing Light Source: 405 nm

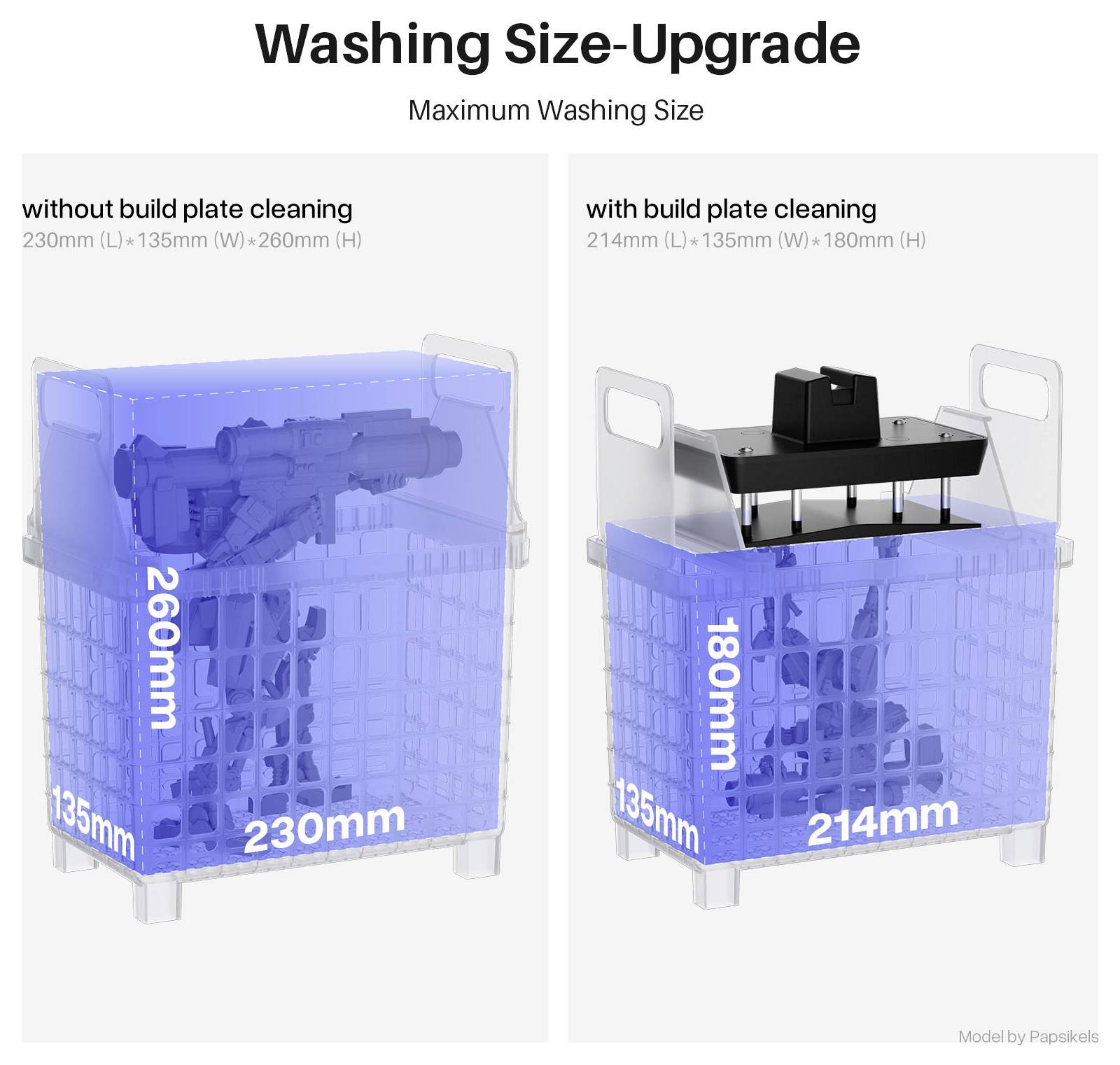

- Maximum Washing Size: 214 × 135 × 180 mm (with build platform)
- Maximum Washing Size: 230 × 135 × 260 mm (without build platform)
- Maximum Curing Size (Diameter × Height): 250 × 290 mm
- Physical & Electrical Specifications
- Machine Size: 302.5 × 302.5 × 412.5 mm
- Net Weight: 4.7 kg
- Rated Power: 60 W
- Power Requirements: 100-240 V AC, 50/60 Hz, 24 V, 2.5 A
- Compatibility
- Compatible Models: MARS series, MARS 2 series, MARS 3 series, MARS 4 series, SATURN, SATURN S, SATURN 2 series, SATURN 3 series, SATURN 4 series
- Curing Time Setting
- For models with a diameter smaller than 30 mm, it is recommended to set the curing time to 2 minutes. If the model structure is complex, it is advised to increase the curing time accordingly.
- Product type
Cleaning and UV curing device
- Factory colour
Orange
White
- Width
302.5 mm
- Height
412.5 mm
- Depth
302.5 mm
- Weight
4.7 kg
- Power consumption (max.)
60 W
- Dim
(W x H x D) 302.5 x 412.5 x 302.5 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3771036 Elegoo Mercury Plus 3.0 Cleaning and UV curing device
Description
Size optimized for more capacity
Upgrade to Mercury Plus V3.0 for greater range and efficiency. With a generous cleaning capacity of 7.5 liters (114 % more than with V2.0) and a 460 % larger hardening area, you can easily process large or several models at the same time.
Two cleaning options
Two convenient cleaning options are available. In ""Basket" cleaning mode, you can simply place your model directly in the basket, WAS allows a maximum wash volume of 230 mm x 135 mm x 260 mm. In the "Suspended" cleaning mode, attach your print platform directly to the adjustable brackets, which hold platforms up to 10 inches for a perfect fit and offer a maximum wash volume of 214 mm x 135 mm x 180 mm.
Thorough cleaning
Equipped with an improved POM bearing, the Mercury Plus V3.0 ensures smoother rotation and greater water movement at high speeds. This provides for a highly efficient cleaning and a thorough removal of resin residues.

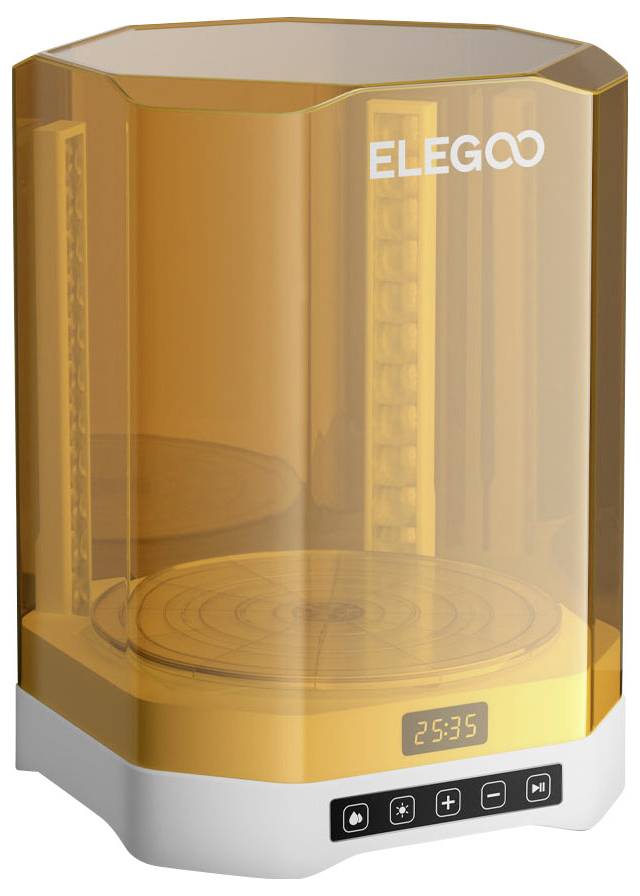

Powerful 360° all-round hardening
The rotating turntable around 360° has 24 powerful 405 nm UV LEDs to guarantee fast and uniform curing that captures every detail. Innovative light columns and reflective mirrors below the transparent rotating plate optimize the refraction for thorough curing from top to bottom and first-class surface quality.
Easy to Use
The intuitive touch panel enables you to read the set values and the remaining time easily. Easily adjust the washing and curing times to a maximum of 30 minutes for consistently optimal results.
Anti-UV protective cover
The UV-resistant cover filters out 99.9% of the ultraviolet radiation to protect your eyes, while guaranteeing efficient curing. An integrated micro switch provides additional safety, which interrupts the operation immediately when the cover is removed.
Ideal compatibility
This device has been specially developed for all ELEGOO Resin 3D Printers, but is also compatible with most LCD, DLP and SLA 3D printers on the market, and WAS enables seamless post-processing. Please note that the printing platform must be removed for Jupiter Series cleaning; for other models, please refer to the maximum wash volume information.
This text is machine translated.

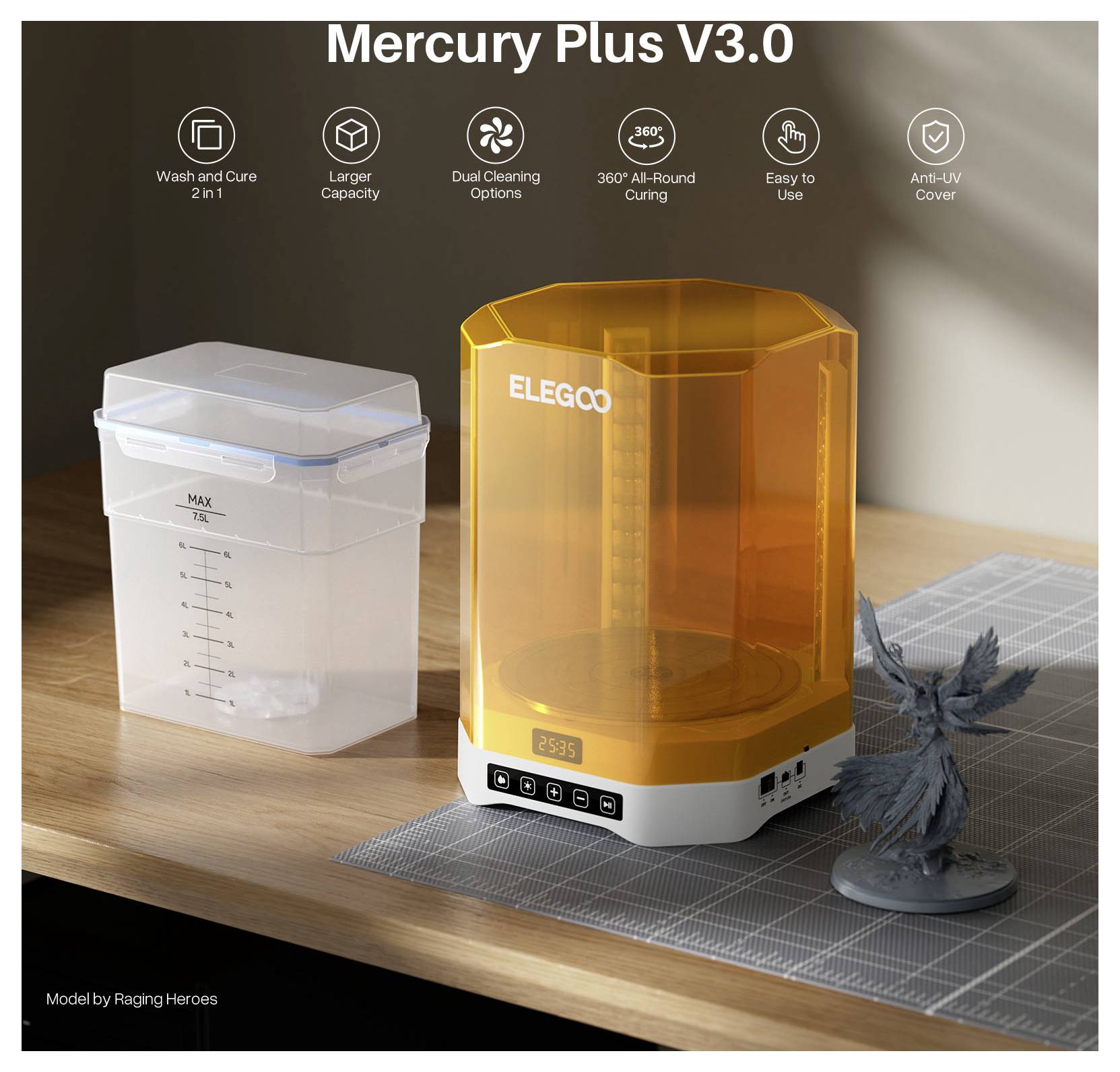

Features

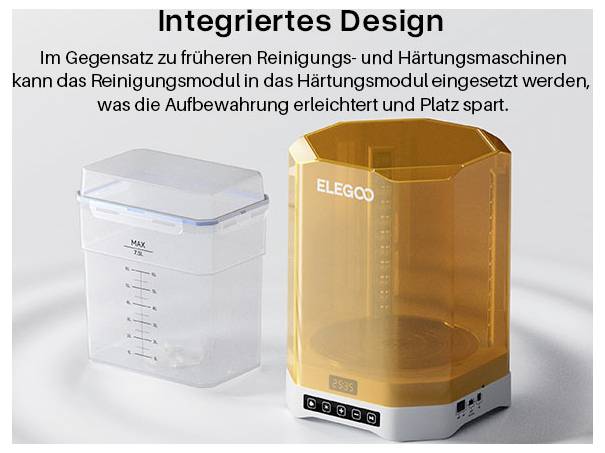

- Washing and finishing 2 in 1
- Large cabbage
- Dual cleaning options
- 360° all-around hardening
- Easy to use
- Anti-UV cover

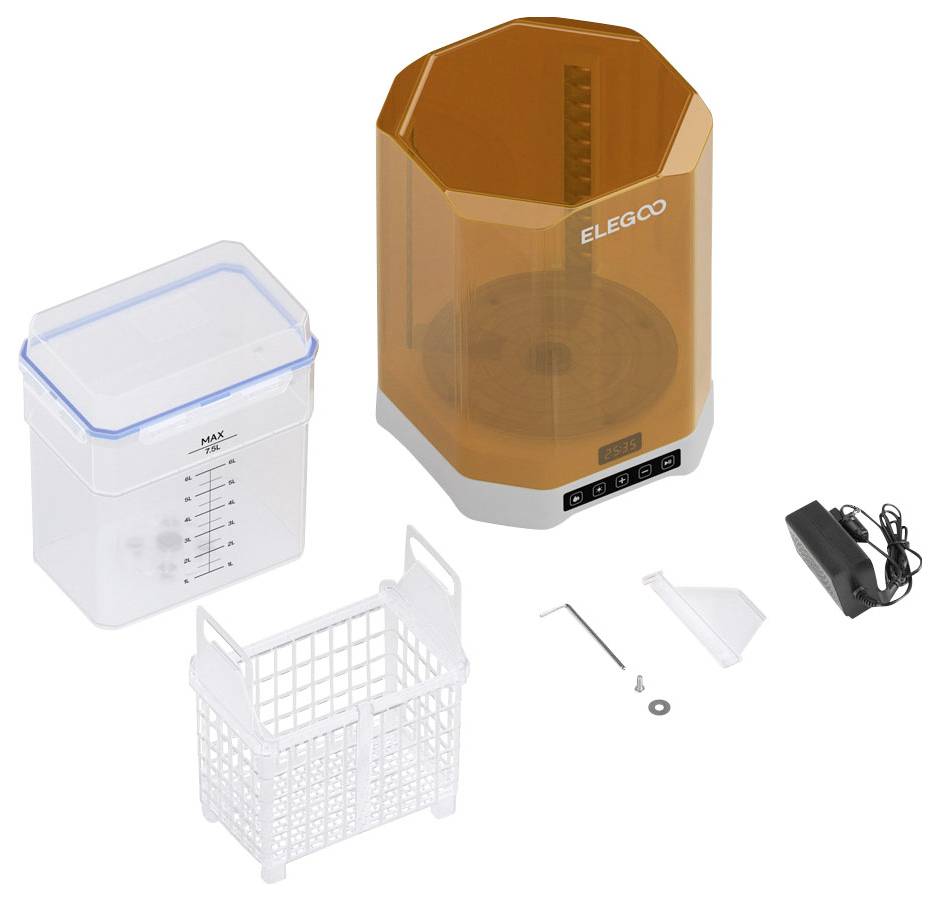

Scope of delivery
- Mercury Plus V3.0

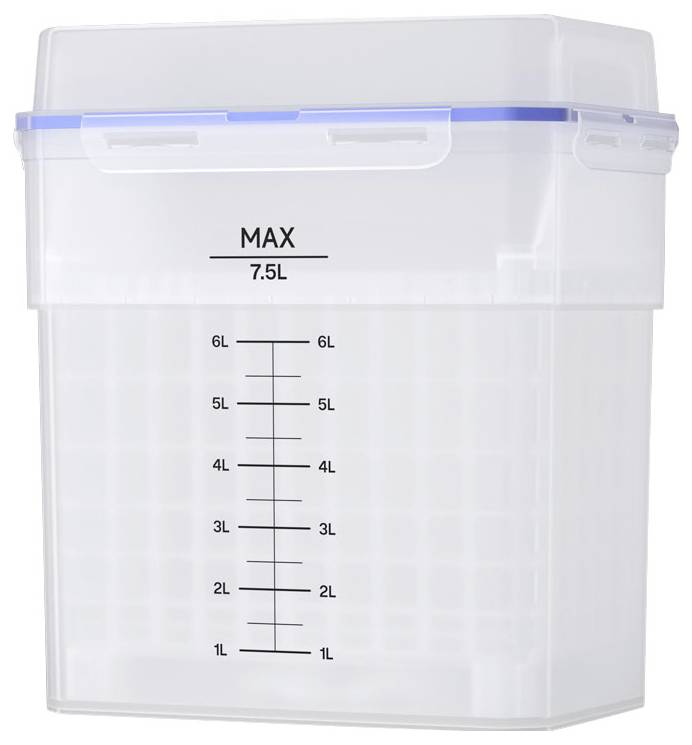

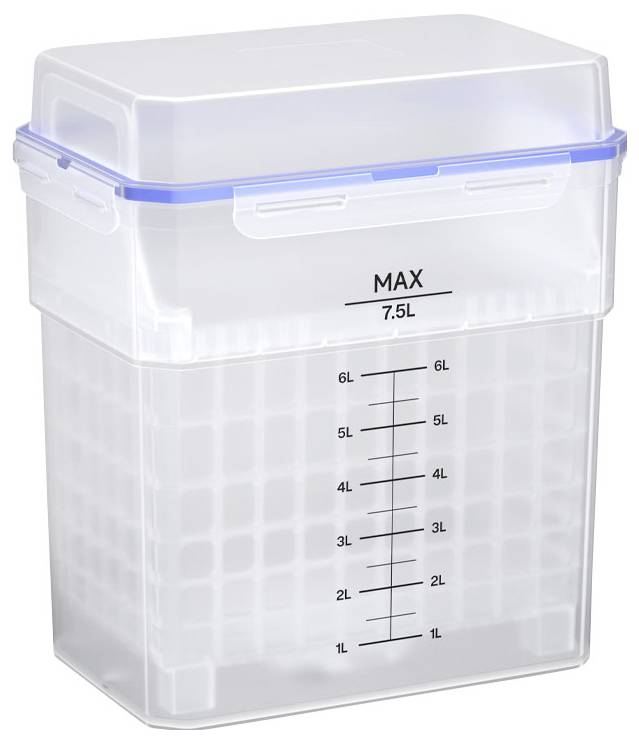

- Cleaning bucket
- Curing turntable
- Cleaning basket
- 2x Adjustable bracket
- User manual
- Tools
- Power adapter
