Name: Emko EZM-4430.2.00.0.1/00.00/0.0.0.0 Preset counter
Brand: Emko
SKU: 128894
Availability: InStock

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

The 'EMKO EZM-4430' display shows 'OP: 000158' in red and 'SV: 002008' in green. Below are blue buttons: 'P', 'SET', 'RESET'.

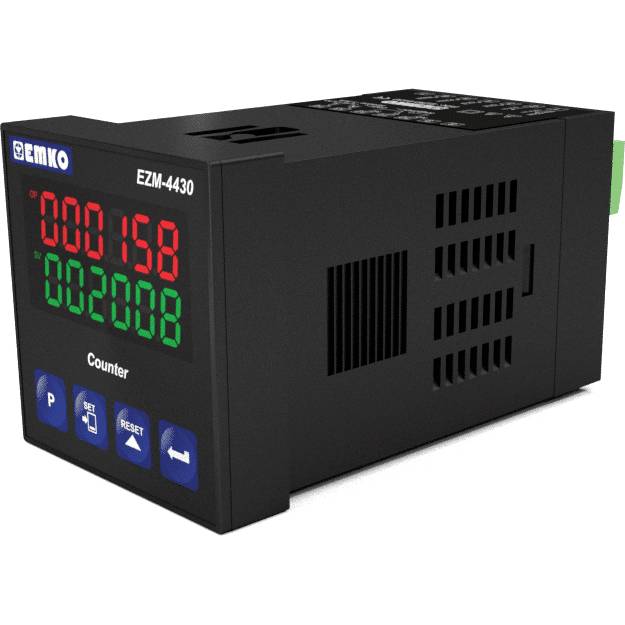

Electronic counter by EMKO, Model EZM-4430, with digital displays for two values. Setting and reset buttons located at the bottom.

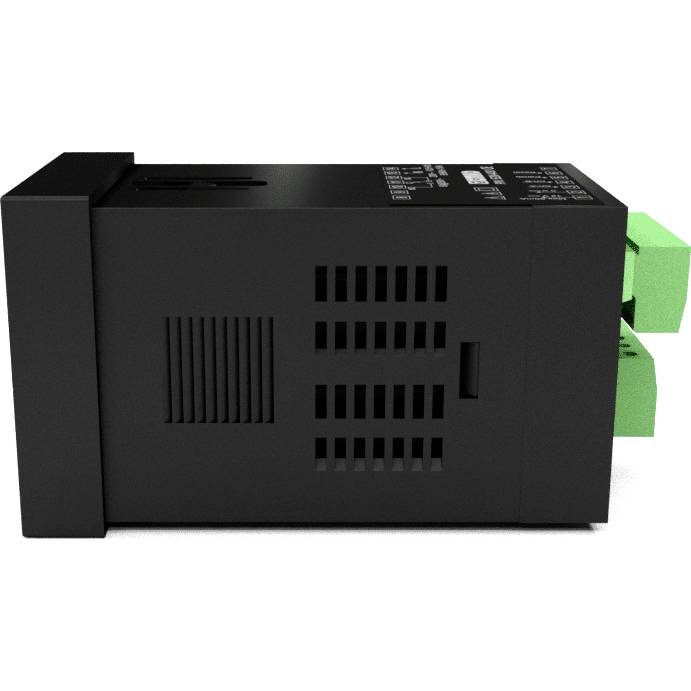

View of a black electrical device with green connection terminals on the right side. Device shows ventilation openings and labelling.

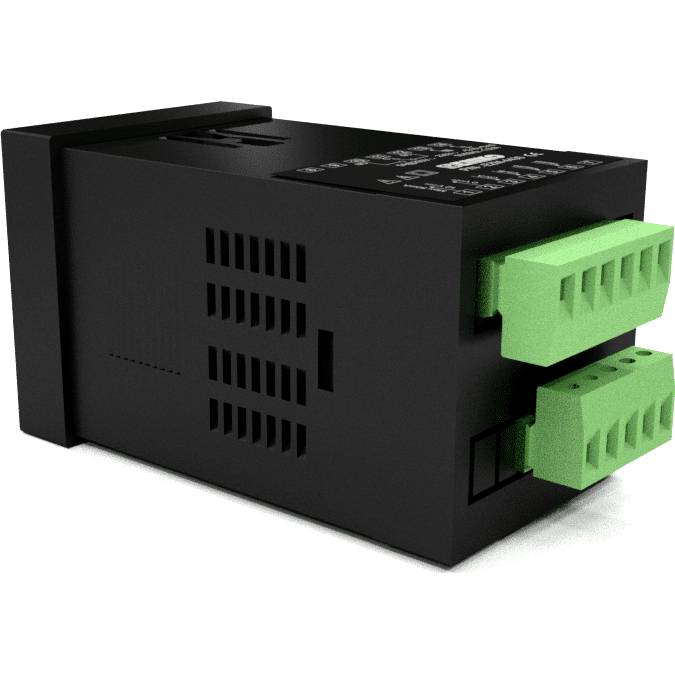

Black electronic device with green connection terminals, possibly a control unit or relay, positioned horizontally.

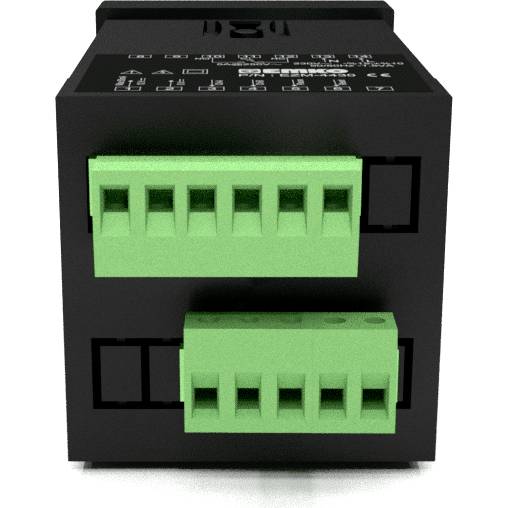

A rectangular electronic device with two green terminal connectors on the front, likely for electrical connections.

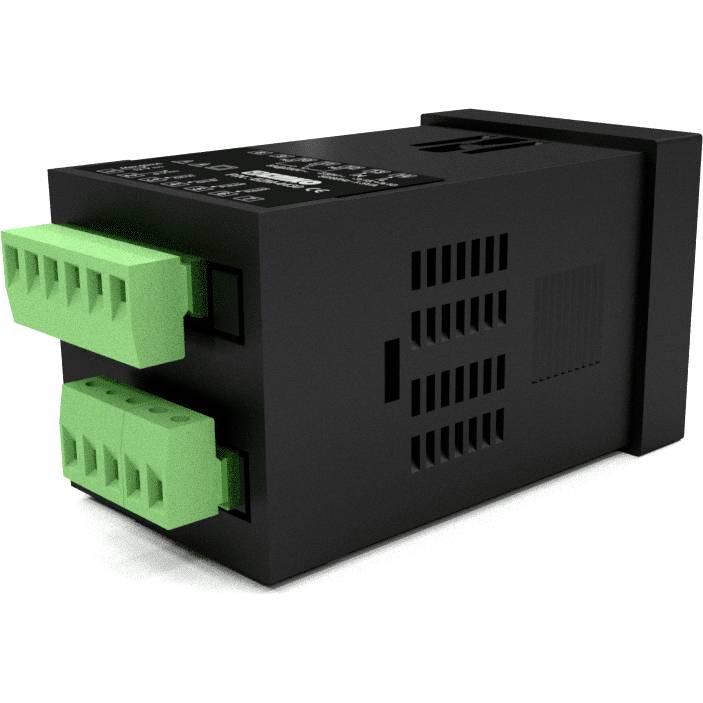

A black electronic device with two green connectors, likely used for controlling electrical signals or current.

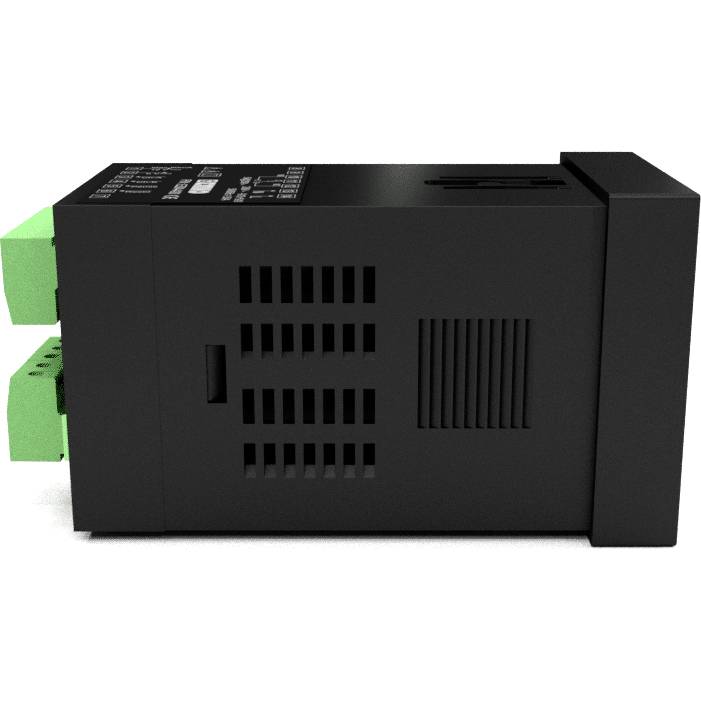

A black, rectangular electronic device with green ports on the left side. It appears to be a control unit or connection component.

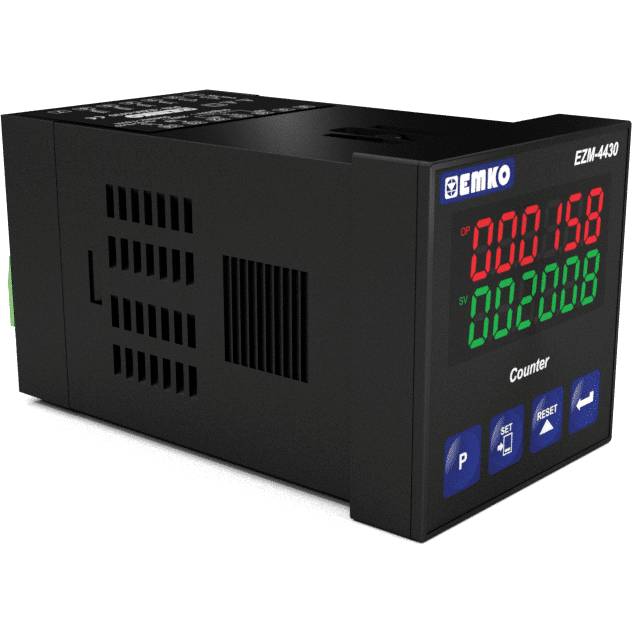

A digital counter with red and green displays shows values '000158' and '02008'. Programming and reset buttons are visible.

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

7 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 129.99 / piece)

€ 129.99

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

6-digit actual value display
6-digit setpoint display
1 preset value
Cha-CHB count input
Reset and pause input
NPN or PNP selectable
Automatic or manual reset
INC,DEC,INC/INC,INC/DEC,UP/DOWN, x1 / x2 / x4 Phase shift count selection
Multiplication factor and selectable decimal point position

Technical specifications

Product type: Preset counter

Reading type: Pulse

Reading range (min.): 0 Hz

Type: EZM-4430.2.00.0.1/00.00/0.0.0.0

Reading range (max.): 20000 Hz

Display technology: LED

: IP65 (on front)/IP20 (on back)

Recess width: 48 mm

Display (counts): 999999

Recess height: 48 mm

Operating voltage: 24 V DC/AC

Dim: (L x W x H) 96 x 48 x 48 mm

Weight: 210 g

Max. operating voltage: 24 V DC

Min. operating voltage: 24 V DC

Display lighting: red
green

Features: Reset function

Factory colour: Black

Width: 48 mm

Height: 48 mm

Length: 96 mm

Frame width: 48 mm

Frame height: 0.48 cm

Documents & Downloads

Datasheet

Datasheet 128894 Emko EZM-4430.2.00.0.1/00.00/0.0.0.0 Preset counter

User & Safety Instructions

User & Safety Instructions 128894 Emko EZM-4430.2.00.0.1/00.00/0.0.0.0 Preset counter

Description

The Emko EZM-4430 multi-function counter is ideal for use in manufacturing processes. The multifunction counter counts up, down or up and down depending on the setting. The counter inputs A and B are suitable for the connection of switches, rotary encoders, capacitive sensors or proximity switches. With the integrated 12 V DC output, sensors or rotary encoders can be supplied.
