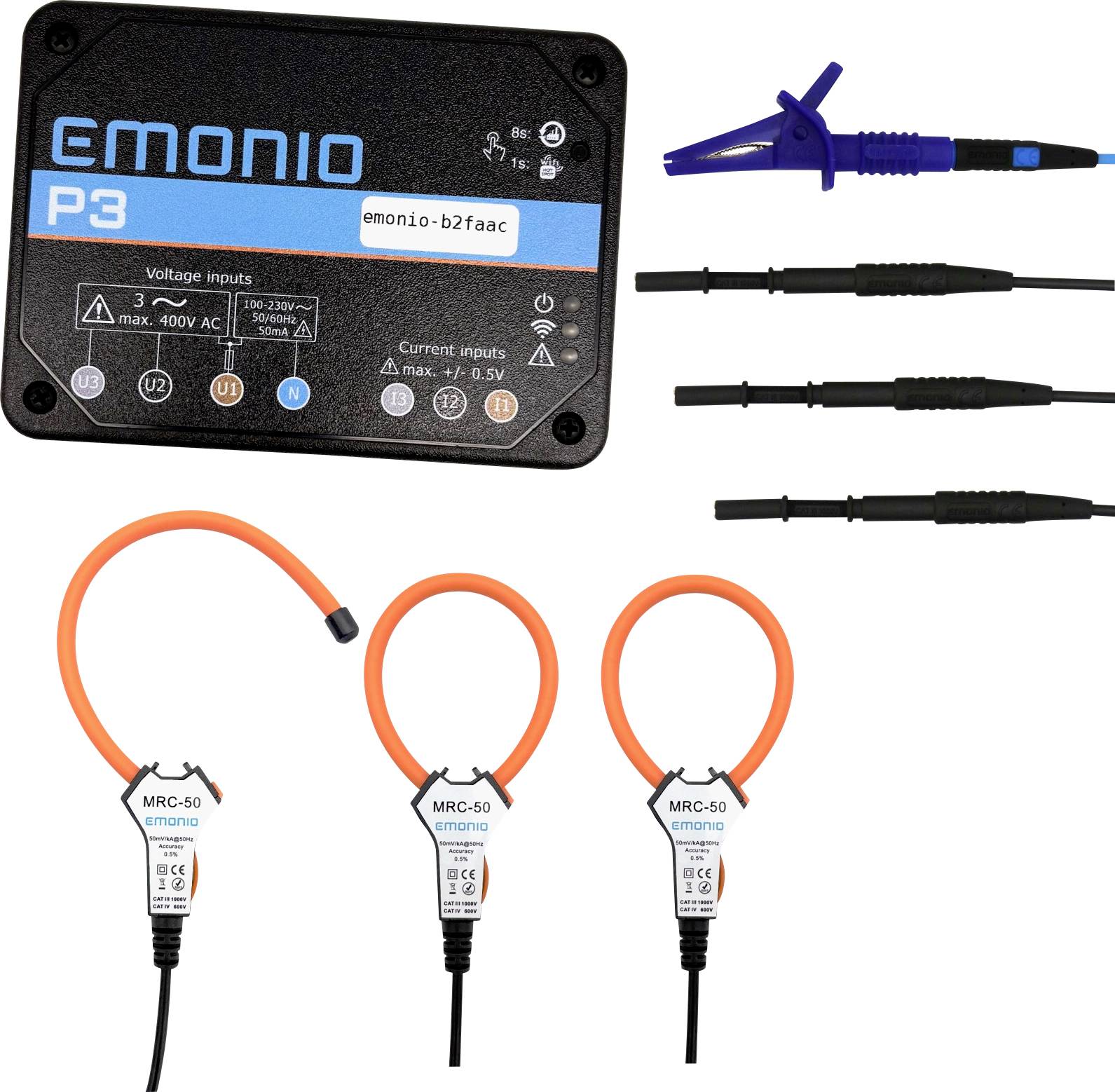

Electrical device setup with 'EMONIO P3' unit, voltage and current inputs shown, three MRC-50 sensors with orange loops, and connecting cables.

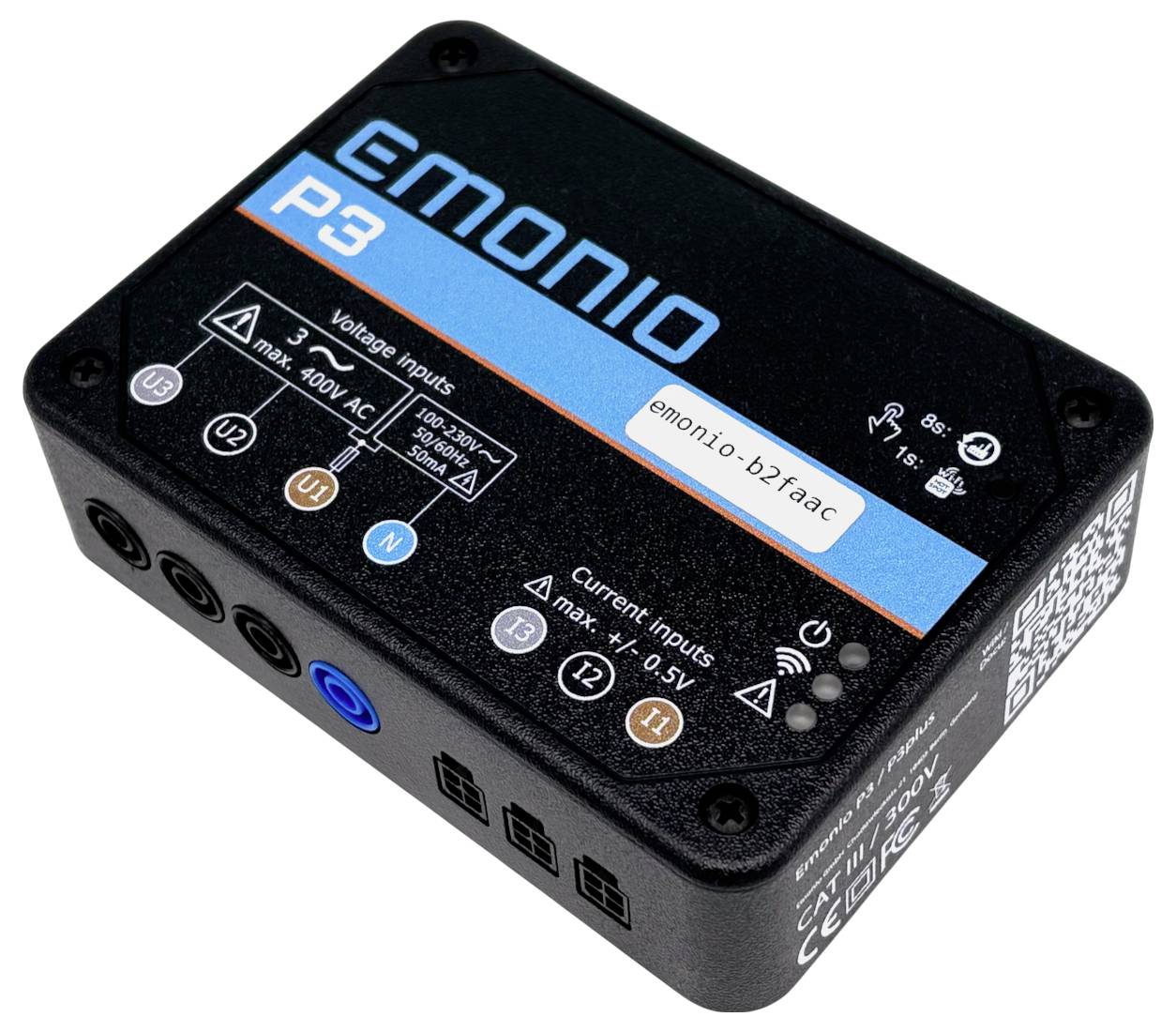

Emonio P3 energy monitoring device with voltage and current input labels, a WiFi symbol, and QR code on the front panel.

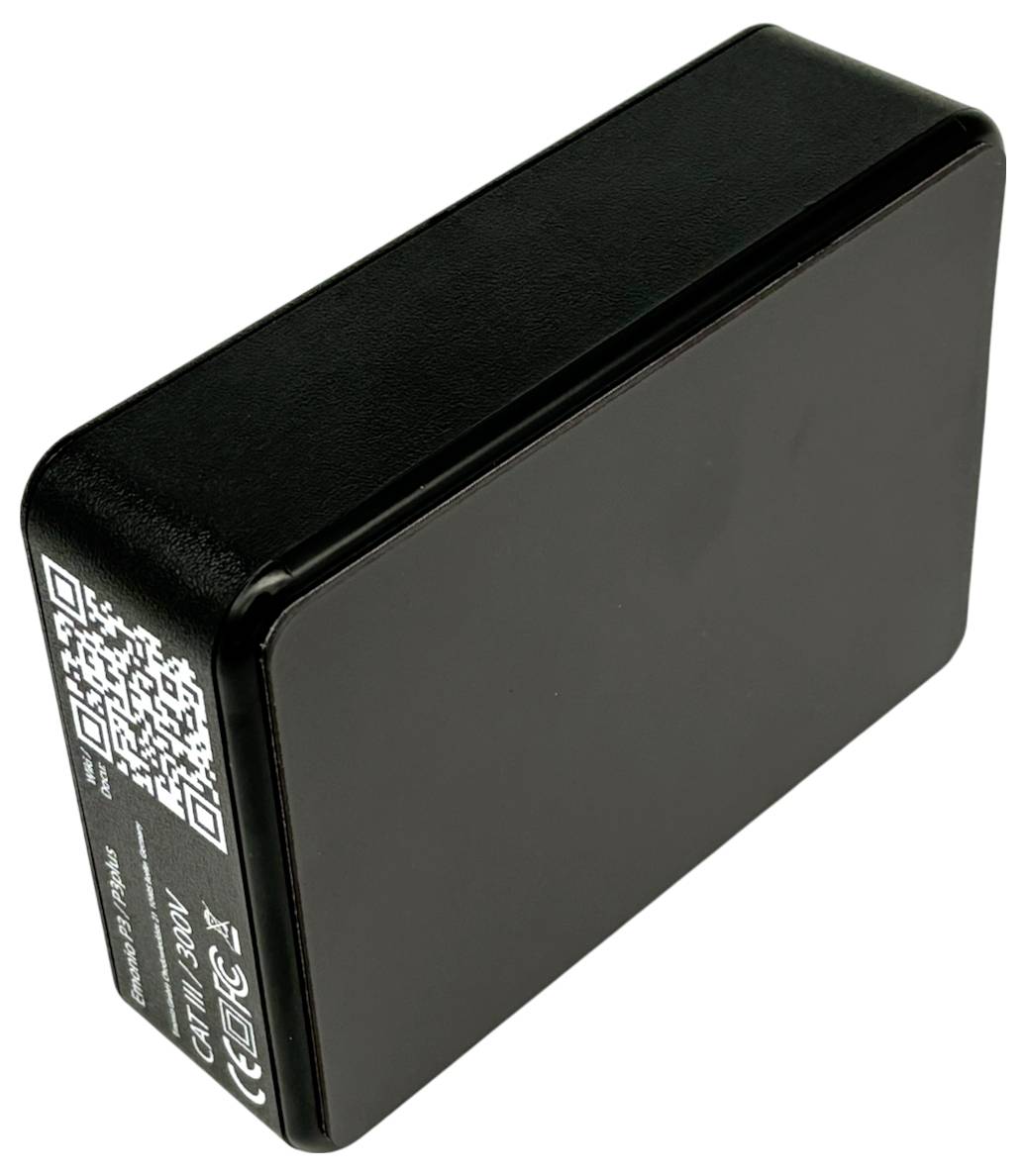

A small black electronic device with a QR code on the side.

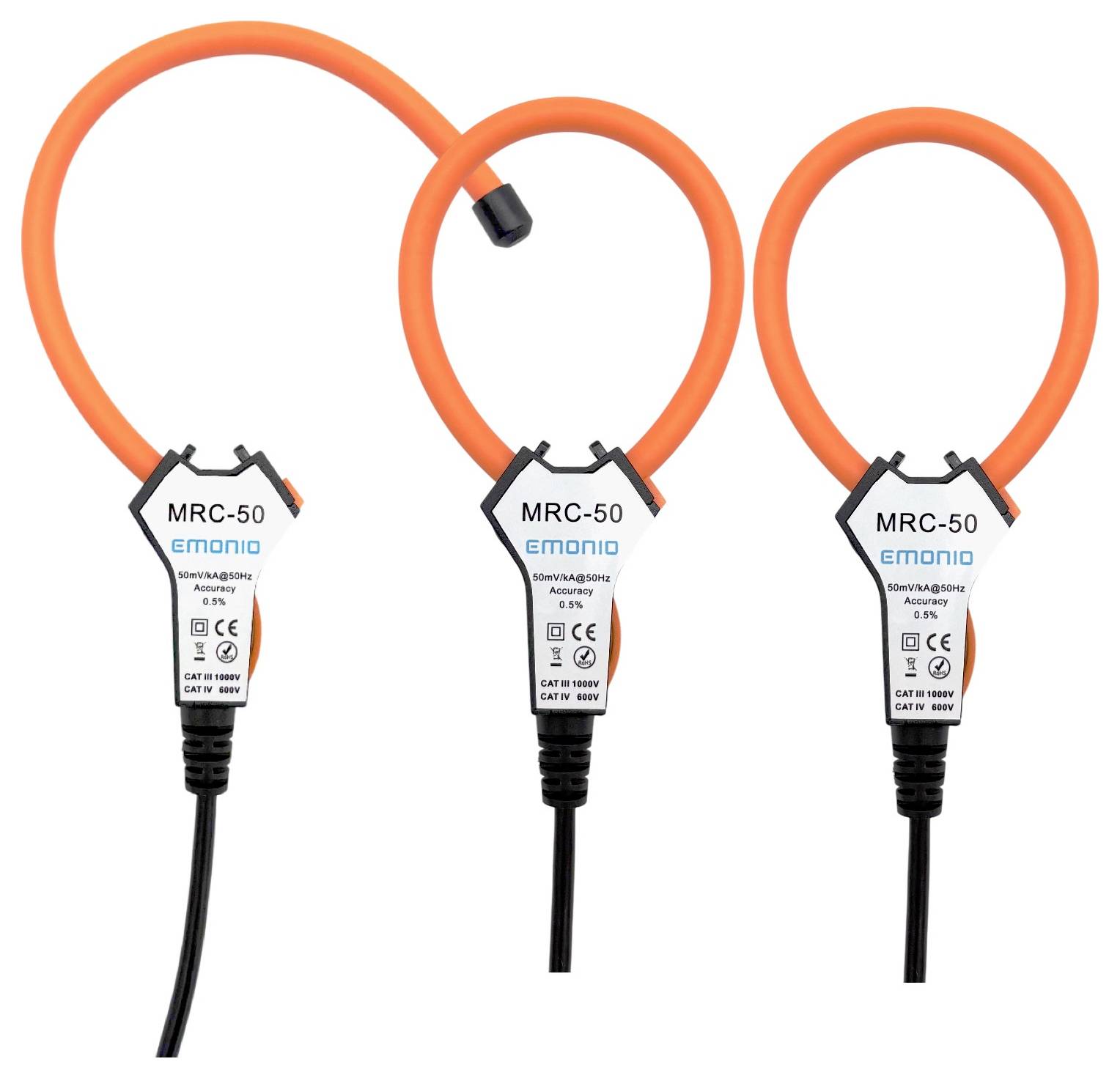

Three orange flexible current probes labeled 'MRC-50', each connected to a black cable.

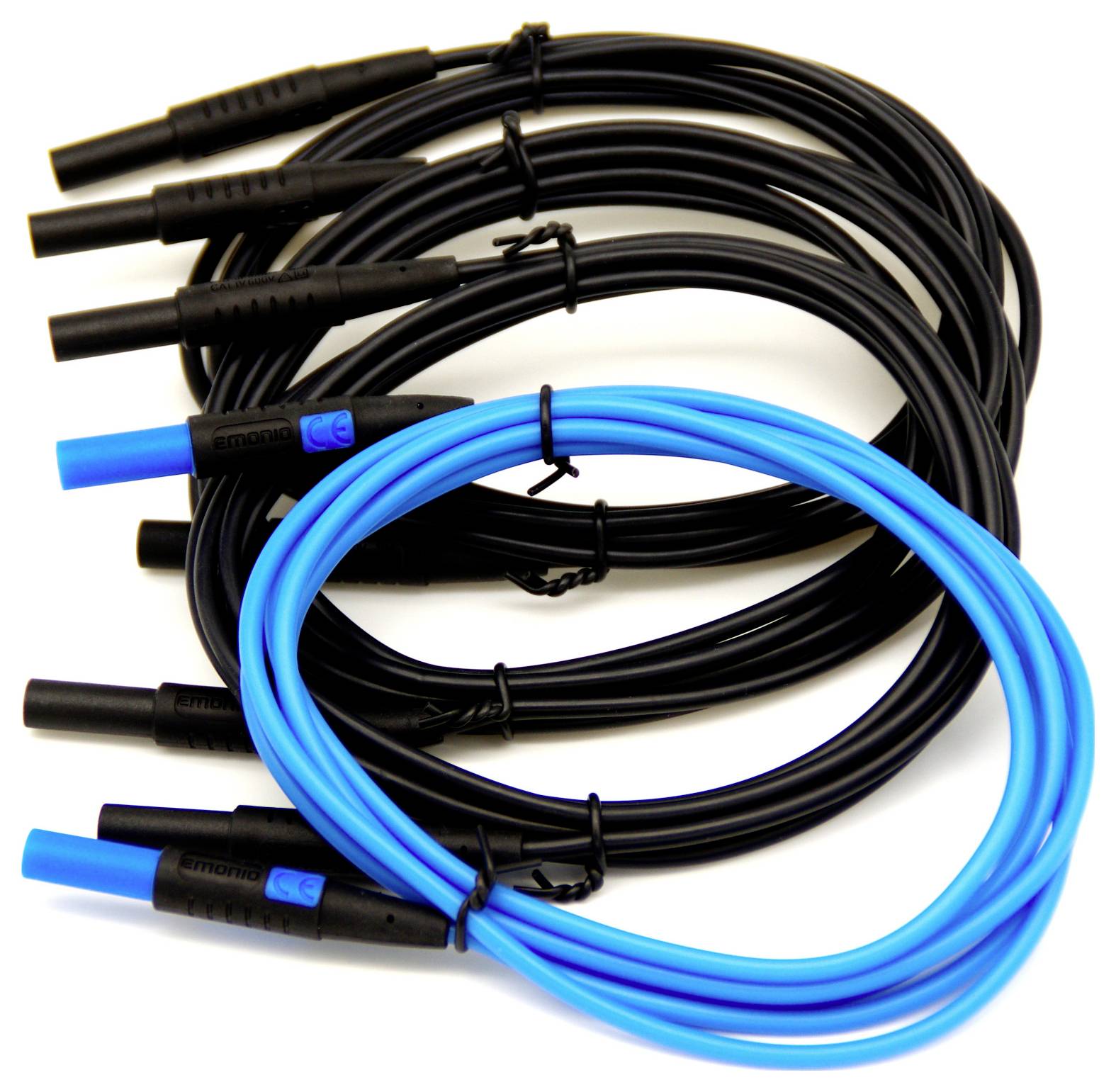

Five coiled black cables and one blue cable with connectors, arranged neatly.

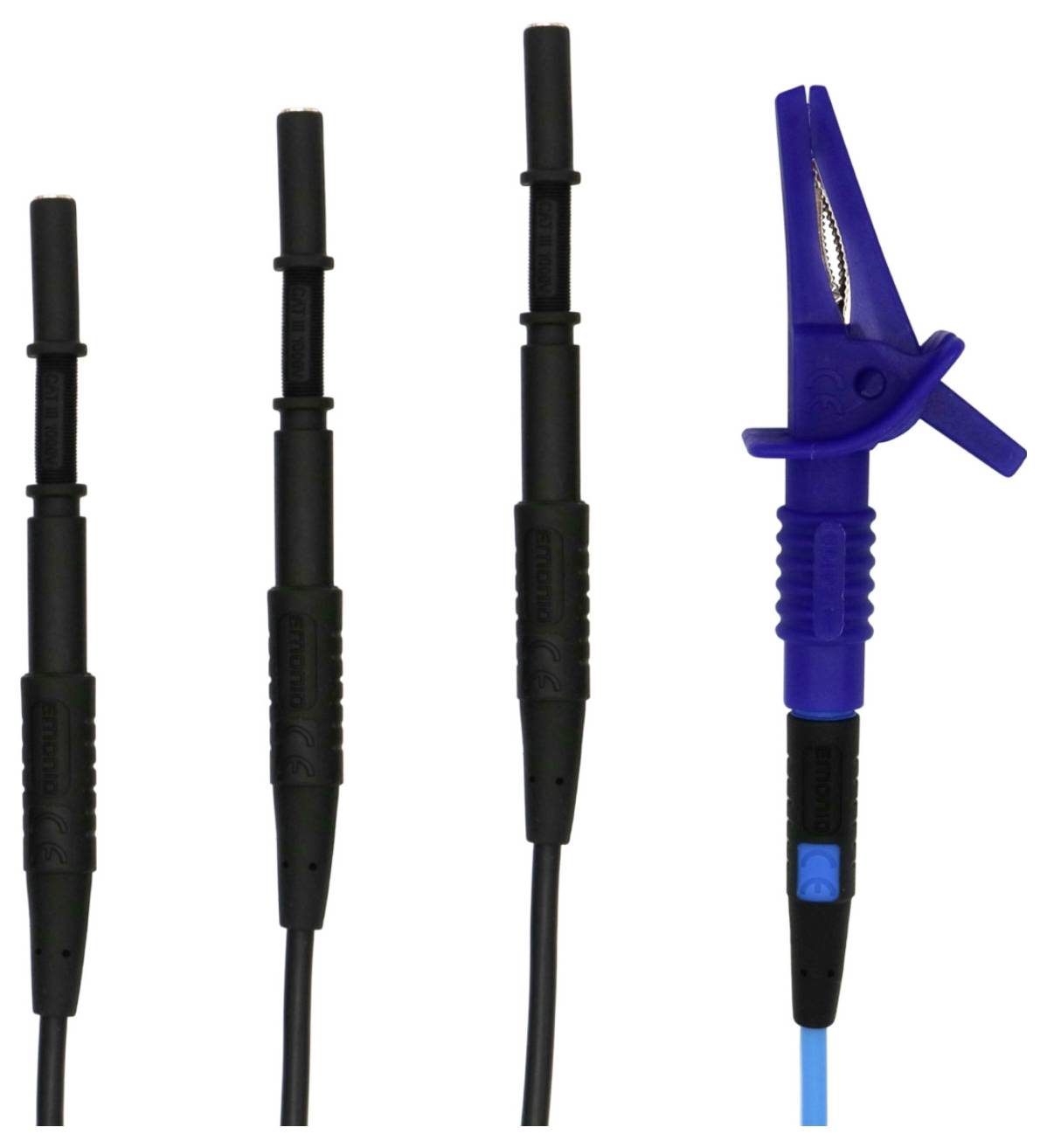

'Three black test probes and one blue clamp with wires for electrical testing, arranged vertically against a white background.'

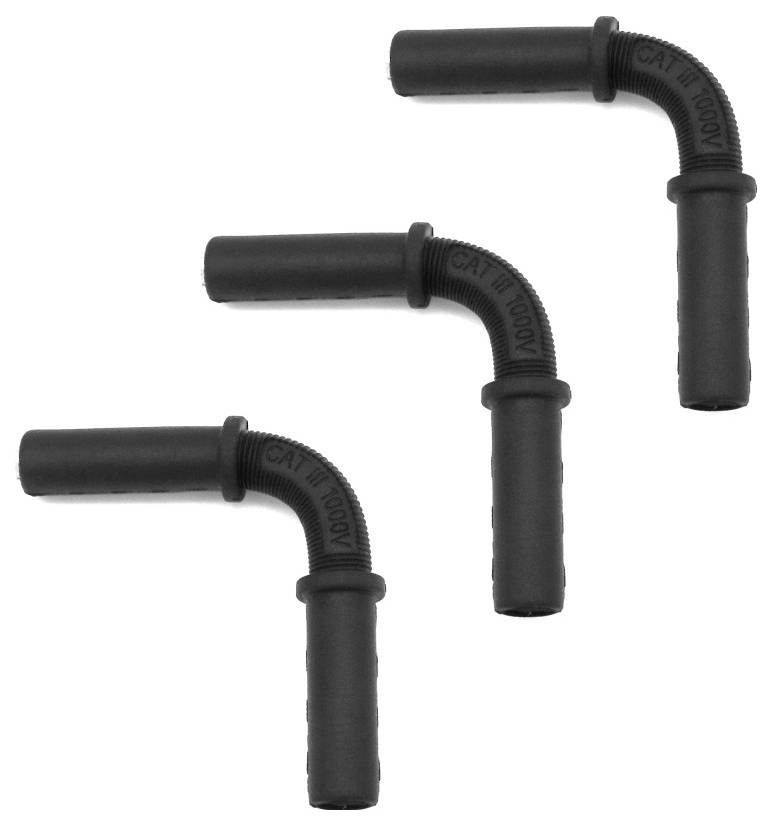

Three identical black rubber hoses with a 90-degree bend, featuring 'CAT No 00007' printed on each.

A cylindrical glass fuse with metal caps on both ends, used to protect electrical circuits from overcurrent.

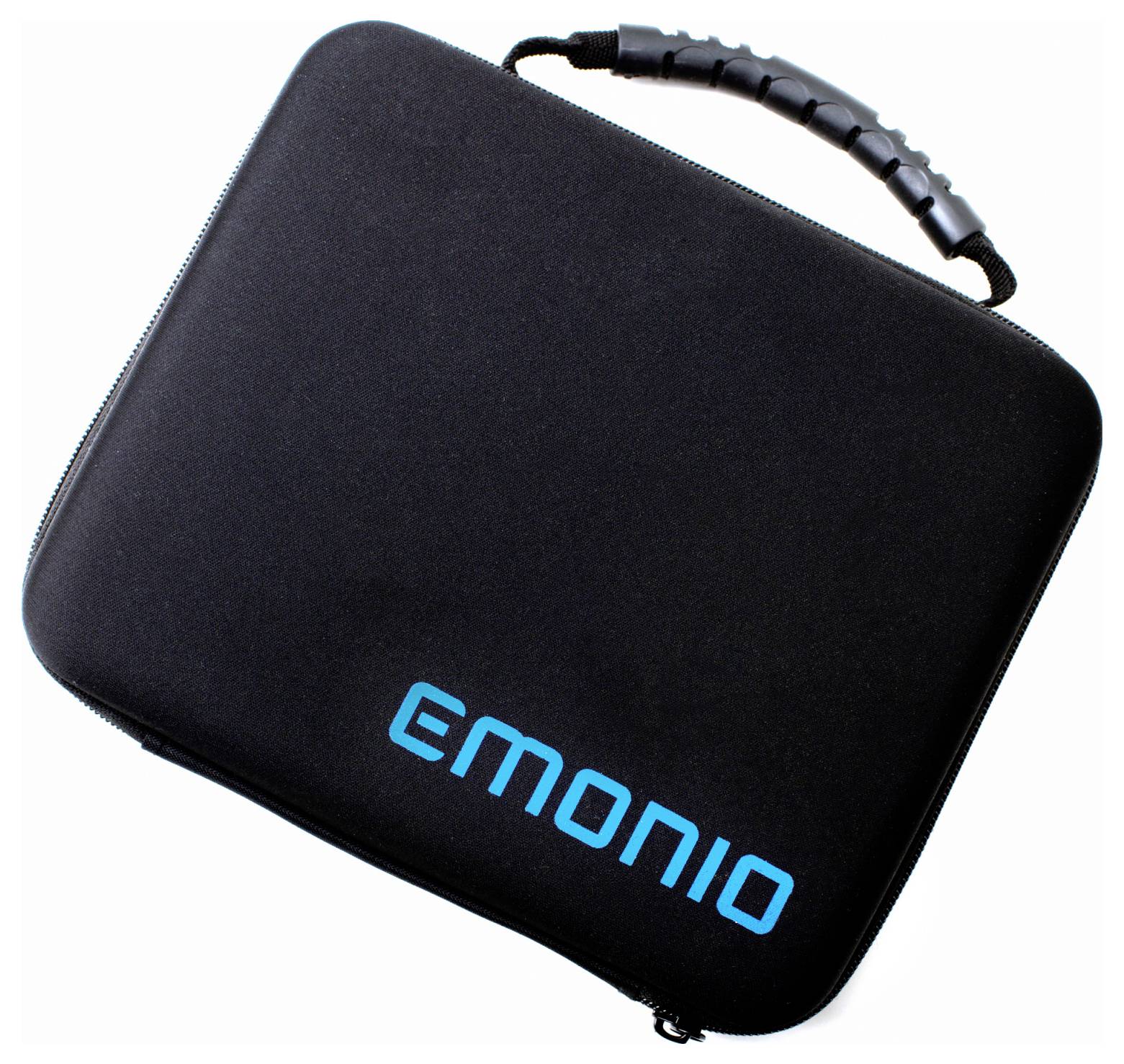

A black case with the word 'EMONIO' in blue lettering, featuring a textured handle at the top.

1/9

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 898.32 / piece)

€ 898.32

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Emonio P3 50mm Energy consumption meter set

Emonio

Technical specifications

Power supply: Via test leads N and U1 and integrated power supply
Operating voltage 100-240V ±10%, 50Hz/60Hz (between neutral and U1)

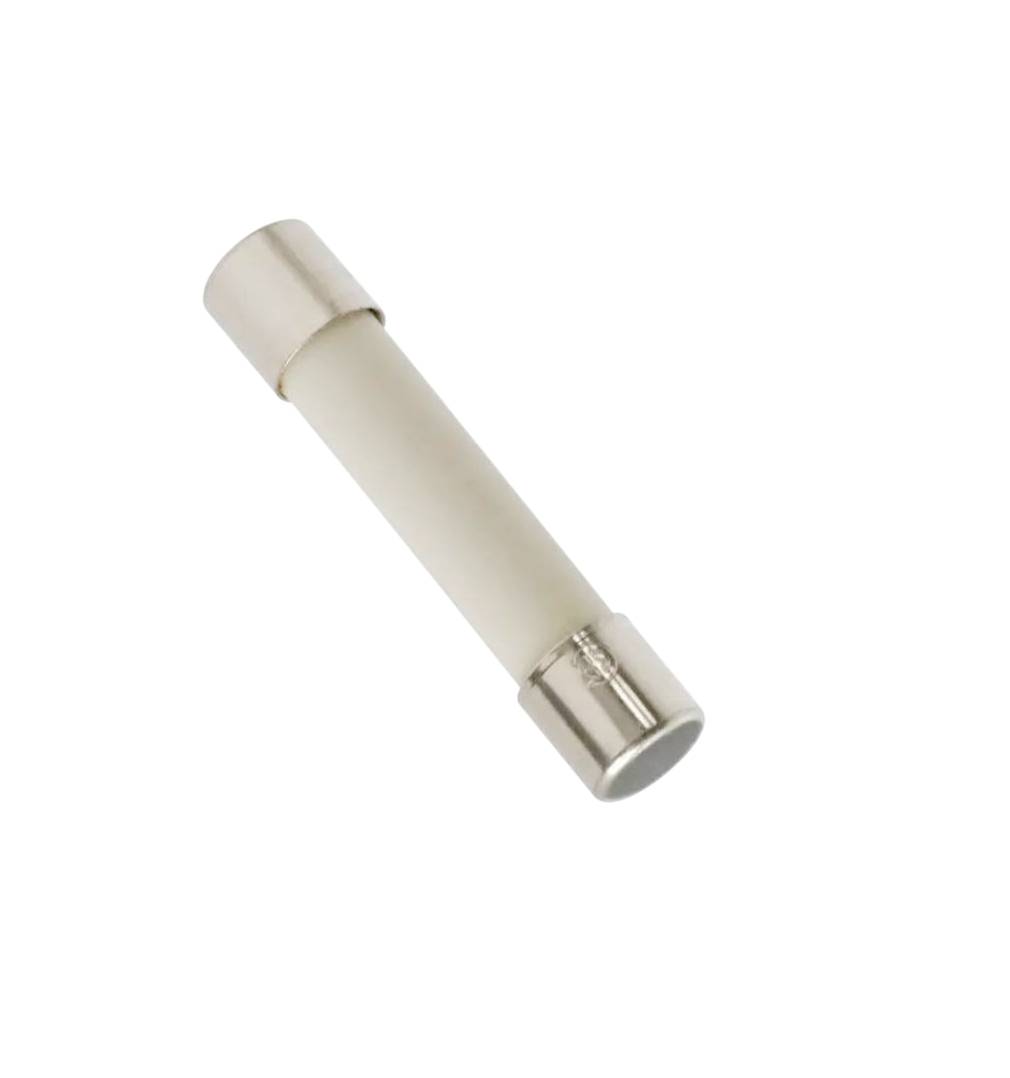

Fuse: Hollywood 6FF-0250H1: 6x32mm, 250mA FF, 1000V, Ik=100kA
3+1 voltage inputs, 3 current inputs
Sampling rate 32,000 samples/s
VOLTAGE INPUT LEVEL: 230V: N <=> U1, 400V: U1 <=> U2 = <> U3
Level current inputs: Max. ±0.5Vpp
Measurement uncertainty: ± 1% for U, I, P, S, L and Q, all devices are calibrated and are being used
Shipped with dated initial certificate.
Power quality
Measurements: IEC 61000-4-30 Class S, IEC 61000-4-7 harmonic analysis,
Total harmonic distortion, power factor, IEC 62053-21
AND IEC 62053-22; EN50470-3; OIML R46; AND ANSI C12.20
Supports reactive power standards: IEC 62053-23, IEC 62053-24
Telemetry data buffer: Fully automatic up to 1 year in the event of an Internet connection failure
Data storage: 32 GB data storage on integrated SDHC card, suffices up to two
Years for a second record
Current consumption (max., typical): 50mA / 15mA
Communication: WiFi: 802.11 b/g/n/e/i (802.11n @ 2.4 GHz up to 150 Mbit/s or
BT: V4.2 BR/EDR and BT Low Energy (BLE)
Security: IEEE 802.11 with all standards, incl. WFA, WPA/WPA2/WPA2-Enterprise and WAPI, TLS 1.2
Firmware update: OTA (via network) / manual transmission with browser
WiFi modes: Station/SoftAP/SoftAP+station/P2P
ENCRYPTION: AES/RSA/ECC/SHA
Network protocols: MQTT, Modbus/TCP, DHCP, HTTP, NTP, SMTP, FTP, Telnet
Display: 3 status LEDs
Operating conditions: -5ºC to 40ºC, max. 80% RH, 2000m max. Height
Measuring category CAT III / 300V (according to EN61010-2-030)
Overvoltage category: OVC III (according to EN61010-1)
IP class IP20
Mounting: Via magnetic rear side or DIN rail mounting kit
Weight 237g
Dimensions in mm (WxHxD): 116.0 x 84.5 x 35.40 mm
