Enda ETM2432-LV TDR Multifunction 8 V AC, 10 V DC, 12 V DC, 24 V AC, 24 V DC, 30 V DC 1 pc(s) Time range: 0.01 min - 99.
EAN:
Part number:
Item no:
Product type
TDR
Type
Multifunction
Functions
Selectable delay
Operating voltage
8 V AC
10 V DC
12 V DC
24 V AC
24 V DC
30 V DC
Min. operating voltage
8 V AC
10 V DC
Datasheet (PDF)
Number
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
Only 9 Piece(s) available
Highlights & Details

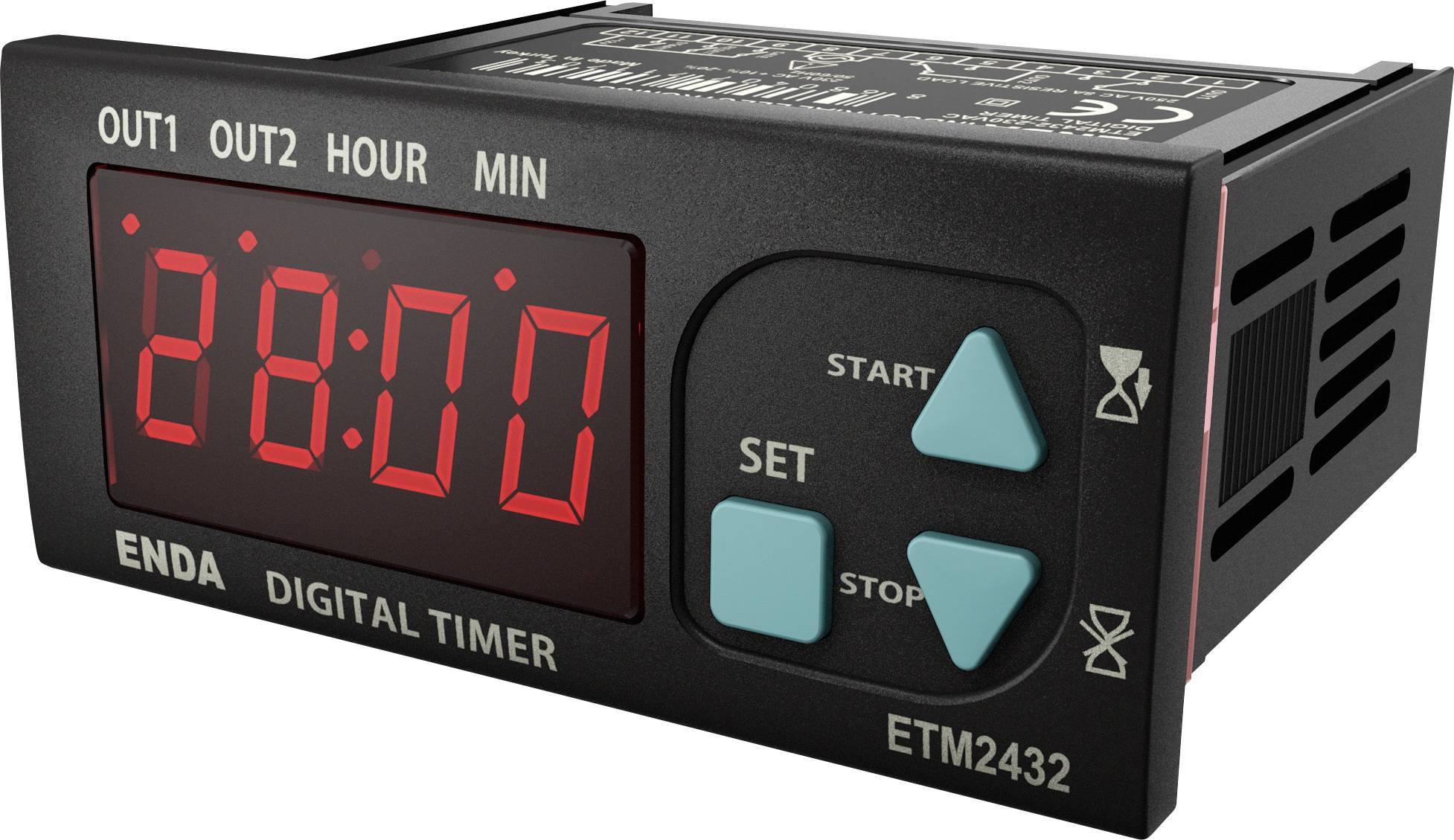

Enda ETM2432 – Digital timer relay 2 relay, timer function with start/reset/gate – 77×35 mm mounting, IP65 front
- Double-contact output for time control
- External start, reset and gate input
- Selection between hour, minute and minute seconds displays
- Scale 0:01...99:59 minutes, 0:01...99:59 hours
- The time increase and reduction steps can be adjusted as required.
- Countdown
- Start and stop facility on front plate
- 8 different warning sound choices
- Lower and upper limits of the setpoint can be adjusted.
- CE-labeled according to EN standards
Technical specifications
- Power consumption: Max. 7VA
- Display: 4 digits, 12.5mm, 7 segment red LED
- Time step width: 1...30 can be selected
- Time accuracy ±1%
- Product type
TDR
- Type
ETM2432-LV
- Type
Multifunction
- Connection
Screw terminal
- Functions
Selectable delay
- Operating voltage
8 V AC
10 V DC
12 V DC
24 V AC
24 V DC
30 V DC
- Min. operating voltage
8 V AC
10 V DC
- Max. operating voltage
24 V AC
30 V DC
- Operating voltage
8, 10 - 24, 30 V AC, V DC
- Contact type
2 change-overs
- Switching voltage (max.)
250 V AC
- Switching current (max.)
8 A
- Time range (min.)
0.01 min
- Time range (max.)
99.59 h
- Min. temperature
0 °C
- Max. temperature
50 °C
IP20 (back panel)
IP65 (front)
- Electrical lifespan
300,000 switching operations at 250V
- Durability
30 MIO. Switching cycles
- Width
35 mm
- Height
77 mm
- Depth
71 mm
- Dim
(W x H x D) 35 x 77 x 71 mm
- Industrial packaging
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3527755 Enda ETM2432-LV TDR Multifunction 8 V AC, 10 V DC, 12 V DC, 24 V AC, 24 V DC, 30 V DC 1 pc(s) Time range: 0.01 min - 99.
User & Safety Instructions
User & Safety Instructions 3527755 Enda ETM2432-LV TDR Multifunction 8 V AC, 10 V DC, 12 V DC, 24 V AC, 24 V DC, 30 V DC 1 pc(s) Time range: 0.01 min - 99.
Description
The Enda ETM2432 is a versatile, programmable digital timer relay for panel installation (DIN 43700, 77 × 35 mm). It possesses two relay outputs as changeover contacts (NO/NC), external control inputs (start, reset, gate) and a freely programmable time function (selectable from 0:01 to 99:59 min or h).
This text is machine translated.
This text is machine translated.
Scope of delivery
- Enda ETM2432-LV
