Enda ETM2432-230 TDR Multifunction 230 V AC 1 pc(s) Time range: 0.01 - 99.59 min 2 change-overs
EAN:
Part number:
Item no:
Product type
TDR
Type
Multifunction
Functions
Selectable delay
Operating voltage
230 V AC
Min. operating voltage
184 V AC
Datasheet (PDF)
Number
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
Highlights & Details

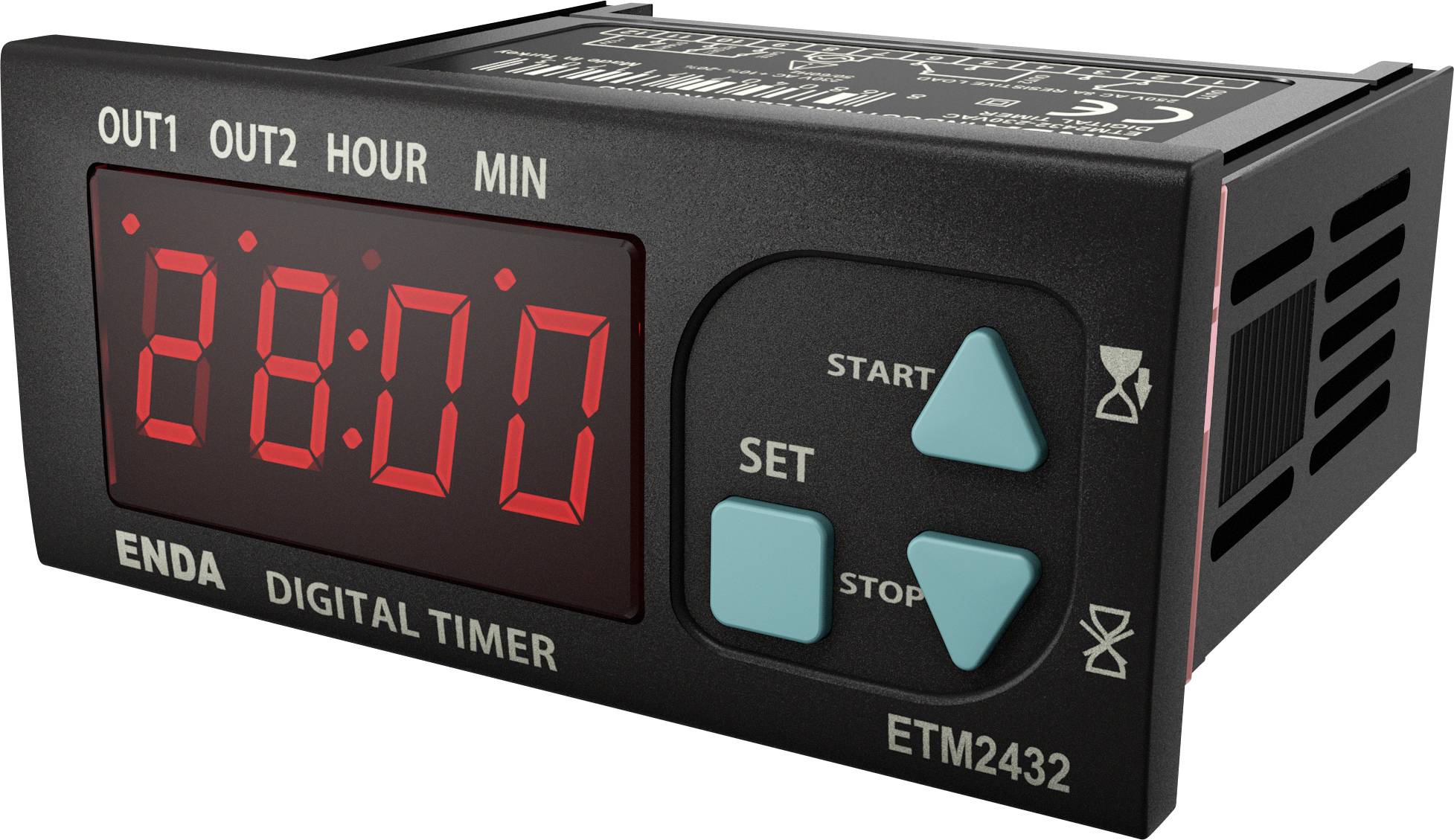

Enda ETM2432-230 digital time relay
- Double-contact output for time control
- External start, reset and gate input
- Selection between hour, minute and minute seconds displays
- Scale 0:01...99:59 minutes, 0:01...99:59 hours
- The time increase and reduction steps can be adjusted as required.
- Countdown
- Start and stop facility on front plate
- 8 different warning sound choices
- Lower and upper limits of the setpoint can be adjusted.
- CE-labeled according to EN standards
Technical specifications
- Power consumption: Max. 7VA.
- Display: 4 digits, 12.5mm, 7 segment red LED.
- Electrical safety EN 61010-1:2010 (pollution level 2, protection class II). Electromagnetic compatibility EN 61326-1:2013.
- Product type
TDR
- Type
ETM2432-230
- Type
Multifunction
- Connection
Screw terminal
- Functions
Selectable delay
- Operating voltage
230 V AC
- Min. operating voltage
184 V AC
- Max. operating voltage
253 V AC
- Operating voltage
184 - 253 V AC
- Contact type
2 change-overs
- Switching voltage (max.)
250 V AC
- Switching current (max.)
8 A
- Time range (min.)
0.01 min
- Time range (max.)
99.59 min
- Time range(s)
99 min 59 s (value.1402950)
- Min. temperature
0 °C
- Max. temperature
50 °C
IP65 (front)
IP20 (back panel)
- Electrical lifespan
300,000 switching cycles at 250V AC, 2A
- Durability
30 MIO. Switching cycles (without load)
- Width
35 mm
- Height
77 mm
- Depth
71 mm
- Dim
(W x H x D) 35 x 77 x 71 mm
- Industrial packaging
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3527754 Enda ETM2432-230 TDR Multifunction 230 V AC 1 pc(s) Time range: 0.01 - 99.59 min 2 change-overs
User & Safety Instructions
User & Safety Instructions 3527754 Enda ETM2432-230 TDR Multifunction 230 V AC 1 pc(s) Time range: 0.01 - 99.59 min 2 change-overs
Description
The Enda ETM2432 is a versatile, programmable digital timer relay for panel installation (DIN 43700, 77 × 35 mm). It possesses two relay outputs as changeover contacts (NO/NC), external control inputs (start, reset, gate) and a freely programmable time function (selectable from 0:01 to 99:59 min or h).
