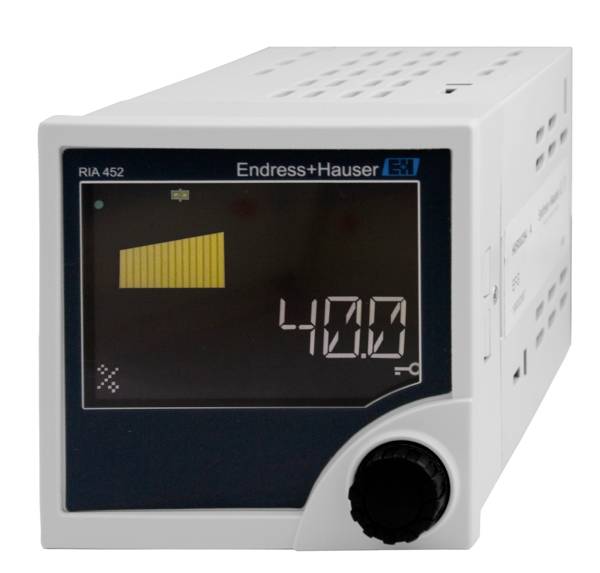

Endress+Hauser RIA452
EAN:
Part number:
Item no:
Total (€ 859.00 / piece)
€ 859.00
incl. VAT
14-day return policy included
Highlights & Details
Display unit with pump control display / indicator RIA452-A114A11A Ex-free range 8x relay SPDT limit value + 1x analogue + 1x pulse + integration +
- Approval: Ex-free range
- Auxiliary energy: 90-250Vac
- Measuring signal 0/4-20mA
- Output: 8x relays SPDT limit value + 1x analogue + 1x pulse + integration + linearization for open channels
- Communication: Standard
- 96X96 panel mount base, IP65 front
- Additional equipment: Basic version
- Design: Standard, de, en, fr
Technical specifications
- Reading type
Amperage
- Reading range (min.)
0 mA
- Type
RIA452
- Reading range (max.)
20 mA
- Display technology
LCD
IP65
- Display (counts)
7
- Dim
(W x H) 96 mm x 96 mm
- Max. operating voltage
250 V AC
- Min. operating voltage
90 V AC
- Width
96 mm
- Height
96 mm
- Interfaces
RS232
- Interfaces
Analogue
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2989193 Endress+Hauser RIA452
User & Safety Instructions 2989193 Endress+Hauser RIA452
Description
The RIA452 can supply directly connected two-wire transmitters, optionally also intrinsically safe. Up to eight freely programmable relays monitor the measured value for exceeding and falling below the threshold. Other modes of operation for the relays are sensor or device faults, batch and pump control functions (e.g. alternating pump control).
This text is machine translated.
This text is machine translated.
Features
- 7-digit 14-Segment-LC-Display, large bar display with measuring range over and under range.
