Name: Endress+Hauser Rotary fluid level gauge switch FTE20 FTE20-AA13AD11 1 pc(s)
Brand: Endress+Hauser
SKU: 2886125
Availability: BackOrder

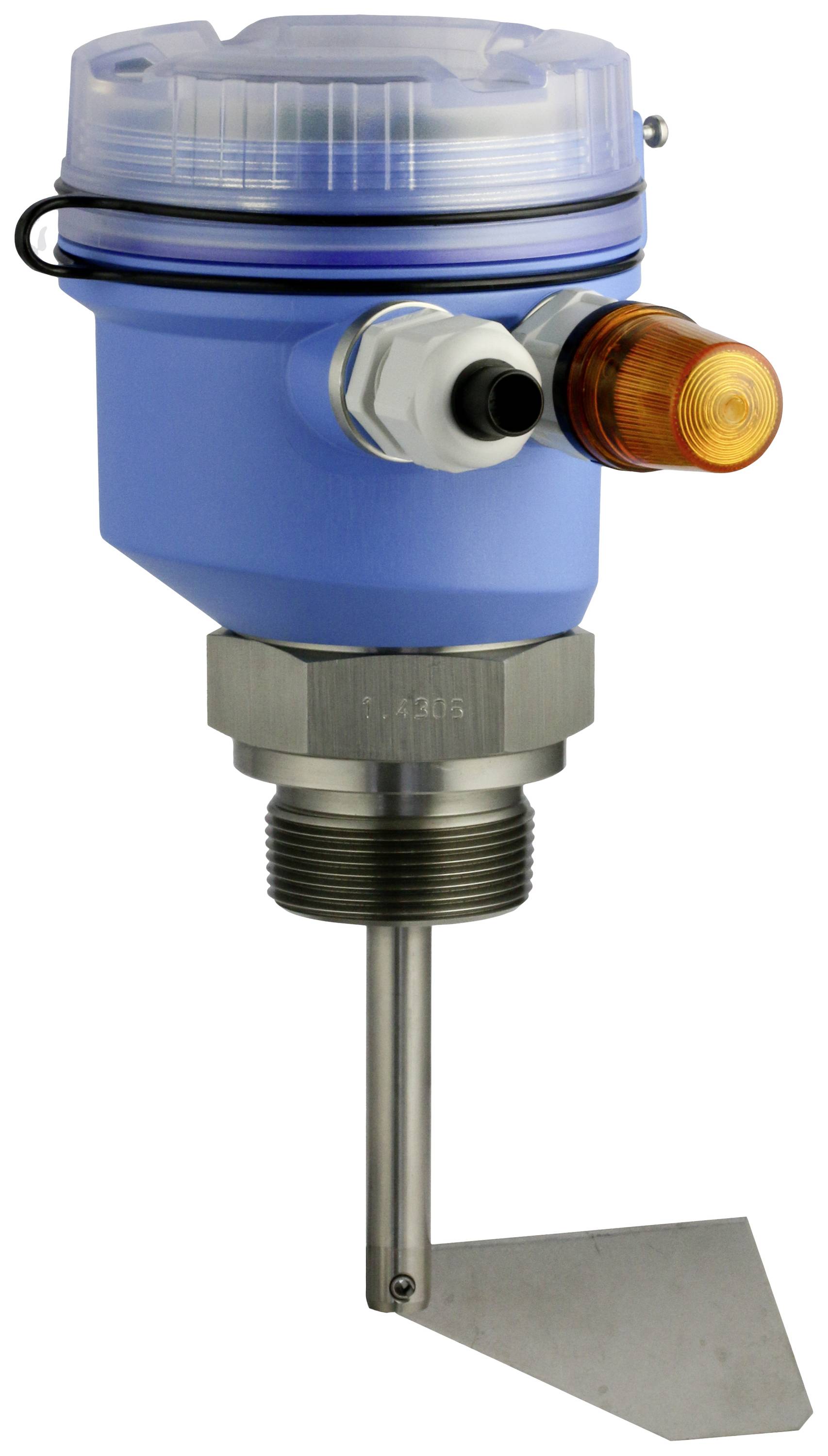

A blue sensor with metal threading and an orange warning light, used in industrial applications for level measurement.

Image similar

Product type

Rotary fluid level gauge switch

Type

FTE20

Material

Stainless steel

Enclosure material

Plastic

Max. operating pressure

1.5 bar

EAN:

Part number:

Item no:

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 365.00 / piece)

€ 365.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Rotating level switch solo switch/paddle switch FTE20-AA13AD11 20-28 V/DC standard; 304

Design: With shaft
Type of connection: Outer thread
Nominal width in accordance with ASME: G1-1/2
Power supply 20-28 V/DC
Bucket material: Standard 304
Design length: Shaft 200 mm
Approval: Non-explosive area

Technical specifications

Process pressure 0.5 - 1.5 bar
Medium density min.: >=80 g/l

Product type: Rotary fluid level gauge switch

Type: FTE20

Material: Stainless steel

Enclosure material: Plastic

Max. operating pressure: 1.5 bar

Content: 1 pc(s)

RoHS-compliant: Yes

Switching voltage: 28 V DC

Max. temperature: +80 °C

Min. temperature: -20 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2886125 Endress+Hauser Rotary fluid level gauge switch FTE20 FTE20-AA13AD11 1 pc(s)

Description

The Soliswitch FTE20 is a swing arm switch for position detection in bulk materials. With its robust polymer casing and the compact design it is an ideal sensor for full, empty and demand messages. The optimized polymers make the device extremely robust and therefore suitable for use in areas subject to dust explosion hazards according to the latest standards.

This text is machine translated.

Features

The guided cable channel helps with the initial start-up, because it guides you to the clamps without leaving you stuck. Circuit diagram is included in the device
User-friendly thanks to undetachable screw cap, rotating housing and tool-free lid opening
Easy testing during installation and - if necessary - quick fault search through function check very easily with a screwdriver. The paddle can be blocked without disassembling the device
The visual rotating monitoring through the transparent lid is especially helpful in environments endangered by dust explosion
