Name: ENTES EMM Digital rack-mount meter
Brand: ENTES
SKU: 2251910
Availability: InStock

Electronic measuring device with digital display showing three red numbers: 2.10; 3.50; 1.90. Buttons at the bottom for control.

Electric Measuring Instrument with Digital Display: Voltage 210V, 350V, 190V. Black casing with buttons and connection terminals.

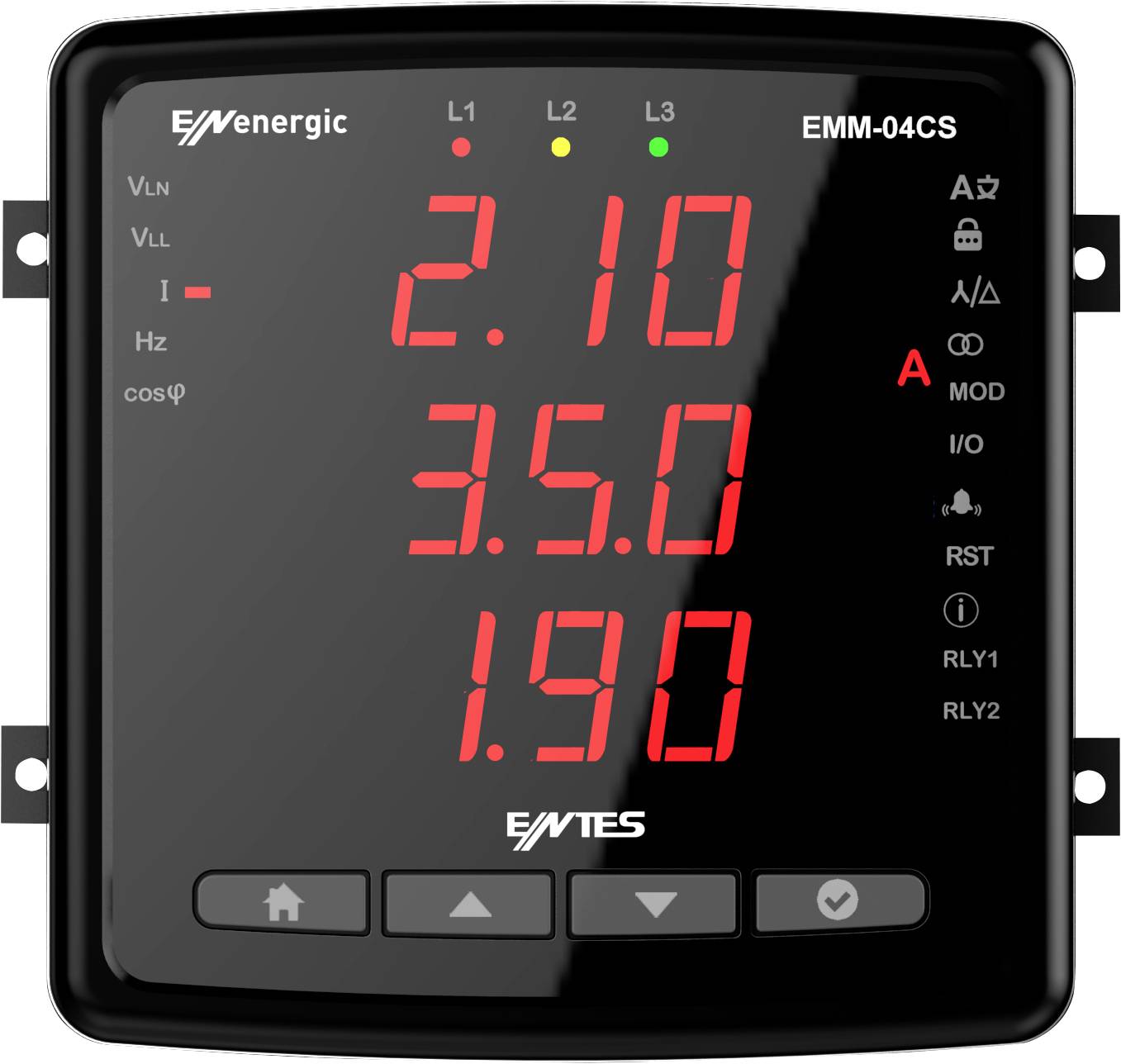

A digital measuring device shows three voltage readings: 2.10, 3.50, 1.90. Buttons below for settings.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 124.99 / piece)

€ 124.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Wide supply voltage range
Slim design for narrow control cabinets
3-phase voltage measurement
3-phase current measurement
Operating hours timer

Technical specifications

Product type: Digital rack-mount meter

Reading type: AC voltage
AC current
cos phi
Frequency

Type: EMM

Reading range (max.): 480 V
5 A

Display technology: LED

Recess width: 92 mm

Display (counts): 9999

Recess height: 92 mm

Dim: (L x W x H) 45 x 96 x 96 mm

Max. operating voltage: 270 V

Min. operating voltage: 100 V

Display lighting: red

Recess depth: 45 mm

Factory colour: Black

Width: 96 mm

Height: 96 mm

Length: 45 mm

Frame width: 9.60 cm

Frame height: 9.60 cm

Interfaces: RS485

Documents & Downloads

Datasheet

Datasheet 2251910 ENTES EMM Digital rack-mount meter

User & Safety Instructions

User & Safety Instructions 2251910 ENTES EMM Digital rack-mount meter

Description

With a depth of only 45 mm and a special connection structure, the EMM series enables easy installation, especially in narrow control cabinets. The specially developed "Ghost Display" technology offers a clear and easy-to-read display. The design concept of the new generation with 4 keys offers the user a simple operation. The EMM series guarantees high measurement accuracy for basic electrical parameters such as current, voltage and frequency.

This text is machine translated.
