ENTES EMR Digital rack-mount meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 214.29 / piece)
€ 214.29
plus VAT.
Technical specifications
- Operating temperature: +20 °C to + +70 °C.Measurement range 0.05 - 5.5 A.Measuring accuracy 1%
- Product type
Digital rack-mount meter
- Reading type
AC voltage
AC current
Frequency
cos phi
Power
Energy consumption
Active power
- Reading range (min.)
30 V
0.05 A
- Type
EMR
- Reading range (max.)
230 V
300 V
480 V
5 A
- Display technology
LED
IP20
IP51
- Recess width
92 mm
- Display (counts)
9999
- Recess height
92 mm
- Dim
(L x W x H) 96 x 96 x 44.5 mm
- Weight
450 g
- Max. operating voltage
270 V AC
- Min. operating voltage
110 V AC
- Display lighting
red
- Recess depth
50 mm
- Factory colour
Black
- Width
96 mm
- Height
44.5 mm
- Length
96 mm
- Interfaces
RS485
Documents & Downloads
Datasheet
Datasheet 2589084 ENTES EMR Digital rack-mount meter
User & Safety Instructions
User & Safety Instructions 2589084 ENTES EMR Digital rack-mount meter
Description

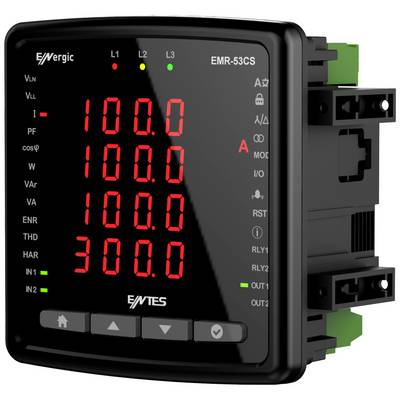

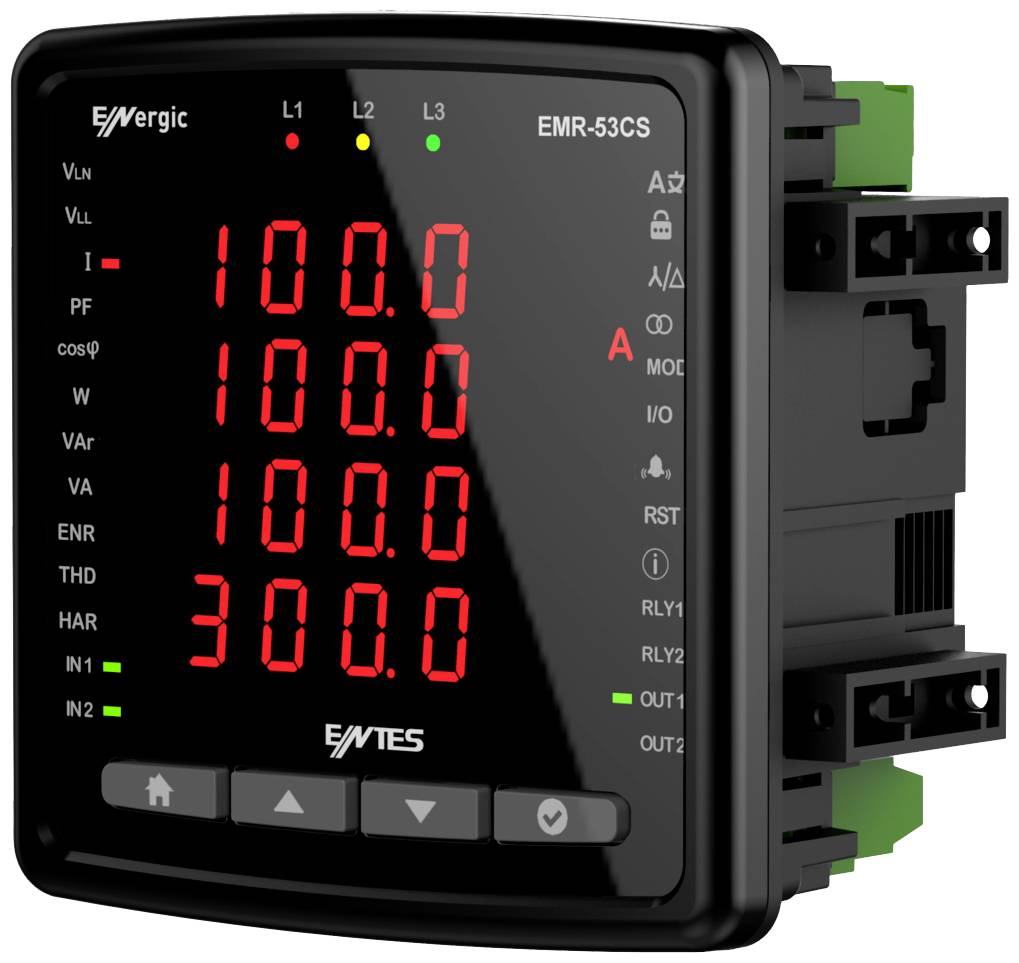

The digital panel-mounted measuring device has a slim and compact design. New simple menu design with 4 buttons.
This text is machine translated.
This text is machine translated.
Features
- Slim and compact designSimple menu design with 4 buttonsModern, stylish, reliableRS485 Modbus interfaceDigital outputDigital input2 MB internal Memory
