ENTES EPM-4C-96 Meter

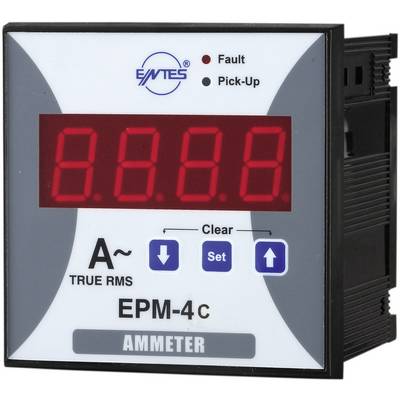

A digital ammeter with a red LED display shows '8.8.8.'. It has buttons for 'Clear' and 'Set', along with indicators for 'Fault' and 'Pick-Up'.
EAN:
Part number:
Item no:
Dispatches on Mon 16 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 79.99 / piece)
€ 79.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Programmable 1-phase AC current measuring device EPM-4C-96

  • Operating voltage 230 V/AC
  • Measurement range 50 mA - 10 kA
  • Demand values
  • Output relay
  • Hysteresis function
  • Adjustable limits

Technical specifications

Product type

Meter

Reading type

AC current

Amperage

Reading range (min.)

50 mA

Type

EPM-4C-96

Display technology

LCD

Recess width

90 mm

Display (counts)

9999

Operating voltage

230 V AC

Dim

(W x H x D) 96 x 96 x 46 mm

Display lighting

red

Width

96 mm

Height

96 mm

Frame width

96 mm

Frame height

96 cm

Depth

46 mm

Reading range (min.)

0 A/AC

Power supply (details)

230 V/AC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 103286 ENTES EPM-4C-96 Meter

Description

EPM-4C-96 measures the rms currents and stores the maximum, average and currently required value. If the measured current exceeds the adjustable limit values, the output relay switches after the set delay time. The current transformer ratio of 5/5 A to 10000/5 A and the demand time can be programd.
