Name: Eurolite MD-3050 Mirror ball motor
Brand: Eurolite
SKU: 592109
Availability: BackOrder

A black metal box with a hook and a loop, suitable for hanging. A cable is connected to the side.

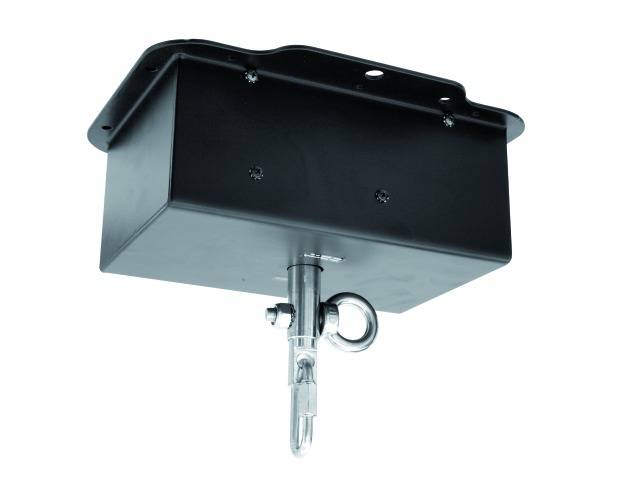

Black hook bracket with mounting mechanism, mounted on a ceiling plate.

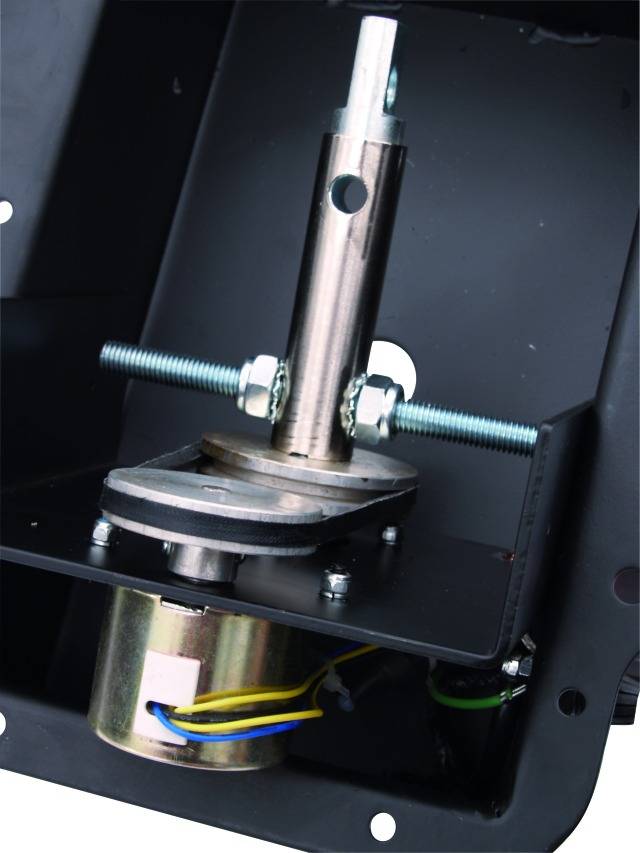

Metal gears in a housing with wires, screws and nuts.

1/3

EAN:

Part number:

Item no:

Dispatches on Wed, 3 Mar 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 199.99 / piece)

€ 210.00

-5 %

€ 199.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Eurolite MD-3050 safety rotary motor

Mirror ball motor for balls up to 150 cm

Technical specifications

Power supply: 230 V AC, 50 Hz
Total connected wattage 7 W
Max. Load WLL (4-fold): 450 kg
Max. Load BGV C1 (8-fold) 225 kg
Max. Load BGV C1 (10x): 180 kg
Max. Load BGV C1 (12-fold): 150 kg
Max. Mirror ball diameter 150 cm (EUROLITE)
Rotation speed: Approx. 1 rpm
Dimensions (LxWxH) 280 x 240 x 110 mm
Weight: 5 kg.

Product type: Mirror ball motor

: n.rel.

Rotational speed: 1 U/min

Weight: 6.0 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 592109 Eurolite MD-3050 Mirror ball motor

Description

Mirror ball motor for balls up to 150 cm · For driving mirror balls up to a max. total weight of 150 kg · This corresponds to a diameter of 150 cm for EUROLITE mirror balls · The maximum load capacity always refers to the actual weight of the mirror ball including mirror ball chain, safety chain and fixing material · 2 chains and 4 quick connectors must be ordered separately · 1 revolution per minute · For professional use, e.g. in discotheques and meeting places, the regulations of the BGV C1 (formerly VBG 70) must be observed · The engine must always be installed with a second independant suspension · The device must be checked by an expert before it is put into operation for the first time

This text is machine translated.
