EWON FLEXY20500_00MA FLEXY20500_00MA Remote maintenance router RJ-45, Ethernet, LAN, DI/O 24 V DC 1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 905.00 / piece)
€ 905.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

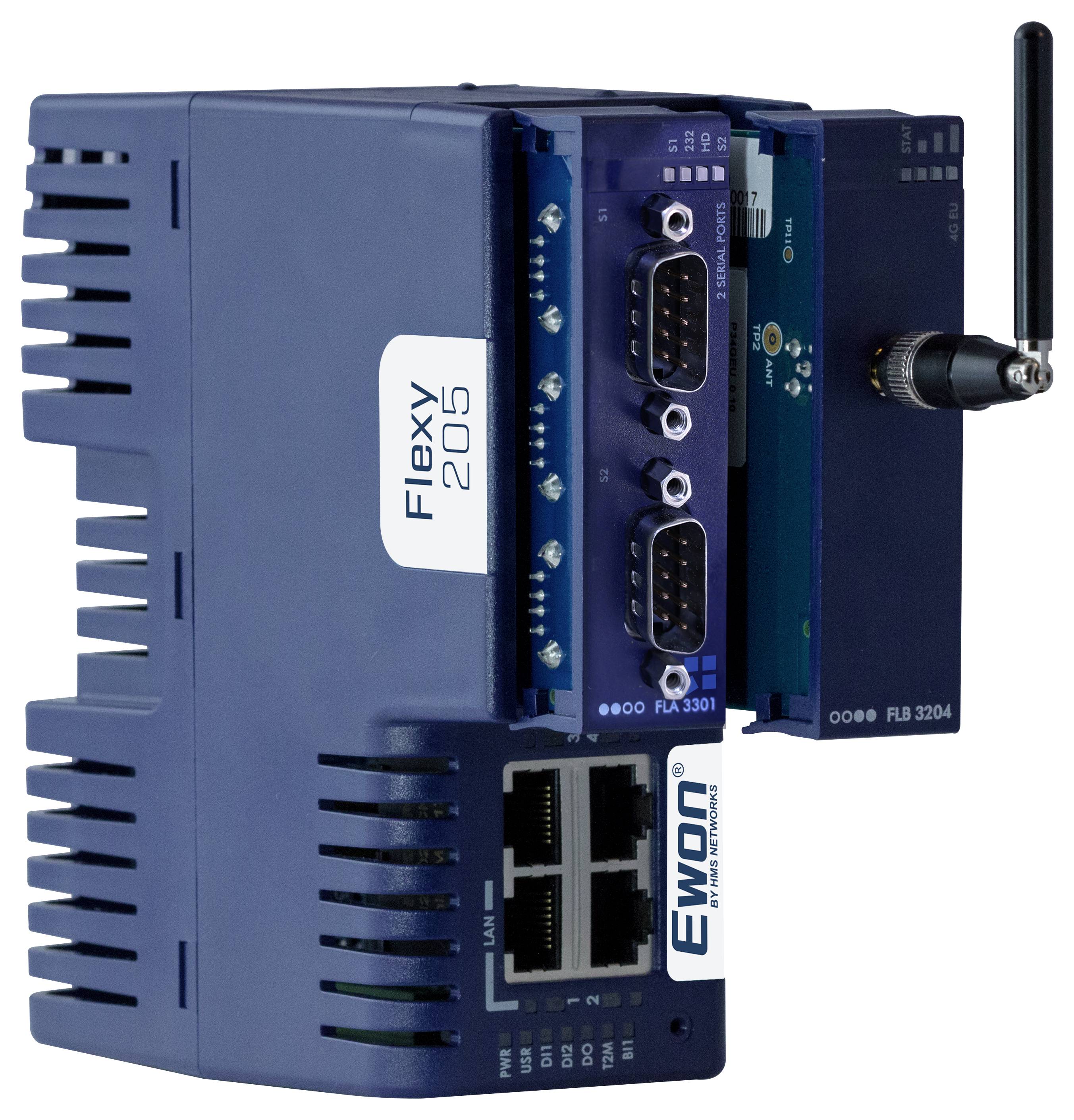

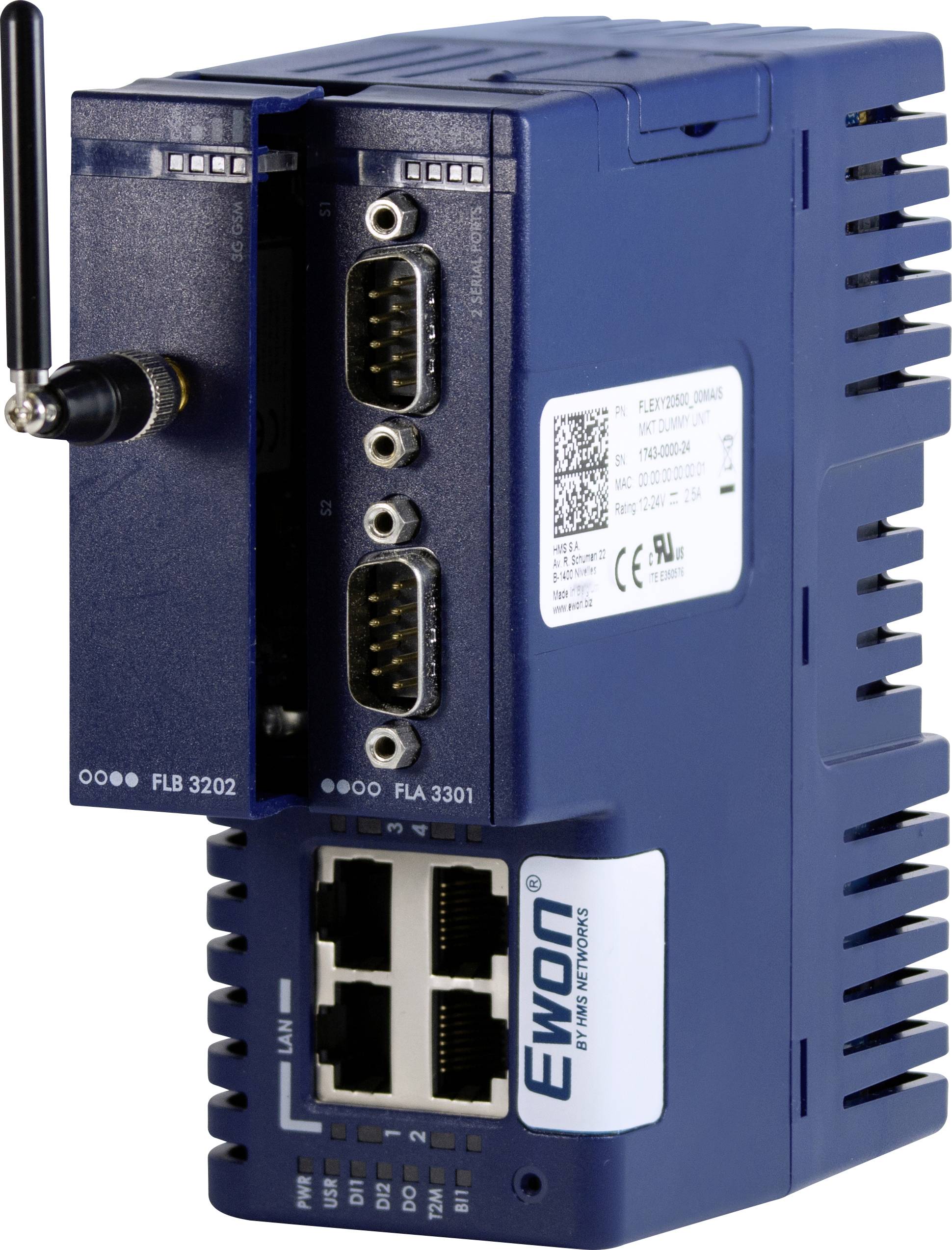

EWON Flexy 205
- Data is easy to record and record
- Enable remote machine connectivity
- Implement efficient data monitoring
- Leverage flexible data integration
- Do even more with integrated connectors and APIs
- Future-proof thanks to expansion cards
- Ready for OPC UA
Technical specifications
- Product type
Remote maintenance router
- Interfaces
RJ-45
Ethernet
LAN
DI/O
- Type
FLEXY20500_00MA
- Operating voltage
24 V DC
- Max. operating temperature
+60 °C
- Min. operating temperature
-25 °C
- Operating voltage
12-24 V DC
- Operating temperature
-25 up to +60 °C
- Dim
(W x H) 55 mm x 133 mm
- Height
133 mm
- Width
55 mm
- Manufacturer part #
FLEXY20500_00MA
- Interfaces
WAN
Local web page, USB and SD for configuration
- Current consumption
30 W
- UKCA
yes
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3763276 EWON FLEXY20500_00MA FLEXY20500_00MA Remote maintenance router RJ-45, Ethernet, LAN, DI/O 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3763276 EWON FLEXY20500_00MA FLEXY20500_00MA Remote maintenance router RJ-45, Ethernet, LAN, DI/O 24 V DC 1 pc(s)
Conformity certificate
Conformity certificate 3763276 EWON FLEXY20500_00MA FLEXY20500_00MA Remote maintenance router RJ-45, Ethernet, LAN, DI/O 24 V DC 1 pc(s)
Description
The EWON Flexy is a versatile IIoT data gateway that allows machine builders and users to monitor and record critical KPIs for analysis and predictive maintenance. Capture data from SPSs, sensors and other devices with support for a wide range of industry protocols, including OPC UA.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Power plug (MINICONNEC MC model) type MC 1.5 / 9–St-3.5
