Name: Extech SDL300 Anemometer 0.4 up to 35 m/s
Brand: Extech
SKU: 103833
Availability: BackOrder

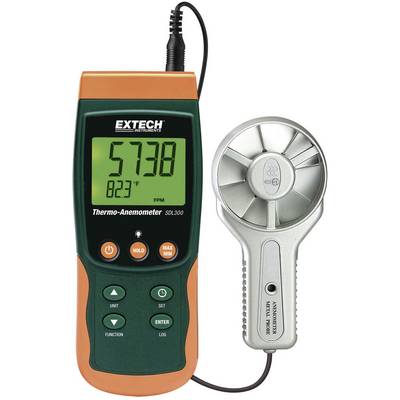

A digital thermo-anemometer is displaying 5,738 feet per minute and 82.3°F. The device measures air flow and temperature, suitable for climate monitoring.

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 675.00 / piece)

€ 675.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Vane anemometer SDL 300

Measurement of temperature and air speed up to 35 m/s
Integrated Data logger for 20000 measurement data on 2 GB SD-card
Robust metal impeller for temperatures up to 70°C

Technical specifications

Measurement range of air temperature: 0.0 to 70.0°C
Accuracy of air temperature: ±0.8 °C
Measuring range -100 to +1300 °C thermo-elements:
Possible SD memory card size: 1 GB - 16 GB
Display interval 1 s
Adjustable logger interval: 0/1/2/5/10/30/60/120/300/600/1800/3600 s
Impeller diameter: 72 mm

Product type: Anemometer

Temperature reading range: -100 up to 1300 °C

Wind speed: 0.4 - 35.0 m/s

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 182 x 73 x 48 mm

Accuracy: 2 %

Weight: 347 g

Temperature reading range (max.): 1300 °C

Temperature reading range (min.): -100 °C

Air speed reading range (max.): 35 m/s

Air speed reading range (min.): 0.4 m/s

Width: 73 mm

Height: 48 mm

Length: 182 mm

Power supply (details): 6 Mignon batteries (AA)

Documents & Downloads

Datasheet

Datasheet 103833 Extech SDL300 Anemometer 0.4 up to 35 m/s

User & Safety Instructions

User & Safety Instructions 103833 Extech SDL300 Anemometer 0.4 up to 35 m/s

Description

The thermo-anemometer enables the measurement of air speed and air temperature via a vane probe. In addition, with an optional thermocouple probes high-temperature measurements can be carried out. The integrated data logger with storage on SD-card enables the documentation and later evaluation of measured data on a computer. Ideal for all measurement tasks in heating, ventilation and air-conditioning range or for environmental measurement when building plans, etc.

This text is machine translated.

Features

Selectable measurement units (m/s, ft/min, km/h, knots, mph)
Ball-bearing fan wheel with 1 m connection cable
Data logger with date and time stamp stores the measured values on an SD card in Excel ® format for easy transfer to a computer
Adjustable logger interval: 1 - 3600 seconds
Manual storage/retrieval of up to 99 measured values in the internal memory
Type K/J thermocouple input for high-temperature measurements
Large backlit LC display shows air speed and temperature at the same time
MIN/MAX memory
Integrated measured value memory and SD-card slot
Auto switch-off
Integrated RS232 interface
Optional power supply operation
The rear stand thread.

Scope of delivery

Batteries
SD card 2 GB
Metal Vane probe
Hard case
User manual.
