Name: Fan timer relay 24, 24 V AC, V DC (max) Metz Connect 11028313 1 pc(s)
Brand: Metz Connect
SKU: 2860471
Availability: BackOrder

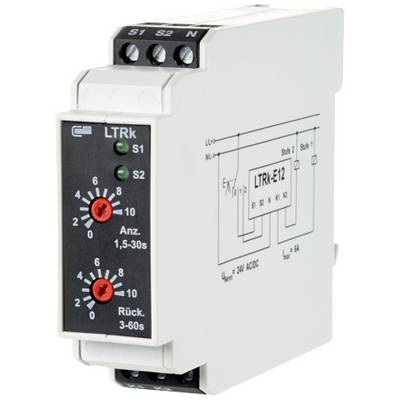

A white relay housing with two rotary controls and circuit diagram is shown. On the front side are the labels 'S1', 'S2', 'N'.

Product type

Fan timer relay

Functions

On-/Off-delay

Max. operating voltage

24 V AC

24 V DC

Switching voltage (max.)

24 V DC/AC

Type

11028313

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 2

Multiple: 2

Total (€ 81.99 / piece)

€ 163.98

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Fan timer relay LTRk-E12, 24 V AC/DC

Measurement relaysMonitoring RelaysFan timer relayDelayed shut-off relayBTR Netcom

Technical specifications

Product type: Fan timer relay

Type: 11028313

Functions: On-/Off-delay

Operating voltage: 24 V AC
24 V DC

Max. operating voltage: 24 V AC
24 V DC

Operating voltage: 24, 24 V AC, V DC (max)

Switching voltage (max.): 24 V DC/AC

Connection: Screw terminal

: IP40

Min. temperature: -5 °C

Max. temperature: +55 °C

Width: 22.50 mm

Height: 75 mm

Depth: 95 mm

Dim: (W x H x D) 22.50 x 75 x 95 mm

Content: 1 pc(s)

Weight: 150 g

Factory colour: Grey

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2860471 Fan timer relay 24, 24 V AC, V DC (max) Metz Connect 11028313 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2860471 Fan timer relay 24, 24 V AC, V DC (max) Metz Connect 11028313 1 pc(s)

Description

The fan timer relay was designed specifically for controlling two-stage motors. On and off delay are separated and continuously adjustable. It is controlled via a two-stage switch. The motor contactors are controlled with both mutually locked outputs. How it works:, 1. When selecting level 2 directly, level 1 is first switched on for the set start-up time so that the fan can run up to the rated speed. Then it is activated in level 2.2. When switching from level 2 back to level 1 or FROM position OFF, a power-off delay is triggered so that the fan can only spin out before level 1 is activated.3. If stage 1 is already switched on for at least the set start-up time, the switch-over in stage 2 is immediate. When switching from level 1 to 2, the interruption may not exceed 250 ms. If this time is exceeded, the procedure is as described in point 1.
