Name: Feed-through terminal block PTS 2,5-QUATTRO BU 3212002 Phoenix Contact
Brand: Phoenix Contact
SKU: 715369
Availability: InStock

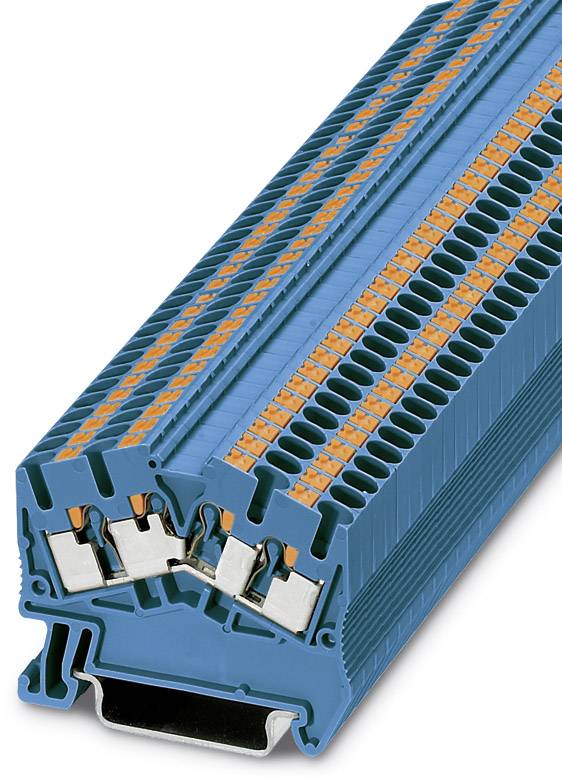

A blue terminal block system with orange conductors used for electrical connections in control cabinets.

Image similar

Packaging type

Piece

Product type

Serial continuity

Connection

Quick-connect

Cross section (flexible) (max.)

2.5 mm²

Cross section (inflexible) (max.)

4 mm²

Datasheet (PDF)

Dispatches on Thu 15 Oct

80 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 1.56 / piece)

€ 77.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Serial continuity

Features: + push-in spring bracket

Connection: Quick-connect

Cross section (flexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 4 mm²

AWG (min.): 26

AWG max.: 14

Clamp width: 5.2 mm

No. of rows: 1

Number of pins: 4

Factory colour: Blue

Nominal current: 24 A

Nominal current - rounded value: 24 A

Nominal voltage: 800 V

Min. stripping length: 8 mm

Stripping length (max.): 10 mm

Manufacturer part #: 3212002

Content: 50 pc(s)

Industrial packaging: Yes

Type: PTS 2,5-QUATTRO BU

Dim: (L x W x H) 49 x 5.2 x 43 mm

Width: 5.2 mm

Height: 43 mm

Length: 49 mm

Flammability rating: V0

Connector colour: Blue

UKCA: yes
