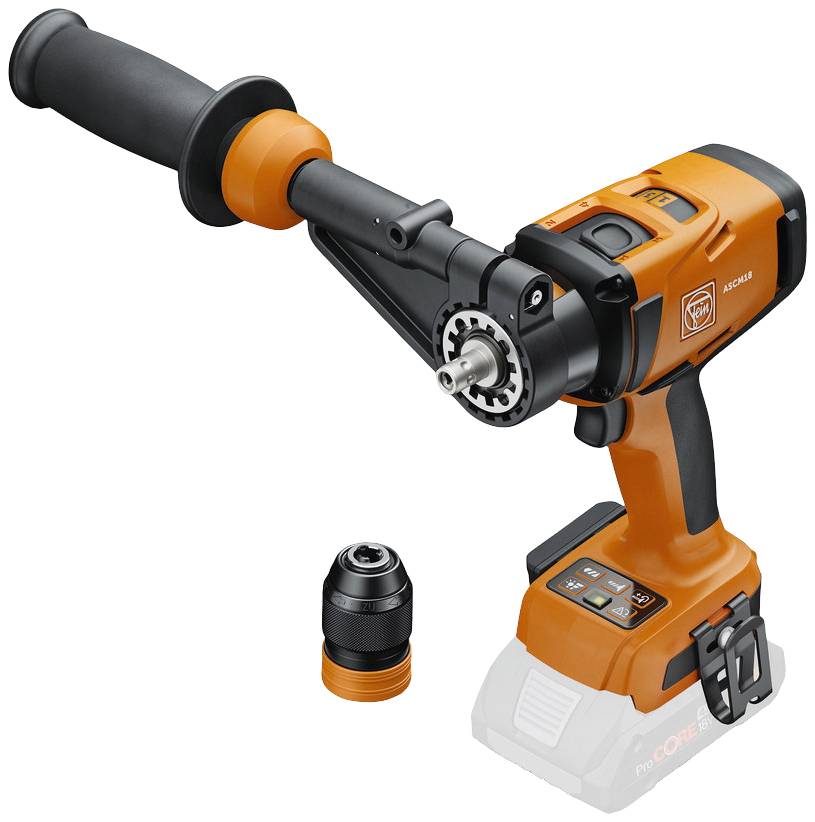

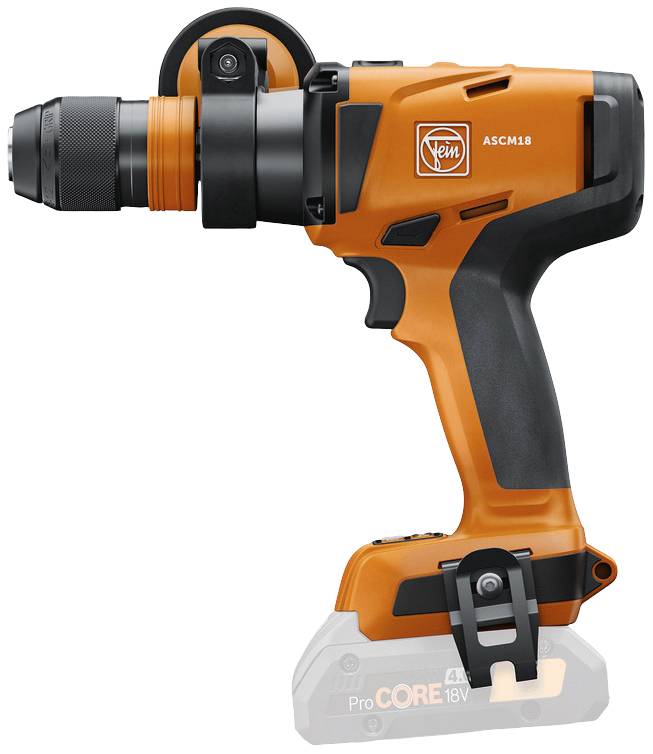

Cordless hammer drill/driver ASCM18-4QMP
- Blow count (max.) 60000 /min
- Max. drill bit Ø (Wood/Stone) 60/13 mm
Technical specifications
- Blow count: (1./2.3./4. Gear) 6450/12750/30000/60000/min.
- 15+1 torque control
- Product type
Cordless impact driver
- Operating voltage
18 V
- Blow count (max.)
60000 /min
- Max. drill diameter
(Wood/Stone) 60/13 mm
- Transmission type
4-speed
- Weight
1.4 kg
- Weight, information
without rechargeable battery
- Tool holder
QuickIN
- Drill chuck clamping range
1,5 - 13 mm
- Features
brushless
incl. case
w/o battery
w/o charger
- Functions
Speed preselection
- Torque (max.)
130 Nm
- No. of power packs included
0
- Technology
Li-ion
- Max. torque
(soft/hard/max.) 50/70/130 Nm
- Capacity (mAh, Ah)
4 Ah
- Idle speed
1. Gang 430 U/min
2. Gang 850 U/min
3. Gang 2000 U/min
4. Gang 4000 U/min
- Quick tool exchange
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3171016 Fein ASCM18-4QMP 4-speed-Cordless impact driver brushless, incl. case, w/o battery, w/o charger
User & Safety Instructions
User & Safety Instructions 3171016 Fein ASCM18-4QMP 4-speed-Cordless impact driver brushless, incl. case, w/o battery, w/o charger
Warranty Terms
Warranty Terms 3171016 Fein ASCM18-4QMP 4-speed-Cordless impact driver brushless, incl. case, w/o battery, w/o charger
Description
This text is machine translated.
Features
- 4-speed battery-operated impact drill screwdriver
- ASCM 18-4 QMP AS
- With brushless motor and QuickIN interface
- Uncompromising performance for taps up to M14 and drilling with HM hole saws up to 80 mm
Scope of delivery

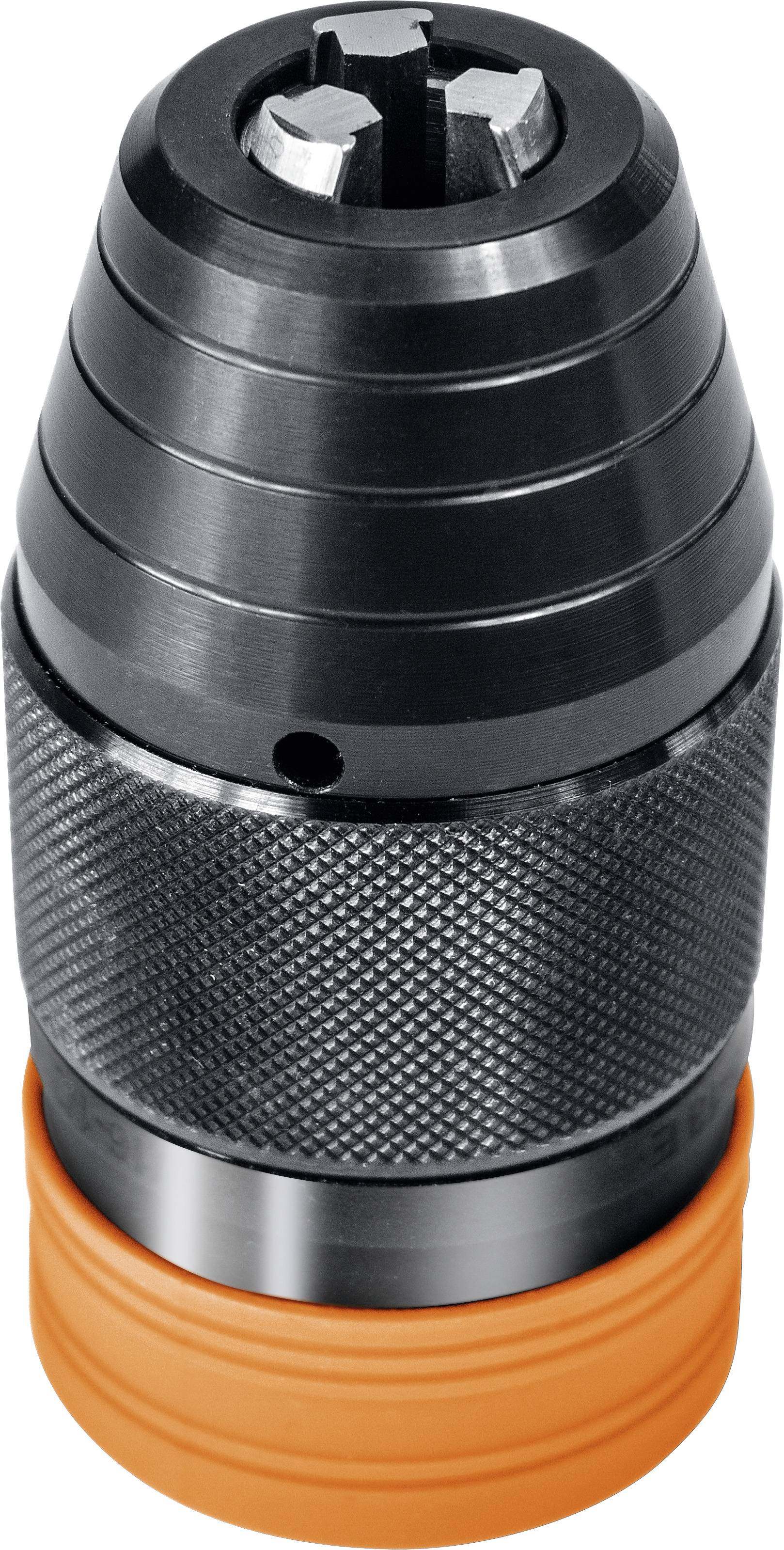

- 1x QuickIN drill chuck (120 Nm)
- 1x belt clip
- 1x bit garage
- 1x telescopic handle
- 1x plastic tool case (L-BOXX 136)
- With no rechargeable battery
- Without charger
