Name: Fein KBU 35 QW 1-speed-Core drill 1100 W incl. case
Brand: Fein
SKU: 2387012
Availability: InStock

Highlights & Details

Magnetic core drill machine KBU 35 QW

1100 W
Max. drill bit Ø 35 mm

Technical specifications

Core drill chuck: 3/4 in Weldon
Core drill change: Tool-free
Stroke: 135 mm
Total stroke range 260 mm
Magnet holding force 10 000 N.
Magnetic base dimensions 175 x 80 mm

Product type: Core drill

Features: incl. case

: 1100 W

Output rating: 550 W

Load speed: 520 U/min

Transmission type: 1-speed

Max. drill diameter: 35 mm

Functions: Speed preselection

Cable length: 4 m

Operating voltage: 230 V

Weight: 10.7 kg

Idle speed: 130 - 520 U/min

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2387012 Fein KBU 35 QW 1-speed-Core drill 1100 W incl. case

User & Safety Instructions

User & Safety Instructions 2387012 Fein KBU 35 QW 1-speed-Core drill 1100 W incl. case

Description

Small and powerful 1-speed universal magnetic core drill with right/left rotation and highest functionality for flexible working on the construction site.

This text is machine translated.

Features

Extremely wear-resistant machine concept with swivel-mounted motor cable protection hose for tough use in industry and trade
perfect power weight through compact, weight-optimized design and FINE 1 100 W high-performance motor with tacho-electronics for high speed stability for reliable and economical work
Right/left rotation, electronic speed adjustment and 260 mm lifting range make it possible to use the machine universally, such as Kern, Spiral, Tapping, Lowering and Reaming
Small and light
Simple and error-free operating concept in the field of view of the user
Comfort magnetic strength indicator
high magnetic holding force
Tilt sensor
Additional magnetic switch in the drill stand
Integrated coolant tank
Side-changing feed hand wheel
Speed memory "Memory Function"
Person-safety switch.

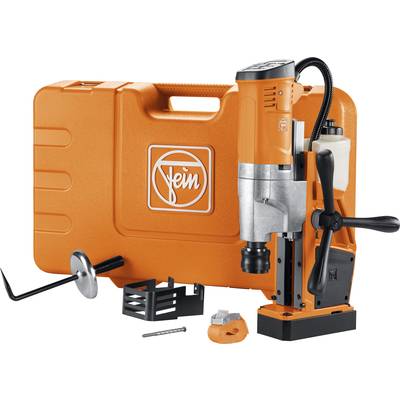

Scope of delivery

Magnetic core drill machine KBU 35 QW
Coolant tank
Lashing
Chip Hook
Centering pin
Touch protection
Case.
