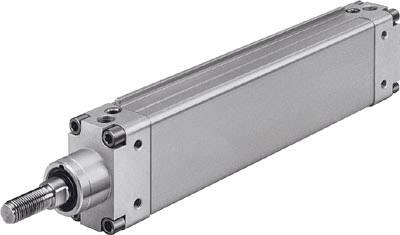

FESTO 14063 DZH-50-25-PPV-A Slimline cylinder Stroke length: 25 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 415.00 / piece)
€ 415.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Slimline cylinder DZH-50-25-PPV-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Slimline cylinder
- Stroke length
25 mm
- Max. operating pressure
10 bar
- Material (details)
Aluminium casing
- Manufacturer part #
14063
- Weight
1200 g
- Size
50
- Sealant
Polyurethane
- Pneumatics connector
G1/4"
- Piston rod material
Steel
- Force (max.)
1178 N
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1895695 FESTO 14063 DZH-50-25-PPV-A Slimline cylinder Stroke length: 25 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1895695 FESTO 14063 DZH-50-25-PPV-A Slimline cylinder Stroke length: 25 mm 1 pc(s)
Information
Information 1895695 FESTO 14063 DZH-50-25-PPV-A Slimline cylinder Stroke length: 25 mm 1 pc(s)
