FESTO 151124 DZH-25-80-PPV-A Slimline cylinder Stroke length: 80 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 295.00 / piece)
€ 295.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

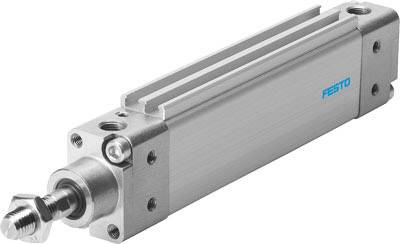

Slimline cylinder DZH-25-80-PPV-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Slimline cylinder
- Stroke length
80 mm
- Max. operating pressure
10 bar
- Material (details)
Aluminium casing
- Manufacturer part #
151124
- Weight
330 g
- Size
25
- Sealant
Polyurethane
- Pneumatics connector
G1/8"
- Piston rod material
Steel
- Force (max.)
295 N
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1896762 FESTO 151124 DZH-25-80-PPV-A Slimline cylinder Stroke length: 80 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1896762 FESTO 151124 DZH-25-80-PPV-A Slimline cylinder Stroke length: 80 mm 1 pc(s)
Information
Information 1896762 FESTO 151124 DZH-25-80-PPV-A Slimline cylinder Stroke length: 80 mm 1 pc(s)
