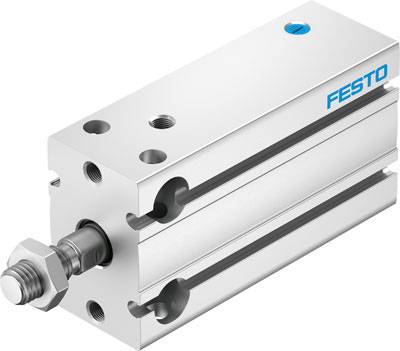

FESTO 4829867 DPDM-25-10-P-PA Compact cylinder Stroke length: 10 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 93.99 / piece)
€ 93.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Compact cylinder DPDM-25-10-P-PA
Technical specifications
- Operating medium
Compressed air according to ISO 8573-1:2010 [7:4:4]
- Product type
Compact cylinder
- Stroke length
10 mm
- Max. operating pressure
8 bar
- Material (details)
Aluminum wrought alloy
- Manufacturer part #
4829867
- Type
Compact cylinder DPDM-25-10-P-PA stroke=10 mm, piston diameter=25 mm, damping=P: Elastic damping rings/plates on both sides, mounting position=any, function=(* single-acting, * pulling)
- Size
25
- Sealant
TPE-U
- Pneumatics connector
M5
- Piston rod material
Steel (stainless)
- Piston rod diameter
25 mm
- Force (max.)
221 N
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 1940003 FESTO 4829867 DPDM-25-10-P-PA Compact cylinder Stroke length: 10 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1940003 FESTO 4829867 DPDM-25-10-P-PA Compact cylinder Stroke length: 10 mm 1 pc(s)
