FESTO 19199 DSNU-16-25-P-A Round cylinder Enclosure material: Aluminium wrought alloy Stroke length: 25 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
5 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 63.99 / piece)
€ 63.99
incl. VAT
Only 5 Piece(s) available
Only available for business customers
14-day return policy includedHighlights & Details

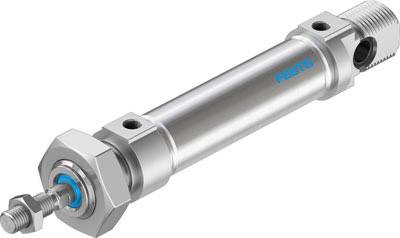

Round cylinder DSNU-16-25-P-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Round cylinder
- Stroke length
25 mm
- Min. operating pressure
1 bar
- Max. operating pressure
10 bar
- (Ø)
16 mm
- Manufacturer part #
19199
- Weight
89.9 g
- Size
16
- Thread mount
M6
- Sealant
NBR
TPU
- Pneumatics connector
M5
- Enclosure material
Aluminium wrought alloy
- Piston diameter
16 mm
- Piston rod material
Steel
- Piston rod thread
M6
- Force (max.)
120.6 N
- Material
Aluminium wrought alloy
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting ISO cylinder
- UKCA
yes
