FESTO 558106 DWC-63-150-Y Joint cylinder Stroke length: 150 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 194.99 / piece)
€ 194.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

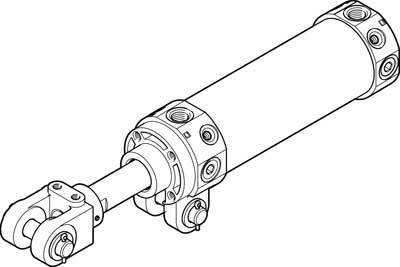

Joint cylinder DWC-63-150-Y
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Joint cylinder
- Stroke length
150 mm
- Min. operating pressure
1 bar
- Max. operating pressure
10 bar
- Material (details)
Cover: die-cast aluminum
- Manufacturer part #
558106
- Type
Mounting type: with swivel mounting on the bearing cover, with accessories
- Weight
1600 g
- Size
63
- Sealant
NBR
- Pneumatics connector
R1/4
- Piston diameter
63 mm
- Piston rod material
Quenched steel
- Piston rod thread
M16 x 1.5
- Force (max.)
1870 N
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
- Operating principle
Double-acting
- UKCA
yes
