FESTO 558115 DWC-63-125-Y-AB Joint cylinder Stroke length: 125 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 204.99 / piece)
€ 204.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

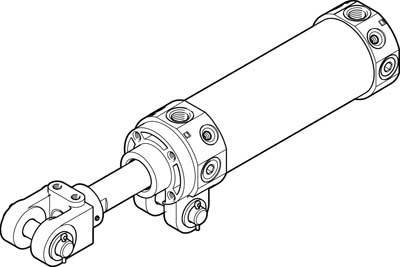

Joint cylinder DWC-63-125-Y-AB
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Joint cylinder
- Stroke length
125 mm
- Min. operating pressure
1 bar
- Max. operating pressure
10 bar
- Material (details)
Cover: die-cast aluminum
- Manufacturer part #
558115
- Type
Mounting type: with swivel mounting on the bearing cover, with accessories
- Weight
1600 g
- Size
63
- Sealant
NBR
- Pneumatics connector
R1/4
- Piston diameter
63 mm
- Piston rod material
Quenched steel
- Piston rod thread
M16 x 1.5
- Force (max.)
1870 N
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
- Operating principle
Double-acting
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1938448 FESTO 558115 DWC-63-125-Y-AB Joint cylinder Stroke length: 125 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1938448 FESTO 558115 DWC-63-125-Y-AB Joint cylinder Stroke length: 125 mm 1 pc(s)
