Name: FESTO Filter regulator 529156 MS4-LFR-1/4-D7-ERM-AS Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)
Brand: FESTO
SKU: 1938153
Availability: InStock

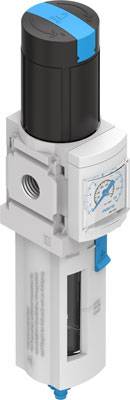

Pressure regulator with pressure gauge and drain valve, predominantly in white and black with blue accents.

Datasheet (PDF)

15 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 89.99 / piece)

€ 89.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Filter regulator MS4-LFR-1/4-D7-ERM-AS

Technical specifications

Filter regulator with manometer

Operating medium: Inert Gases;; Compressed air according to ISO 8573-1:2010 [--]: 4:

Product type: Filter regulator

Enclosure material: Aluminium (die-cast)

Connection: G 1/4

Max. flow: 1500 l/min

Max. operating pressure: 14 bar

Type: Filter control valve MS4 LFR-1/4-D7-ERM AS maximum output pressure 12 bar, 40 µm filter, with pressure gauge, lockable control head, plastic shell with plastic protective-basket, manual condensate drain, flow direction from left to right. Size=4, series = MS, actuating protection = (* rotary knob with locking, * with accessories closable), mounting position = vertically +/-5°, filter mesh = 40 µm

Manufacturer part #: 529156

Size: 4

Operating pressure (min.): 0.8 bar

Sealant: NBR

Weight: 275 g

Media temperature (range): -10 up to +60 °C

Max. media temperature: +60 °C

Media temperature (min.): -10 °C

Control pressure (max.): 12 bar

Control pressure (min.): 0.5 bar

Max. ambient temperature: +60 °C

Min. ambient temperature: -10 °C

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Connection

Max. operating pressure

Enclosure material

Operating medium

FESTO Filter regulator 529156 MS4-LFR-1/4-D7-ERM-AS Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)

Item no:1938153

Fast track dispatch on Thu 15 Oct

15 Piece(s)Conrad Electronic

This article

G 1/4

14 bar

Aluminium (die-cast)

Inert Gases;; Compressed air according to ISO 8573-1:2010 [--]: 4:

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 89.99^*

FESTO Filter regulator 529145 MS4-LFR-1/4-D6-CRM-AS-Z Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)

Item no:2117916

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/4

14 bar

Aluminium (die-cast)

Inert Gases;; Compressed air according to ISO 8573-1:2010 [--]: 4:

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 89.99^*

FESTO Filter regulator 529146 MS4-LFR-1/4-D6-CRV-AS Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)

Item no:1938149

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/4

12 bar

Aluminium (die-cast)

According to ISO 8573-1:2010 compressed air [7:4:-],, inert gases

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

FESTO Filter regulator 529148 MS4-LFR-1/4-D6-ERM-AS Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)

Item no:1893580

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/4

14 bar

Aluminium (die-cast)

Inert Gases;; Compressed air according to ISO 8573-1:2010 [--]: 4:

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 89.99^*

FESTO Filter regulator 529149 MS4-LFR-1/4-D6-ERM-AS-Z Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)

Item no:2117917

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/4

14 bar

Aluminium (die-cast)

Inert Gases;; Compressed air according to ISO 8573-1:2010 [--]: 4:

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 89.99^*

FESTO Filter regulator 529150 MS4-LFR-1/4-D6-ERV-AS Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)

Item no:1938150

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/4

12 bar

Aluminium (die-cast)

According to ISO 8573-1:2010 compressed air [7:4:-],, inert gases

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

FESTO Filter regulator 529151 MS4-LFR-1/4-D6-ERV-AS-Z Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)

Item no:2117918

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/4

12 bar

Aluminium (die-cast)

According to ISO 8573-1:2010 compressed air [7:4:-],, inert gases

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

FESTO Filter regulator 529152 MS4-LFR-1/4-D7-CRM-AS Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)

Item no:1938151

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/4

14 bar

Aluminium (die-cast)

Inert Gases;; Compressed air according to ISO 8573-1:2010 [--]: 4:

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 89.99^*

FESTO Filter regulator 529153 MS4-LFR-1/4-D7-CRM-AS-Z Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)

Item no:2117919

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/4

14 bar

Aluminium (die-cast)

Inert Gases;; Compressed air according to ISO 8573-1:2010 [--]: 4:

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 89.99^*

FESTO Filter regulator 529154 MS4-LFR-1/4-D7-CRV-AS Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)

Item no:1938152

Fast track dispatch on Thu 15 Oct

1 Piece(s)Conrad Electronic

G 1/4

12 bar

Aluminium (die-cast)

According to ISO 8573-1:2010 compressed air [7:4:-],, inert gases

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

Documents & Downloads

Datasheet

Datasheet 1938153 FESTO Filter regulator 529156 MS4-LFR-1/4-D7-ERM-AS Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1938153 FESTO Filter regulator 529156 MS4-LFR-1/4-D7-ERM-AS Enclosure material Aluminium (die-cast) Sealant NBR 1 pc(s)

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
