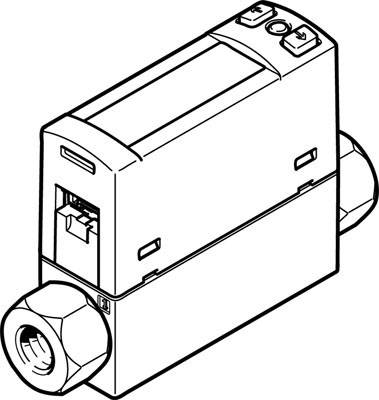

FESTO Flow sensor SFAH-50U-G18FS-PNLK-PNVBA-M8 8058473 Operating voltage (range): 22 - 26 V DC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Flow sensor
Min. operating voltage
22 V DC
Max. operating voltage
26 V DC
Type
SFAH-50U-G18FS-PNLK-PNVBA-M8
Operating voltage
22 - 26 V DC
Datasheet (PDF)
Number
Total (€ 340.34 / piece)
€ 340.34
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Analogue output 0 - 10 V, 4 to 20 mA, 1 - 5 V
- Mounting type: with accessories
- Product type
Flow sensor
- Type
SFAH-50U-G18FS-PNLK-PNVBA-M8
- Min. operating voltage
22 V DC
- Max. operating voltage
26 V DC
- Operating voltage
22 - 26 V DC
- Max. operating pressure
10 bar
IP40
- Min. ambient temperature
0 °C
- Max. ambient temperature
+50 °C
- Content
1 pc(s)
- Operating medium
According to ISO 8573-1:2010 compressed air [6:4:4];; Nitrogen
Documents & Downloads
Datasheet
Datasheet 2125075 FESTO Flow sensor SFAH-50U-G18FS-PNLK-PNVBA-M8 8058473 Operating voltage (range): 22 - 26 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2125075 FESTO Flow sensor SFAH-50U-G18FS-PNLK-PNVBA-M8 8058473 Operating voltage (range): 22 - 26 V DC 1 pc(s)
Description
Flow sensor SFAH-50 U-G18 FS-PNLK-PNVBA-M8 approval = RCM mark, CE mark (see declaration of conformity) = after EU EMC Directive, material note = RoHS compliant, measurement size = (* mass flow, * Volume Flow), Flow Direction = unidirectional
