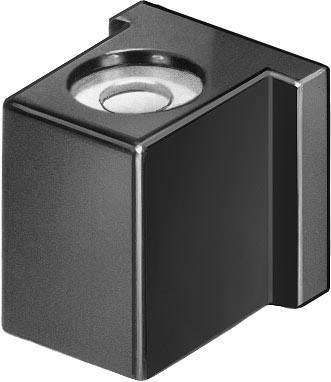

FESTO Magnet coil 175118 MSFW-230-50/60-DS-OD 230 V AC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 32.99 / piece)
€ 32.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Coil characteristics: 230 V/AC 50/60 Hz, pick-up power 9 VA, holding power 7 VA
- Material solenoid: Duroplast, copper, steel
- Product type
Magnet coil
- Operating voltage
230 V AC
- Enclosure material
Duroplast
- Manufacturer part #
175118
- Weight
55 g
IP65
- Max. ambient temperature
+40 °C
- Min. ambient temperature
-5 °C
Documents & Downloads
Datasheet
Datasheet 2116375 FESTO Magnet coil 175118 MSFW-230-50/60-DS-OD 230 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2116375 FESTO Magnet coil 175118 MSFW-230-50/60-DS-OD 230 V AC 1 pc(s)
Information
Information 2116375 FESTO Magnet coil 175118 MSFW-230-50/60-DS-OD 230 V AC 1 pc(s)
Information 2116375 FESTO Magnet coil 175118 MSFW-230-50/60-DS-OD 230 V AC 1 pc(s)
Description
Solenoid MSFW -230-50/60-DS-OD for alternating voltage, without power. Installation position=any, switching position display = no, Min. Reaction time = 10 ms, switch-on duration = 100%, power factor cos {phi} = 0.7
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
