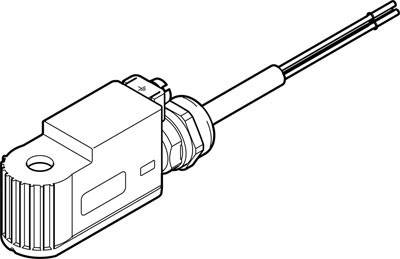

A black and white technical drawing of an electrical plug with cable. The plug is shown in detail with grooves and connection points visible.

A black and white technical drawing of an electrical plug with cable. The plug is shown in detail with grooves and connection points visible.

Image similar

FESTO

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 275.00 / piece)

€ 275.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

According to the ATEX directive

Technical specifications

Coil characteristics: 24 V/DC: 4.36 W
Material: aluminum, copper, steel, epoxy resin solenoid

Product type: Magnet coil

Operating voltage: 24 V DC

Manufacturer part #: 8059806

Type: Electrical connection: cable with an open end, 3-wire

Weight: 170 g

: IP65

Max. ambient temperature: +40 °C

Min. ambient temperature: -30 °C

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2125094 FESTO Magnet coil 8059806 VACF-B-K1-1-10-EX4-M 24 V DC 1 pc(s)

Information

Information 2125094 FESTO Magnet coil 8059806 VACF-B-K1-1-10-EX4-M 24 V DC 1 pc(s)

Description

· Without intervention in the pneumatic circuit can be changed
VACF solenoid-B-K1-1-10-EX4-M installation position=any, switching position display = no, Min. Reaction time = 10 ms, switch-on duration = 100%, coil characteristics = 24 V DC: 4,36 W

This text is machine translated.

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min

Description

· Without intervention in the pneumatic circuit can be changed
VACF solenoid-B-K1-1-10-EX4-M installation position=any, switching position display = no, Min. Reaction time = 10 ms, switch-on duration = 100%, coil characteristics = 24 V DC: 4,36 W

This text is machine translated.

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
