Name: FESTO Magnetic valve 1491985 VZWD-L-M22C-M-G14-15-V-3AP4-30 230 V AC G 1/4 Nominal width (details) 1.5 mm 2/2 way 1 pc(s
Brand: FESTO
SKU: 1943013
Availability: BackOrder

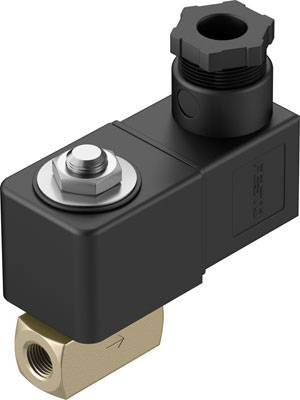

A black, rectangular valve with a rotatable black handle on top and a brass connection opening at the bottom.

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 81.99 / piece)

€ 81.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Magnetic valve VZWD-L-M22C-M-G14-15-V-3AP4-30

Technical specifications

Product type: Magnetic valve

Operating voltage: 230 V AC

Enclosure material: Brass

Connection: G 1/4

Media temperature (range): -10 up to 80 °C

Manufacturer part #: 1491985

Type: Normal nominal flow rate: 95 l/min

Sealant: FPM

Function: 2/2 normally closed mono-stable

Weight: 350 g

Max. media temperature: 80 °C

Media temperature (min.): -10 °C

Medium: Compressed air

Nominal width: 1.5 mm

Features: Electrically actuated

: IP65

Max. ambient temperature: 35 °C

Min. ambient temperature: -10 °C

Operating principle: 2/2 way

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Operating voltage

Connection

Enclosure material

FESTO Magnetic valve 1491825 VZWD-L-M22C-M-G18-10-V-1P4-50 24 V DC G 1/8 Nominal width (details) 1 mm OFF/NC 1 pc(s)

Item no:1942855

Dispatches on Tue 27 Oct

Conrad Electronic

24 V DC

G 1/8

Brass

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 71.99^*

FESTO Magnetic valve 1491826 VZWD-L-M22C-M-G18-15-V-1P4-30 24 V DC G 1/8 Nominal width (details) 1.5 mm 2/2 way 1 pc(s)

Item no:1942856

Dispatches on Tue 27 Oct

Conrad Electronic

24 V DC

G 1/8

Brass

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 71.99^*

FESTO Magnetic valve 1491829 VZWD-L-M22C-M-G14-15-V-1P4-30 24 V DC G 1/4 Nominal width (details) 1.5 mm OFF/NC 1 pc(s)

Item no:1942859

Dispatches on Tue 27 Oct

Conrad Electronic

24 V DC

G 1/4

Brass

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 81.99^*

FESTO Magnetic valve 1491830 VZWD-L-M22C-M-G14-20-V-1P4-15 24 V DC G 1/4 Nominal width (details) 2 mm Direct action 1 pc(s)

Item no:1942860

Dispatches on Tue 27 Oct

Conrad Electronic

24 V DC

G 1/4

Brass

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 81.99^*

FESTO Magnetic valve 1491831 VZWD-L-M22C-M-G14-25-V-1P4-8 24 V DC G 1/4 Nominal width (details) 2.5 mm OFF/NC 1 pc(s)

Item no:1942861

Dispatches on Tue 27 Oct

Conrad Electronic

24 V DC

G 1/4

Brass

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 81.99^*

FESTO Magnetic valve 1491832 VZWD-L-M22C-M-G18-10-V-1P4-90 24 V DC G 1/8 Nominal width (details) 1 mm OFF/NC 1 pc(s)

Item no:1942862

Dispatches on Mon 2 Nov

Conrad Electronic

24 V DC

G 1/8

Brass

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 99.99^*

FESTO Magnetic valve 1491833 VZWD-L-M22C-M-G18-15-V-1P4-85 24 V DC G 1/8 Nominal width (details) 1.5 mm 2/2 way 1 pc(s)

Item no:1942863

Dispatches on Mon 2 Nov

Conrad Electronic

24 V DC

G 1/8

Brass

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 99.99^*

FESTO Magnetic valve 1491834 VZWD-L-M22C-M-G18-20-V-1P4-40 24 V DC G 1/8 Nominal width (details) 2 mm OFF (spring shut) 1 pc(s)

Item no:1942864

Dispatches on Tue 27 Oct

Conrad Electronic

24 V DC

G 1/8

Brass

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 99.99^*

FESTO Magnetic valve 1491835 VZWD-L-M22C-M-G18-25-V-1P4-22 24 V DC G 1/8 Nominal width (details) 2.5 mm 2/2 way 1 pc(s)

Item no:1942865

Dispatches on Tue 27 Oct

Conrad Electronic

24 V DC

G 1/8

Brass

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 99.99^*

FESTO Magnetic valve 1491836 VZWD-L-M22C-M-G18-30-V-1P4-15 24 V DC G 1/8 Nominal width (details) 3 mm Direct action 1 pc(s)

Item no:2804121

Dispatches on Wed 28 Oct

Conrad Electronic

24 V DC

G 1/8

Brass cast

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 99.99^*

Documents & Downloads

Datasheet

Datasheet 1943013 FESTO Magnetic valve 1491985 VZWD-L-M22C-M-G14-15-V-3AP4-30 230 V AC G 1/4 Nominal width (details) 1.5 mm 2/2 way 1 pc(s

User & Safety Instructions

User & Safety Instructions 1943013 FESTO Magnetic valve 1491985 VZWD-L-M22C-M-G14-15-V-3AP4-30 230 V AC G 1/4 Nominal width (details) 1.5 mm 2/2 way 1 pc(s

Information

Information 1943013 FESTO Magnetic valve 1491985 VZWD-L-M22C-M-G14-15-V-3AP4-30 230 V AC G 1/4 Nominal width (details) 1.5 mm 2/2 way 1 pc(s

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
