Name: FESTO Magnetic valve 197031 MHP1-M5H-3/2O-M3-TC 12 V DC M3 Nominal width (details) 0.7 mm 5/2 or 3/2 way 1 pc(s)
Brand: FESTO
SKU: 1941225
Availability: BackOrder

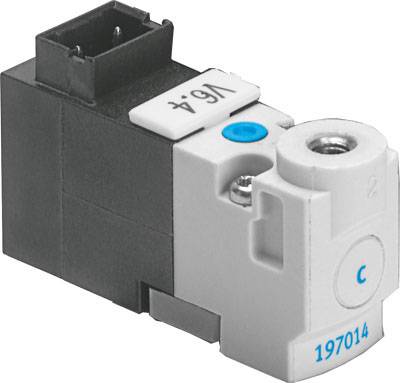

A valve marked 'V64' and numbered '197014', black and white with a blue dot, is used for controlling liquids or gases.

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 45.99 / piece)

€ 45.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Magnetic valve MHP1-M5H-3/2O-M3-TC

Technical specifications

Electrical connection: Plug

Product type: Magnetic valve

Operating voltage: 12 V DC

Max. operating pressure: 6 bar

Enclosure material: PA
PPS

Connection: M3

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Media temperature (range): -5 up to 40 °C

Manufacturer part #: 197031

Type: Normal nominal flow rate: 10 l/min

Operating pressure (min.): 0 bar

Sealant: FPM
HNBR
NBR

Function: 3/2 normally open mono-stable

Weight: 10 g

Max. media temperature: 40 °C

Media temperature (min.): -5 °C

Medium: Compressed air

Nominal width: 0.7 mm

Features: Electrically actuated

Width: 10 mm

QNn value: 10 l/min

Switching frequency: 20 Hz

: IP40

Max. ambient temperature: 40 °C

Min. ambient temperature: -5 °C

Operating principle: 5/2 or 3/2 way

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Connection

Max. operating pressure

Enclosure material

FESTO Magnetic valve 197031 MHP1-M5H-3/2O-M3-TC 12 V DC M3 Nominal width (details) 0.7 mm 5/2 or 3/2 way 1 pc(s)

Item no:1941225

Available soon

Conrad Electronic

This article

6 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 45.99^*

FESTO Magnetic valve 196122 MHP2-M1H-3/2G-M5 Connector plate, M5 Nominal width (details) 2 mm 5/2 or 3/2 way 1 pc(s)

Item no:1941088

Dispatches on Mon 2 Nov

Conrad Electronic

Connector plate

8 bar

Zinc (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 81.99^*

FESTO Magnetic valve 196123 MHP2-MS1H-3/2G-M5 Connector plate, M5 Nominal width (details) 2 mm 5/2 or 3/2 way 1 pc(s)

Item no:1941089

Dispatches on Mon 2 Nov

Conrad Electronic

Connector plate

8 bar

Zinc (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

FESTO Magnetic valve 196142 MHP2-M1H-3/2O-M5 24 V DC M5 Nominal width (details) 2 mm OFF/NO 1 pc(s)

Item no:1941102

Dispatches on Mon 2 Nov

Conrad Electronic

8 bar

Zinc (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 81.99^*

FESTO Magnetic valve 196143 MHP2-MS1H-3/2O-M5 M5 Nominal width (details) 2 mm 5/2 or 3/2 way 1 pc(s)

Item no:1941103

Dispatches on Mon 2 Nov

Conrad Electronic

8 bar

Zinc (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

FESTO Magnetic valve 197009 MHP1-M4H-3/2G-M3-HC 5 V DC Connector plate, M3 Nominal width (details) 0.65 mm OFF/NC 1 pc(s)

Item no:1941203

Available soon

Conrad Electronic

Connector plate

8 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 45.99^*

FESTO Magnetic valve 197010 MHP1-M5H-3/2G-M3-HC 12 V DC/AC Connector plate, M3 Nominal width (details) 0.65 mm 5/2 or 3/2 way 1 pc(s)

Item no:1941204

Available soon

Conrad Electronic

Connector plate

8 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 45.99^*

FESTO Magnetic valve 197011 MHP1-M1H-3/2G-M3-HC 24 V DC Connector plate, M3 Nominal width (details) 0.65 mm OFF/NC 1 pc(s)

Item no:1941205

Dispatches on Mon 2 Nov

Conrad Electronic

Connector plate

8 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 45.99^*

FESTO Magnetic valve 197012 MHP1-M4H-3/2G-M3-TC Connector plate, M3 Nominal width (details) 0.65 mm 5/2 or 3/2 way 1 pc(s)

Item no:1941206

Dispatches on Mon 2 Nov

Conrad Electronic

Connector plate

8 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 45.99^*

FESTO Magnetic valve 197013 MHP1-M5H-3/2G-M3-TC Connector plate, M3 Nominal width (details) 0.65 mm OFF/NC 1 pc(s)

Item no:1941207

Available soon

Conrad Electronic

Connector plate

8 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 45.99^*

Documents & Downloads

Datasheet

Datasheet 1941225 FESTO Magnetic valve 197031 MHP1-M5H-3/2O-M3-TC 12 V DC M3 Nominal width (details) 0.7 mm 5/2 or 3/2 way 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1941225 FESTO Magnetic valve 197031 MHP1-M5H-3/2O-M3-TC 12 V DC M3 Nominal width (details) 0.7 mm 5/2 or 3/2 way 1 pc(s)

Information

Information 1941225 FESTO Magnetic valve 197031 MHP1-M5H-3/2O-M3-TC 12 V DC M3 Nominal width (details) 0.7 mm 5/2 or 3/2 way 1 pc(s)

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
