Name: FESTO Magnetic valve 197049 MHP1-M5H-2/2G-M3-TC 12 V DC Connector plate, M3 Nominal width (details) 0.9 mm OFF (spring s
Brand: FESTO
SKU: 1941243
Availability: BackOrder

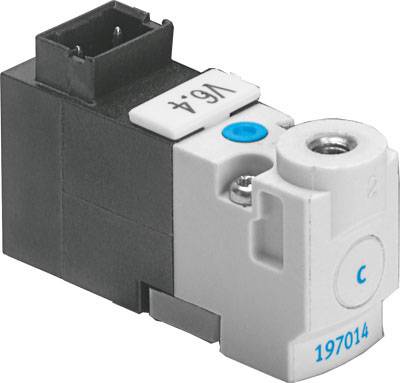

'An electromagnetic valve module with black and white components. It bears the marking 'V6.4' and the number '197014'.'

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 45.99 / piece)

€ 45.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Magnetic valve MHP1-M5H-2/2G-M3-TC

Technical specifications

Electrical connection: Plug

Product type: Magnetic valve

Operating voltage: 12 V DC

Max. operating pressure: 2 bar

Enclosure material: PA
PPS

Connection: Connector plate
M3

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Media temperature (range): -5 up to 40 °C

Manufacturer part #: 197049

Type: Normal nominal flow rate: 14 l/min

Operating pressure (min.): -0.9 bar

Sealant: FPM
HNBR
NBR

Function: 2/2 normally closed mono-stable

Weight: 10 g

Max. media temperature: 40 °C

Media temperature (min.): -5 °C

Medium: Compressed air

Nominal width: 0.9 mm

Width: 10 mm

QNn value: 14 l/min

Switching frequency: 20 Hz

: IP40

Max. ambient temperature: 40 °C

Min. ambient temperature: -5 °C

Operating principle: OFF (spring shut)

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Connection

Max. operating pressure

Enclosure material

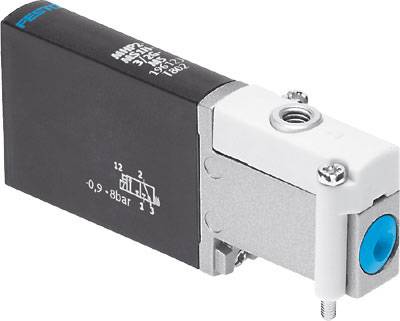

FESTO Magnetic valve 196122 MHP2-M1H-3/2G-M5 Connector plate, M5 Nominal width (details) 2 mm 5/2 or 3/2 way 1 pc(s)
