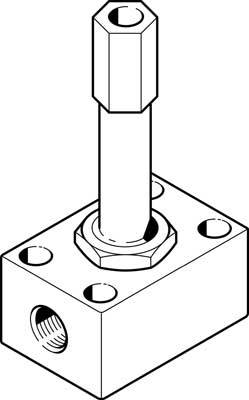

Technical drawing of a cylindrical component on a rectangular base with screw holes and a side opening.

Technical drawing of a cylindrical component on a rectangular base with screw holes and a side opening.

Image similar

FESTO

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 149.99 / piece)

€ 149.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Technical specifications

Product type: Magnetic valve

Max. operating pressure: 7 bar

Connection: G 1/8

Operating temperature: -10 °C (min)

Media temperature (range): -10 up to +60 °C

Manufacturer part #: 2187

Operating pressure (min.): -0.95 bar

Min. operating temperature: -10 °C

Function: 2/2 normally closed mono-stable

Max. media temperature: +60 °C

Media temperature (min.): -10 °C

Medium: Compressed air

Nominal width: 4 mm

Features: P port connector (G1/8)

QNn value: 300 l/min

: IP65

Max. ambient temperature: +40 °C

Min. ambient temperature: -5 °C

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2804122 FESTO Magnetic valve 2187 MC-2-1/8 G 1/8 Nominal width (details) 4 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2804122 FESTO Magnetic valve 2187 MC-2-1/8 G 1/8 Nominal width (details) 4 mm 1 pc(s)

Description

Solenoid valve MC-2-1/8 valve function=2/2 closed mono-stable, actuation type=electrical, normal nominal flow=300 l/min, operating pressure MPa=-0.095 - 0.7 MPa, operating pressure=-0.95 - 7 bar

This text is machine translated.

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min

Description

Solenoid valve MC-2-1/8 valve function=2/2 closed mono-stable, actuation type=electrical, normal nominal flow=300 l/min, operating pressure MPa=-0.095 - 0.7 MPa, operating pressure=-0.95 - 7 bar

This text is machine translated.

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
