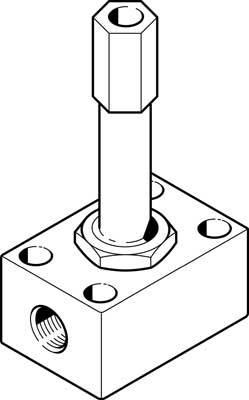

Technical drawing of a cubic component with a cylindrical rod in the centre, nuts and screw holes on the top surface.

Technical drawing of a cubic component with a cylindrical rod in the centre, nuts and screw holes on the top surface.

Image similar

FESTO

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 159.99 / piece)

€ 159.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Technical specifications

Product type: Magnetic valve

Operating voltage: 110 V DC
220 V DC
42 V DC
240 V DC
24 V DC
12 V DC
96 V DC

Max. operating pressure: 7 bar

Connection: G 1/8

Operating temperature: -10 °C (min)

Media temperature (range): -10 up to +60 °C

Manufacturer part #: 2211

Operating pressure (min.): 0 bar

Min. operating temperature: -10 °C

Function: 3/2 normally open mono-stable

Max. media temperature: +60 °C

Media temperature (min.): -10 °C

Medium: Compressed air

Nominal width: 2.5 mm

Features: Electrically actuated

QNn value: 70 l/min

: IP65

Max. ambient temperature: +40 °C

Min. ambient temperature: -5 °C

Operating principle: Direct action

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2804124 FESTO Magnetic valve 2211 MOCH-3-1/8 110 V DC, 220 V DC, 42 V DC, 240 V DC, 24 V DC, 12 V DC, 96 V DC G 1/8 Nominal widt

User & Safety Instructions

User & Safety Instructions 2804124 FESTO Magnetic valve 2211 MOCH-3-1/8 110 V DC, 220 V DC, 42 V DC, 240 V DC, 24 V DC, 12 V DC, 96 V DC G 1/8 Nominal widt

Description

MOH-3-1/8 solenoid valve with manual auxiliary control. Valve function=3/2 open mono-stable, actuation type=electrical, normal nominal flow=70 l/min, operating pressure MPa=0 - 0.7 MPa, operating pressure=0 - 7 bar

This text is machine translated.

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min

Description

MOH-3-1/8 solenoid valve with manual auxiliary control. Valve function=3/2 open mono-stable, actuation type=electrical, normal nominal flow=70 l/min, operating pressure MPa=0 - 0.7 MPa, operating pressure=0 - 7 bar

This text is machine translated.

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
